Tenda O1 User Manual

44
4.7 Example of WISP mode
Network requirement
You live in countryside, and it is not convenient for you to connect the nearest ISP CPE using
Ethernet cables. So you want to extend the ISP hotspot to your home in wireless manner.
Solution
Set the CPE to WISP mode, and bridge it to the ISP hotspot.
Assume that the SSID and password of the ISP hotspot are:
− SSID: WiFi_123456
− Password: 12345678
− Internet Connection Type: PPPoE
User name: admin
Password: admin

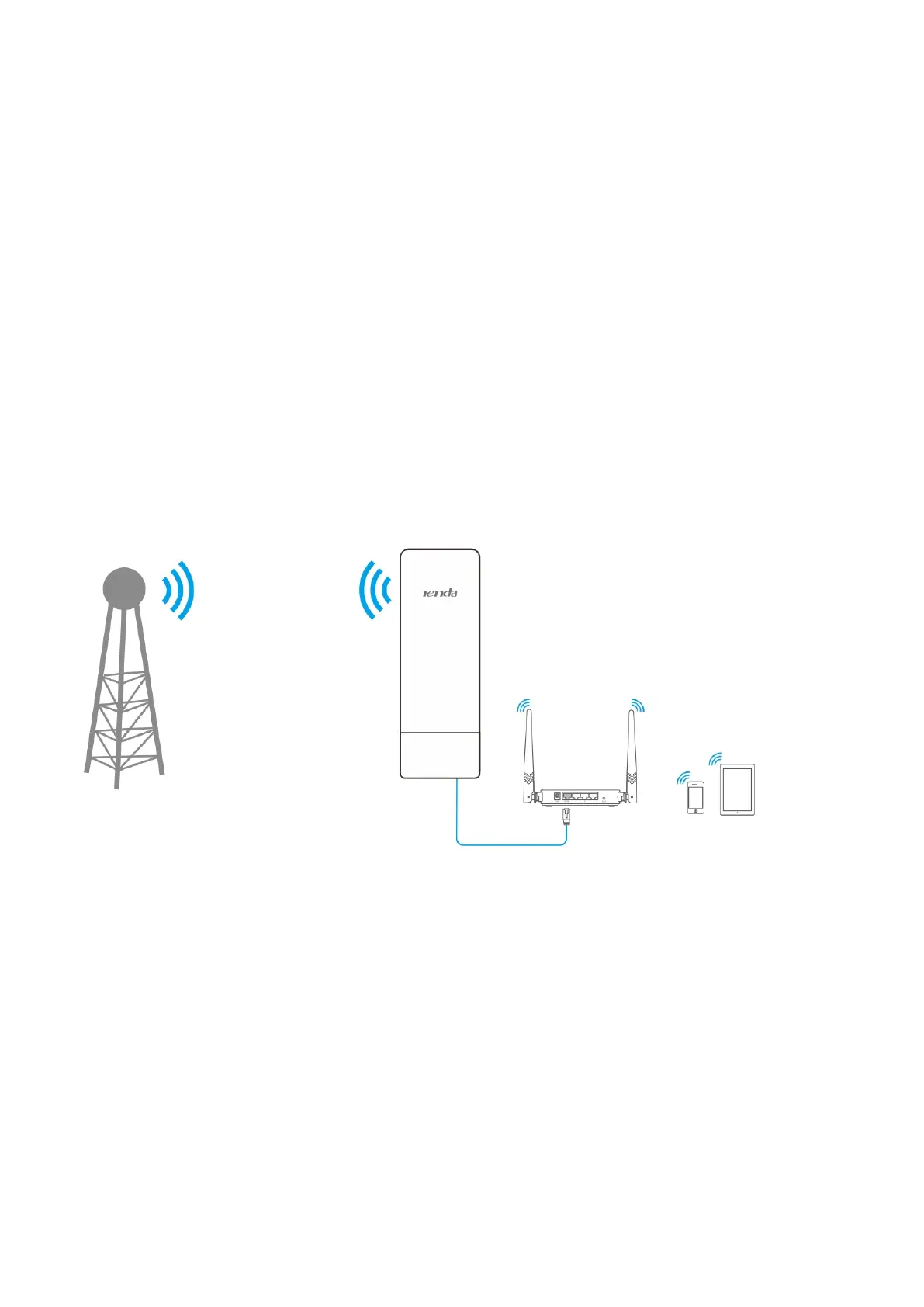

Network topology
SSID: WiFi_123456
Password: 12345678
WISP mode
ISP hotspot
Router

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
