Tenda O1 User Manual

57
4.9 P2MP mode
In P2MP mode, this device connects 2 or more (this device supports 4 at most) wired networks
with a wireless link, but cannot be connected to wireless clients.
The configuration procedure of P2MP mode is similar with Repeater mode. In the following
example, the CPE works in P2MP mode, and bridges to four CPEs work in Repeater mode.
Application scenario

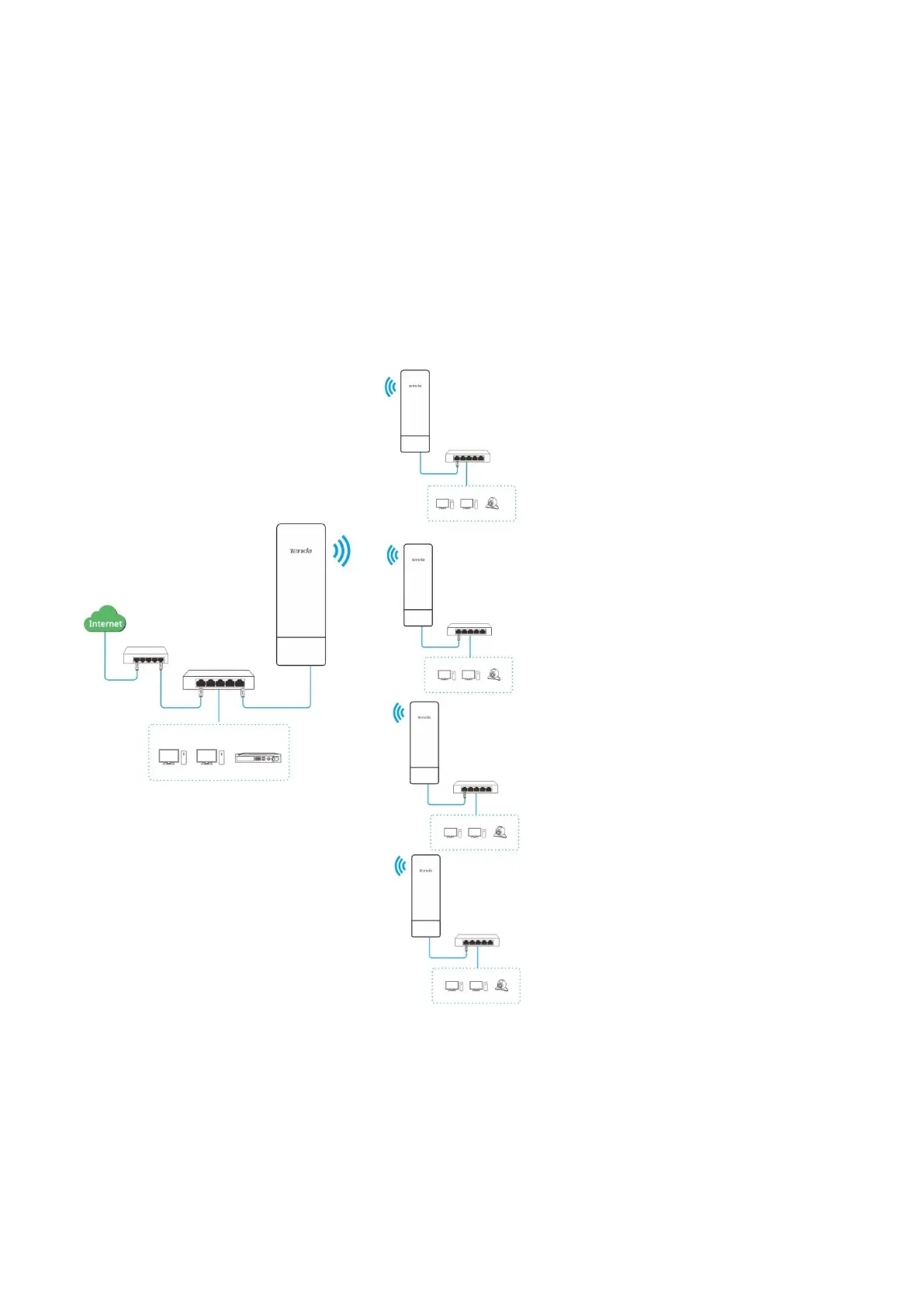

The CPE is used to combine two local networks into one in wireless manner. The network topology
is shown as below:
Assume that the related parameters are shown as follows:
CPE1:
− IP Address: 192.168.2.1
− SSID: Tenda_1
− Channel: 165
− Security Mode: None
CPE1 in P2MP mode
CPE2 in Repeater mode
CPE3 in Repeater mode
Switch
Switch
Switch
CPE4 in Repeater mode
CPE5 in Repeater mode

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
