Tenda O1 User Manual

48
4.8 Repeater mode
In Repeater mode, this device connects 2 or more (this device supports 4 at most) wired networks
with a wireless link, and can be connected with both wired and wireless clients. To use this
function, the peer AP is required to support WDS function. Repeater mode is used to achieve
communication between multiple offices of an enterprise in a city.
The CPE in Repeater mode can works with the CPE in Repeater or P2MP mode. It supports one to
four bridging at most.
Application scenario

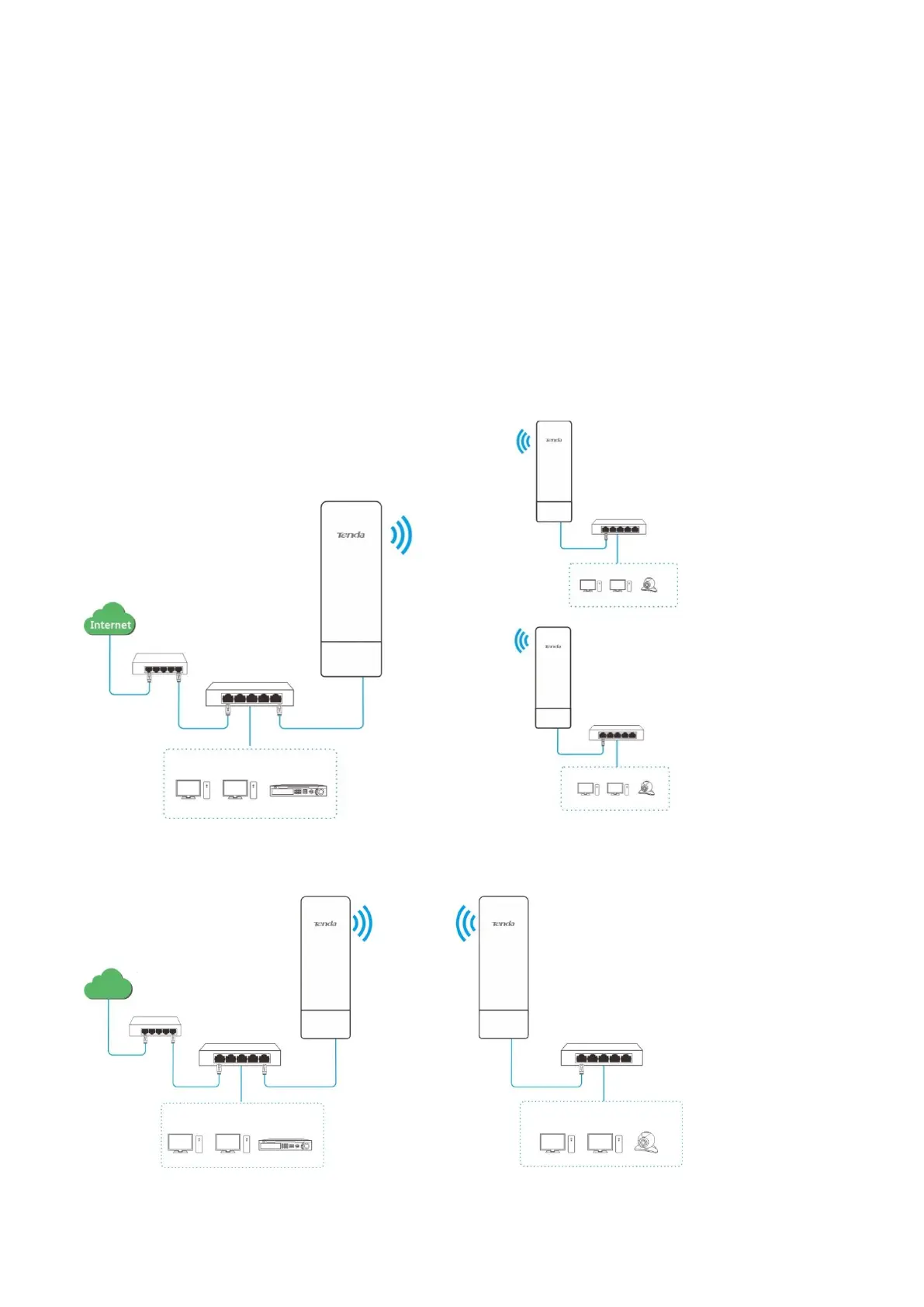

You want to combine multiple wired networks into one in wireless manner. The network topology
is shown as below:
Configuration procedures of peer to peer briding
CPE1 in Repeater mode
CPE2 in Repeater mode
CPE3 in Repeater mode
Switch
Switch
Switch
CPE2: Repeater mode
CPE1: Repeater mode
Switch
Switch
Router
Internet

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
