Tenda O1 User Manual

29
4.3 Example of AP mode and client mode
Network requirement
You want to use two CPEs to establish a CCTV surveillance network.
A CPE can support several IP cameras. The maximum number of IP cameras can be calculated with the
following formula:
Number of IP cameras=Transmitted/received rate of the CPE / Data rate of IP camera
Solution
− Set CPE1 to the AP mode, and connect it to the NVR.
− Set CPE2 to the Client mode, and connect it to IP cameras.

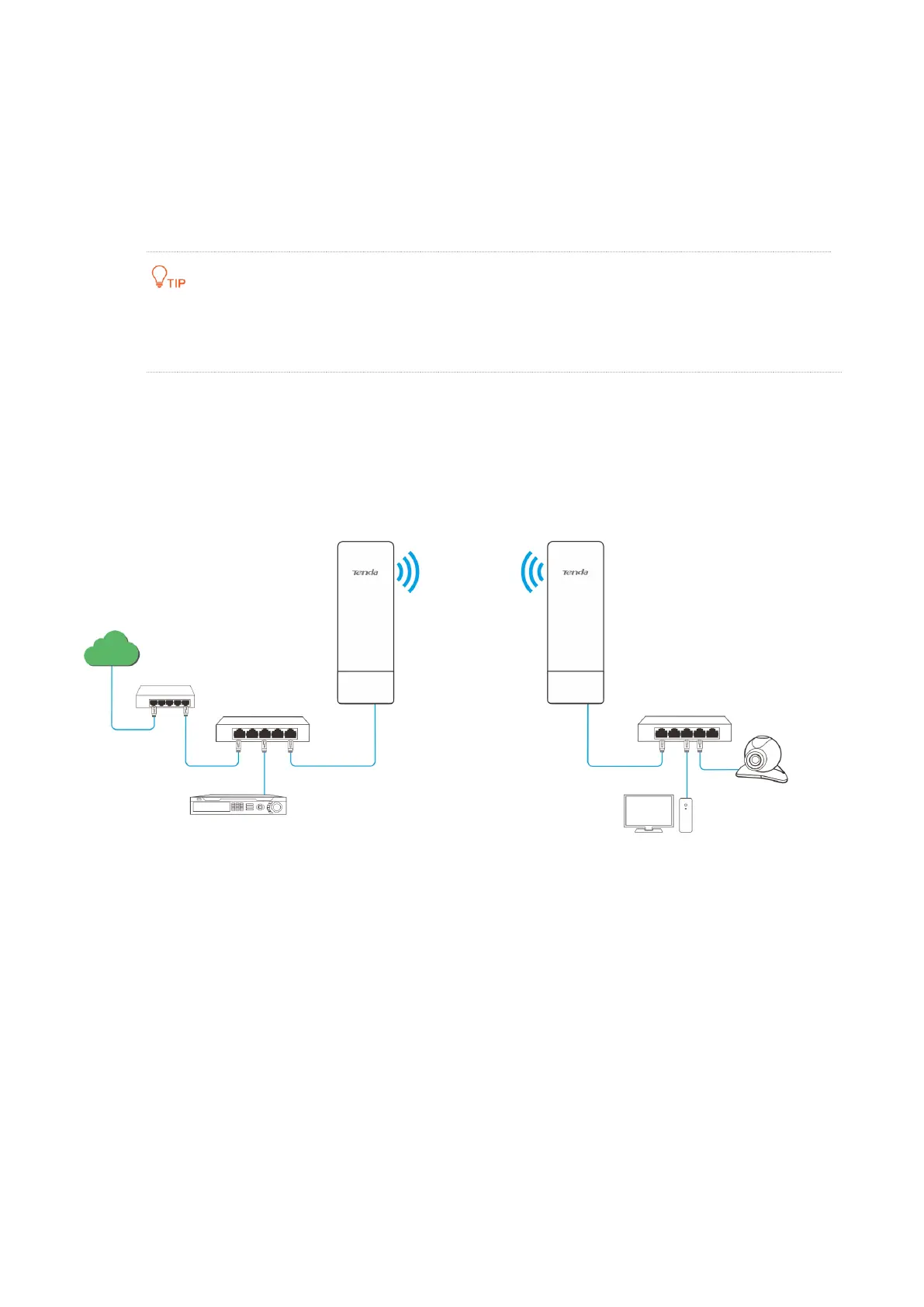

Network topology
Configuration procedures
Step 1 Set CPE1 to AP mode.
1. Log in to the web UI of CPE1, and choose Quick Setup to enter the configuration page.
2. Select AP mode and click Next.
CPE1: AP mode
CPE2: Client mode
Switch
Switch
IP camera
Computer
NVR
Router
Internet

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
