ADS1298ECG-FE/ADS1198ECG-FE
3.4.5 Register Map (ADC Register)
The Register Map tab is a helpful debug feature that allows the user to view the state of all the internal
registers. This tab is illustrated in Figure 16. Refresh Registers control updates the register map values
with the current register settings of the ADS1298.
NOTE: Figure 16 shows registers for ADS1298. The RESP register is not present for the ADS1198.

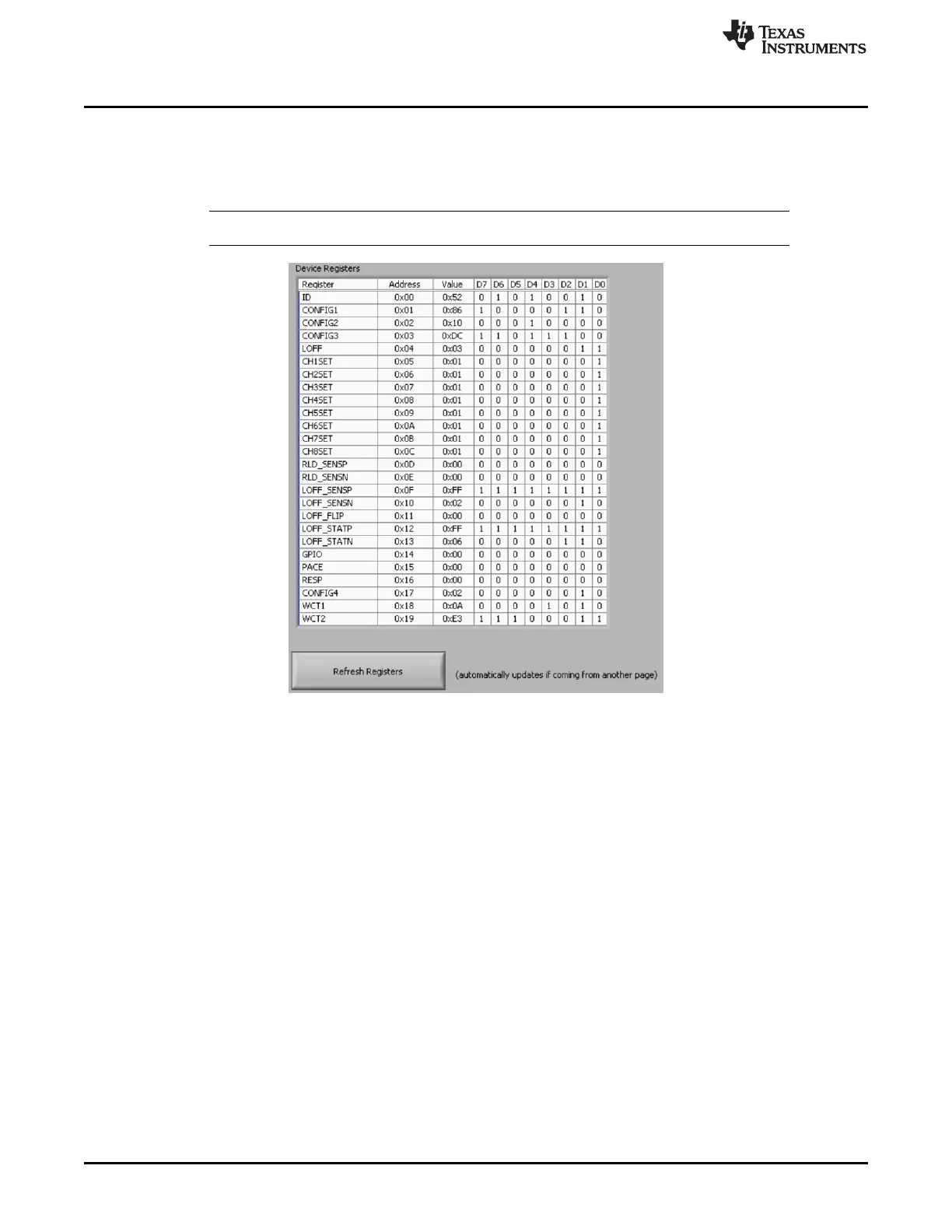

Figure 16. Device Registers Settings
