Figure 35 shows an example waveform created by a Fluke Medsim 300B processed by the ADS1298 at a
data rate of 8kSPS. Using higher data rates increases power consumption because all channels must
sample at this data rate simultaneously; thus, the PACE buffers offer the flexibility to process PACE
signals separately from the ADS1298. The signal must be AC coupled to obtain the waveform\ shown
below.

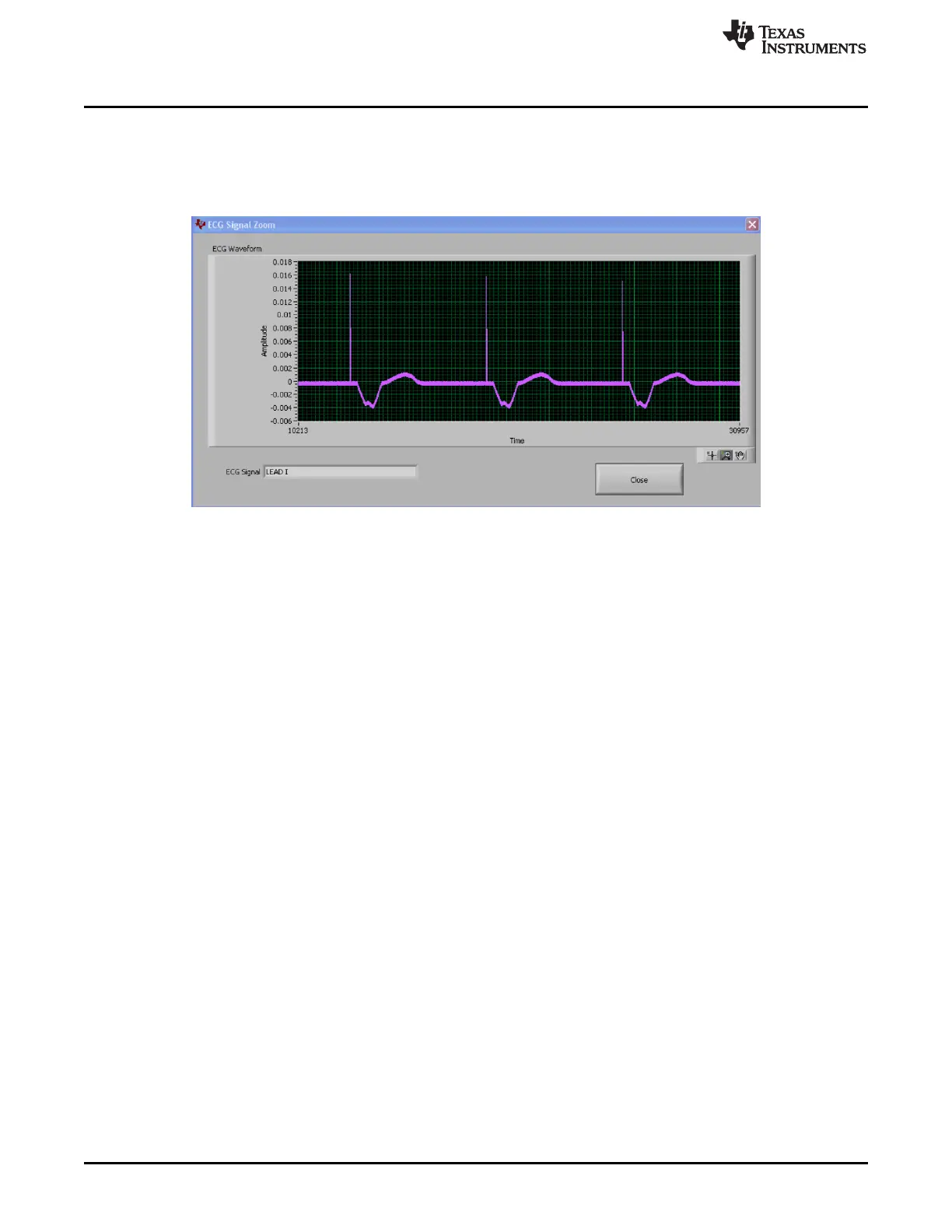

Figure 35. Digitization of PACE Signal Using ADS1298
