Texas Instruments ADS1298ECG-FE User Manual

ECG Cable Details www.ti.com
46
SBAU171D–May 2010–Revised January 2016
Submit Documentation Feedback
Copyright © 2010–2016, Texas Instruments Incorporated
Schematics, BOM, Layout, and ECG Cable Details
A.5 ECG Cable Details

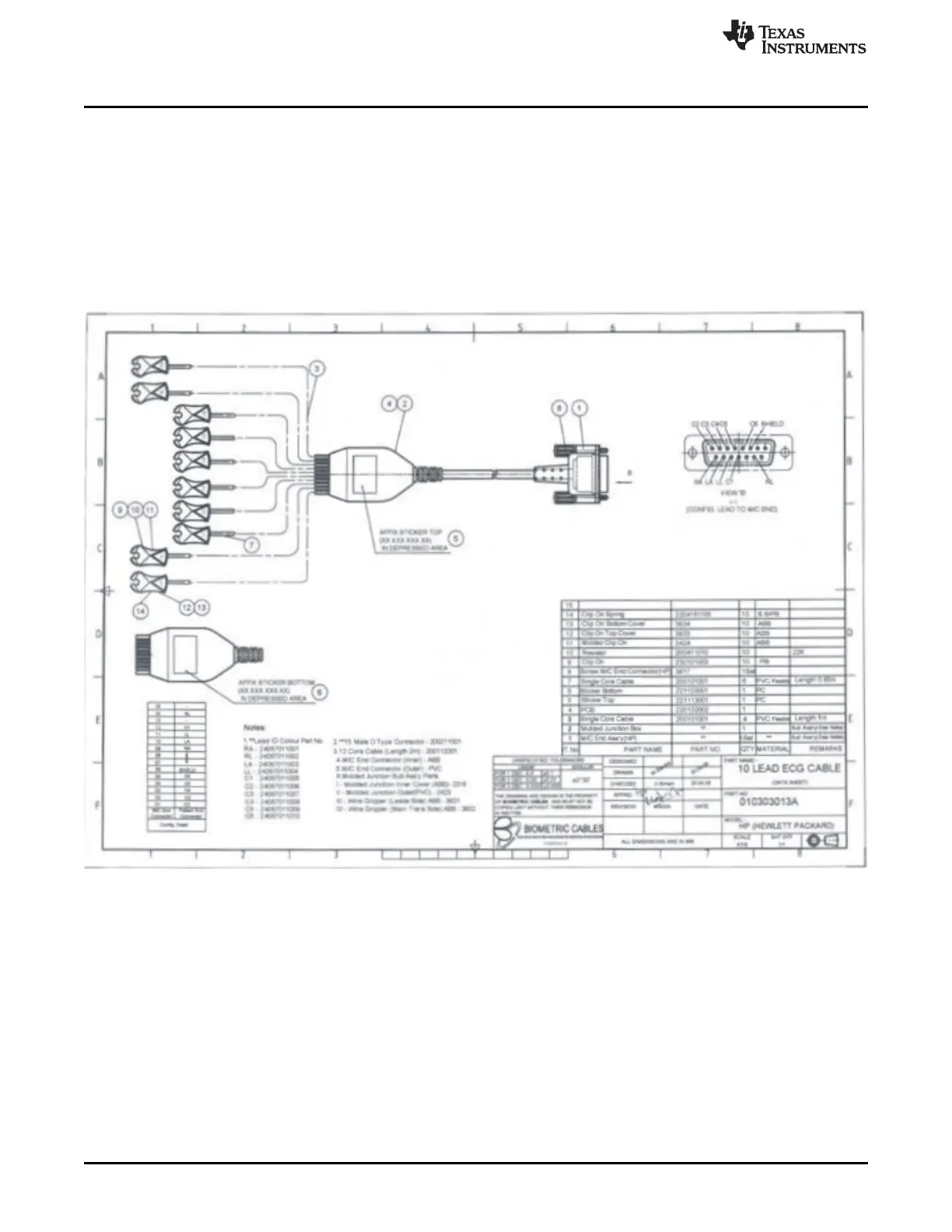

Figure 44 shows the details of the recommended ECG cable.
Cable details:
• 10-lead ECG cable for Philips/HP-snap, button (Part No: 010302013);
http://www.biometriccables.com/index.php?productID=692
• 10-lead ECG cable for Philips/HP-Clip-on type (Part No: 010303013A);
http://www.biometriccables.com/index.php?productID=693
Another compatible cable for the ADS1298ECG-FE: HP/Philips/Agilent-compatible 10-lead ECG cable.
Figure 44. ECG Cable Schematic
