Temperature ( C) =°
Temperature Reading ( V) 145,300 Vm - m
490 V/ Cm °
+ 25 C°
ADS1x98ECG-FE Input Signals
www.ti.com
30
SBAU171D–May 2010–Revised January 2016
Submit Documentation Feedback
Copyright © 2010–2016, Texas Instruments Incorporated
ADS1298ECG-FE/ADS1198ECG-FE
4.3 Temperature Sensor

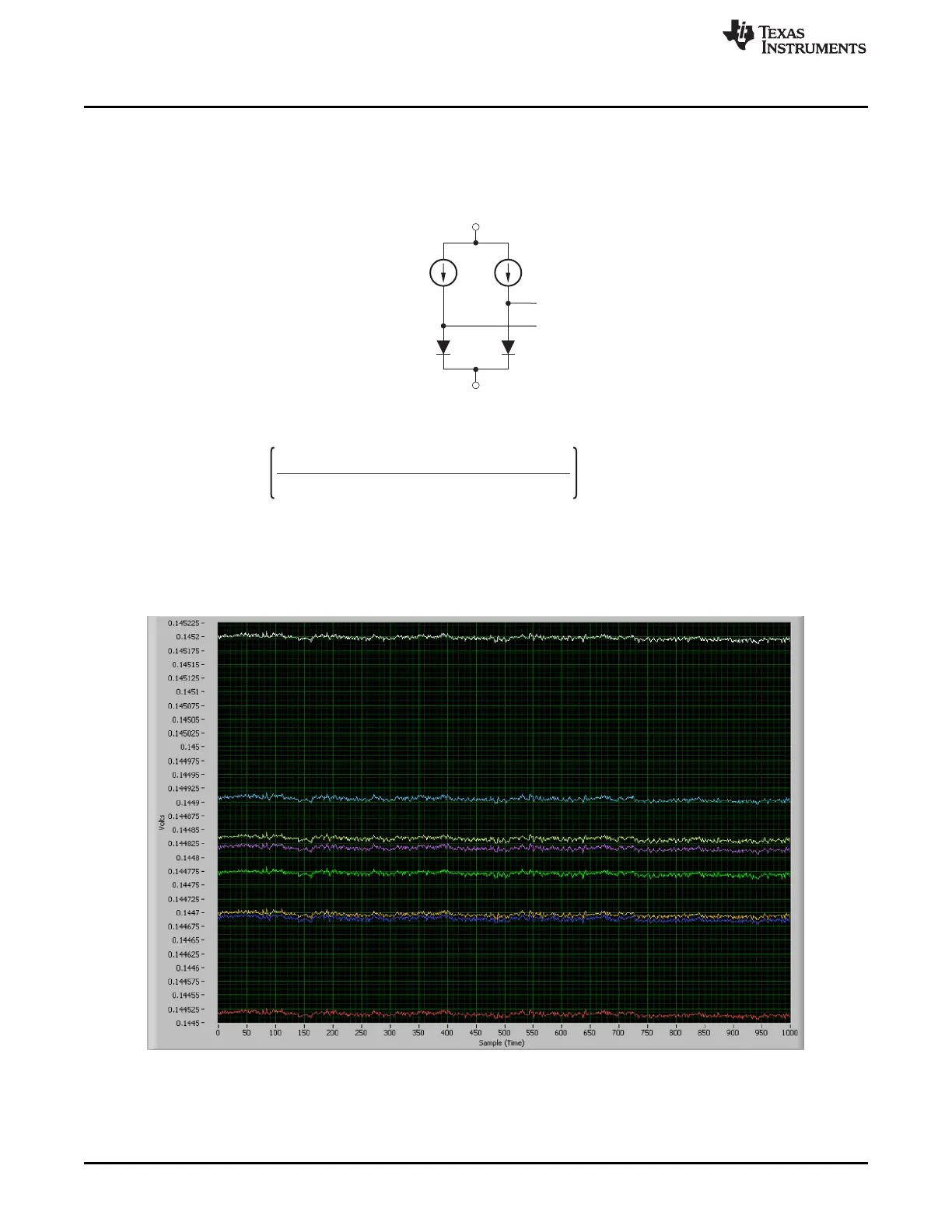

The internal temperature sensor on the ADS1298 is shown in Figure 32. When the internal MUX is routed
to the temperature sensor input, the ADC internal temperature is calculated from the ADC output voltage
using Equation 1.
Figure 32. Internal Temperature Sensor
(1)
The ADC can be configured to give a temperature reading by selecting the Temperature Sensor option on
the Channel Control Registers GUI (see Section 3.4.2.2) and verified using the Scope tab as shown in
Figure 33. The number 0.1447V (on the y-axis) can be calculated as a temperature using Equation 1:
Temperature = (0.1447 – 0.145300) / 0.00049 + 25 = 23.78°C
A more detailed description of the Scope tab is provided in Section 3.5.1.
Figure 33. Eight-Channel Read of Internal Temperature
