INSTALLATION
7 INSTALLATION7 INSTALLATION
7.1 PACKAGING
The unit is packed in a cardboard box; this protects it for shipping and storage in normal environ-
mental conditions.
Do not dispose of or dump the packaging, but keep it for future use in moving the relay.
The device must be stored within the temperature range indicated in the technical specications;
the relative huimidity must not give rise to the formation of condensation or ice.
7.2 ASSEMBLY
Assembly
Assembly the unit as follows:
• open the cover
• secure the SME-I panel by tting the four included M5 screws to the panel, after drilling it with the
template given in the assembly drawings.

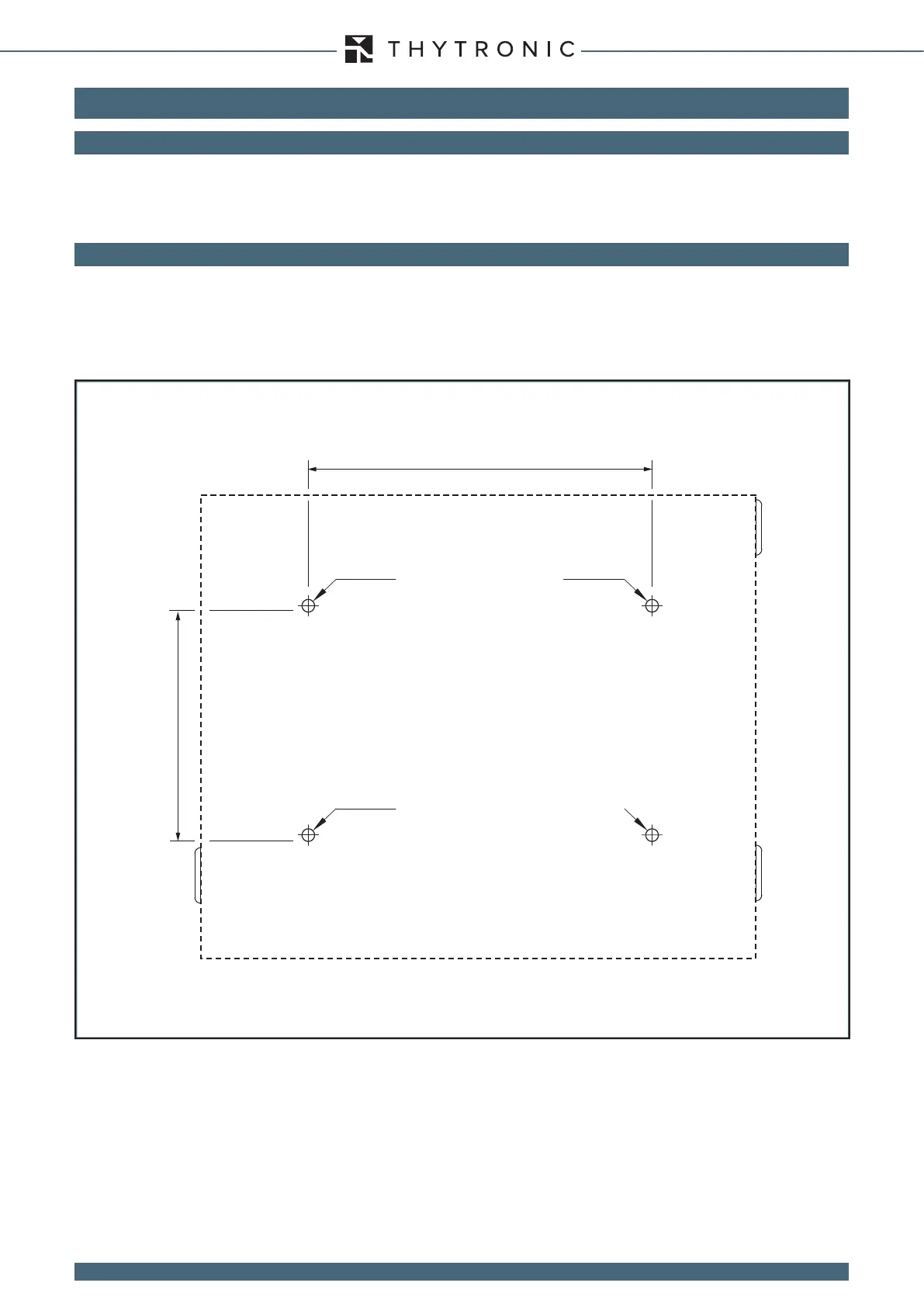

Assembly
100mm
150mm
Ø 5.5 mm Ø 5.5 mm
Ø 5.5 mm
Ø 5.5 mm
