Toyota 1KZ-TE Repair Manual

EM0RR--02
A10775
Intake Pipe
z Gasket
Gasket
Cylinder Head Cover
No.2 Air Hose
No.1 Camshaft
T iming Pulley
T iming Belt Cover
Clip
Timing Belt
Gasket
No.2 Camshaft Timing Pulley Flange
No.2 Camshaft Timing Pulley
Timing Belt
Tensioner
Idler Pulley
35 (350, 25)
13 (130, 9)
13 (130, 9)
98 (1,000, 72)
12 (120, 9)
9 (90, 78 in.∙lbf)
N∙m (kgf∙cm, ft∙lbf) : Specified torque
z Non--reusable part
Oil Filler Cap
Clamp
Clamp
Accelerator
Cable Bracket
PCV Hose
PCV Pipe
Clip
Set Key
VSV for No.1 Intake
Constrictor Control
VSV No.2
for Intake
Constrictor
Control
VSV for No.1 Intake
Constrictor Control
Connector
VSV for No.2 Intake
Constrictor Control
Connector
Vacuum Hose
20 (204, 15)
x10
Seal
W asher
EM--12

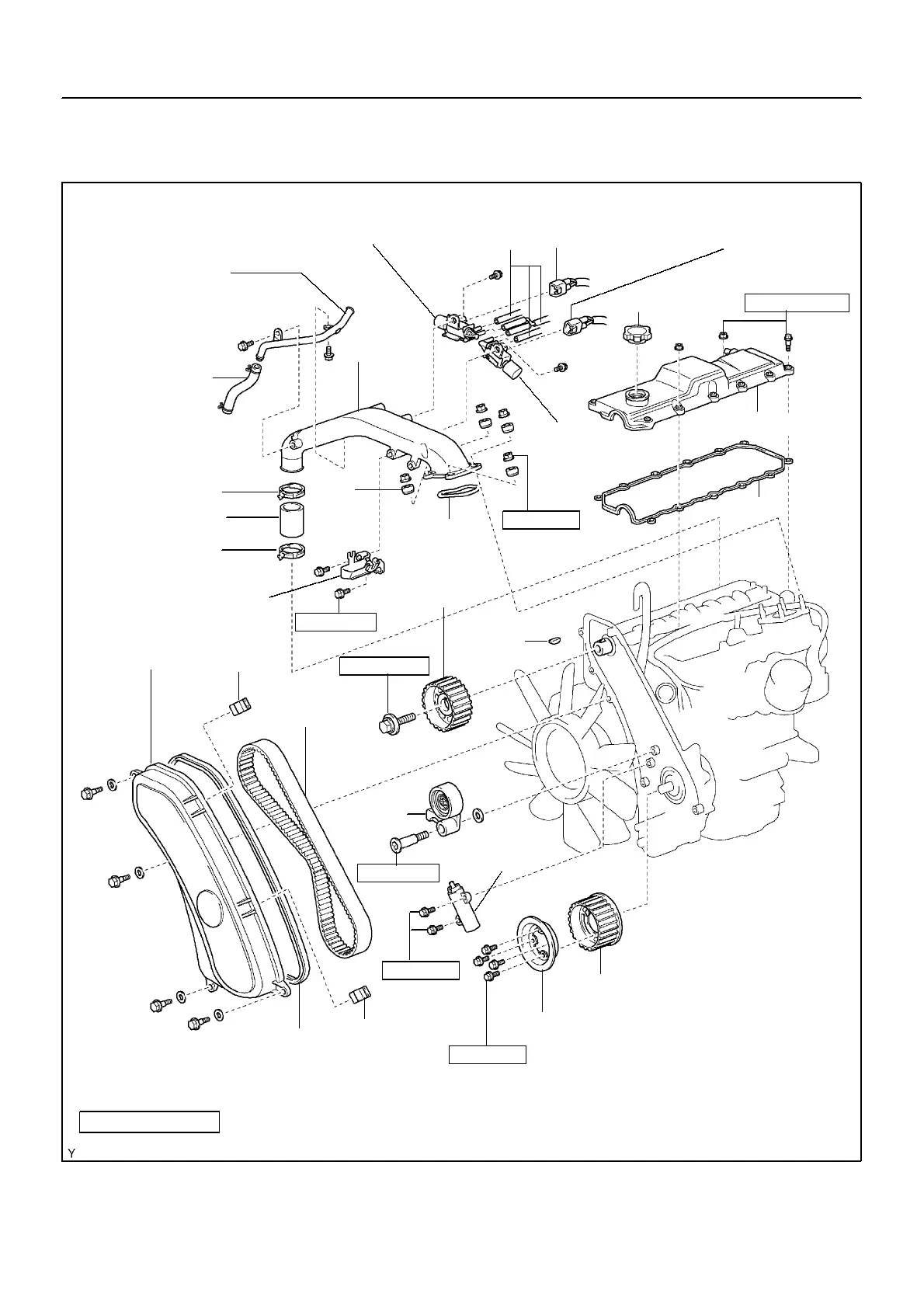

--ENGINE MECHANICAL TIMING BELT
TIMING BELT
COM P ONE NT S
