EM0RW-- 02
P11678
P11675
Vacuum Pump
P11664
SST
SST
EM--24

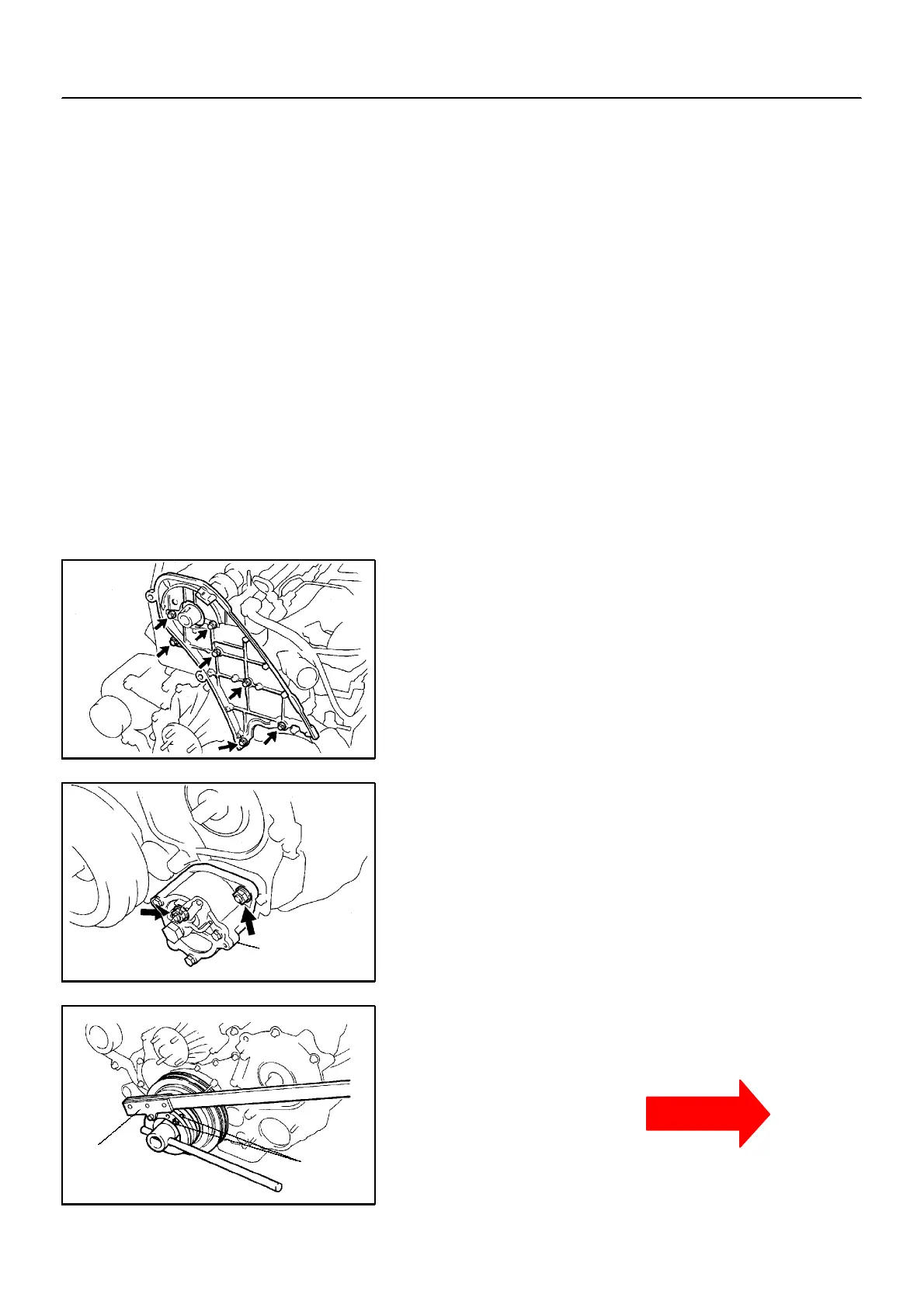

--ENGINE MECHANICAL TIMING GEAR
RE M O VAL
NOTICE:
When removing the crankshaft pulley and timing gear as
the timing belt is off and the valve interferes with the piston,
never,turn the crankshaft to the right beyond the dead point
above the No.4 cylinder.
1 . RE MO V E TI MI NG BE LT AND P ULLE Y S
(See page EM -- 13)
2. RE MO V E DRI V E BE LT, FAN AND WATE R P UMP
PULLEY (See page CO -- 5 )
3 . RE MO V E CAMS HAFT O I L S E AL RE TAI NE R
Remove the 7 bolts and camshaft oil seal retainer.
4 . RE MO V E VACUUM P UMP
(a) Remove the vacuum hose.
(b) Remove the 2 nuts and vacuum pump.
(c) Remove 2 the O--rings.
5 . RE MO V E CRANKS HAFT P ULLE Y
(a) Using SST, remove the pulley bolt and plate.
SST 09213 -- 58012 x 2, 09330 -- 00021
