V03783

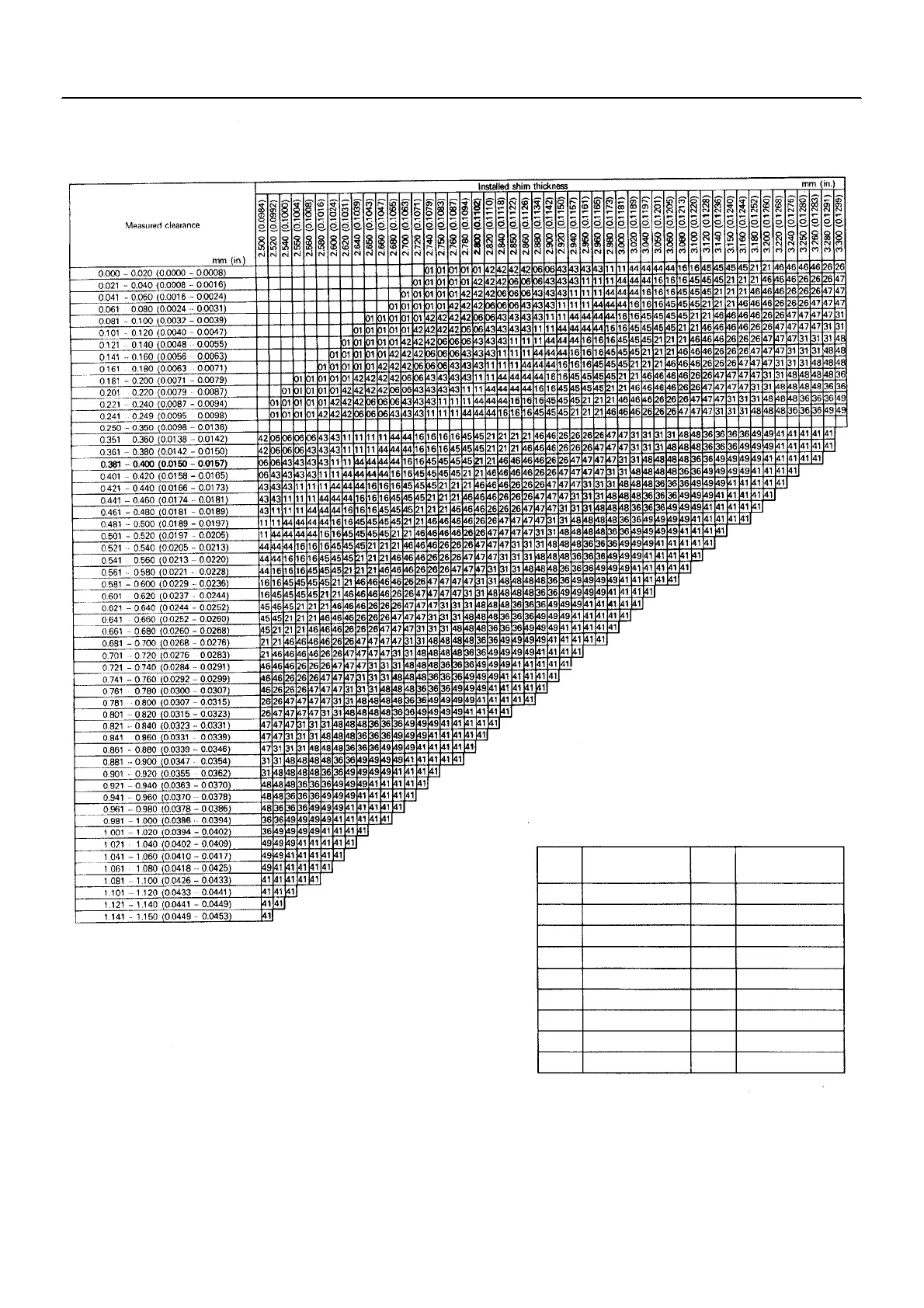

Adjusting Shim Selection Using Chart
EXHAUST
New Shim Thickness
Shim
No.
Thickness
Shim
No.
Thickness
01
42
06
43
11
44
16
45
21
2.50 (0.0984)
2.55 (0.1004)
2.60 (0.1024)
2.65 (0.1043)
2.70 (0.1063)
2.75 (0.1083)
2.80 (0.1102)
2.85 (0.1122)
2.90 (0.1142)
46
26
47
31
48
36
49
41
2.95 (0.1161)
3.00 (0.1181)
3.05 (0.1201)
3.10 (0.1220)
3.15 (0.1240)
3.20 (0.1260)
3.25 (0.1280)
3.30 (0.1299)
Exhaust valve clearance (Cold):
0.25 -- 0.35 mm (0.010 -- 0.014 in.)
EXAMPLE: The 2.800 mm (0.1102 in.) shim is installed and
the measured clearance is 0.390 mm (0.0154 in.).
Replace the 2.800 mm (0.1102 in.) shim with a new No.11
shim.
--ENGINE MECHANICAL VALVE CLEARANCE
EM--7
