S04232
Pinion Gear
Idler Gear
Clutch Assembly
Starter Housing
Bearing
S04230
ST0100
New O--Ring
P05017
S04229
New O--Ring
--STARTING STARTER
ST--17

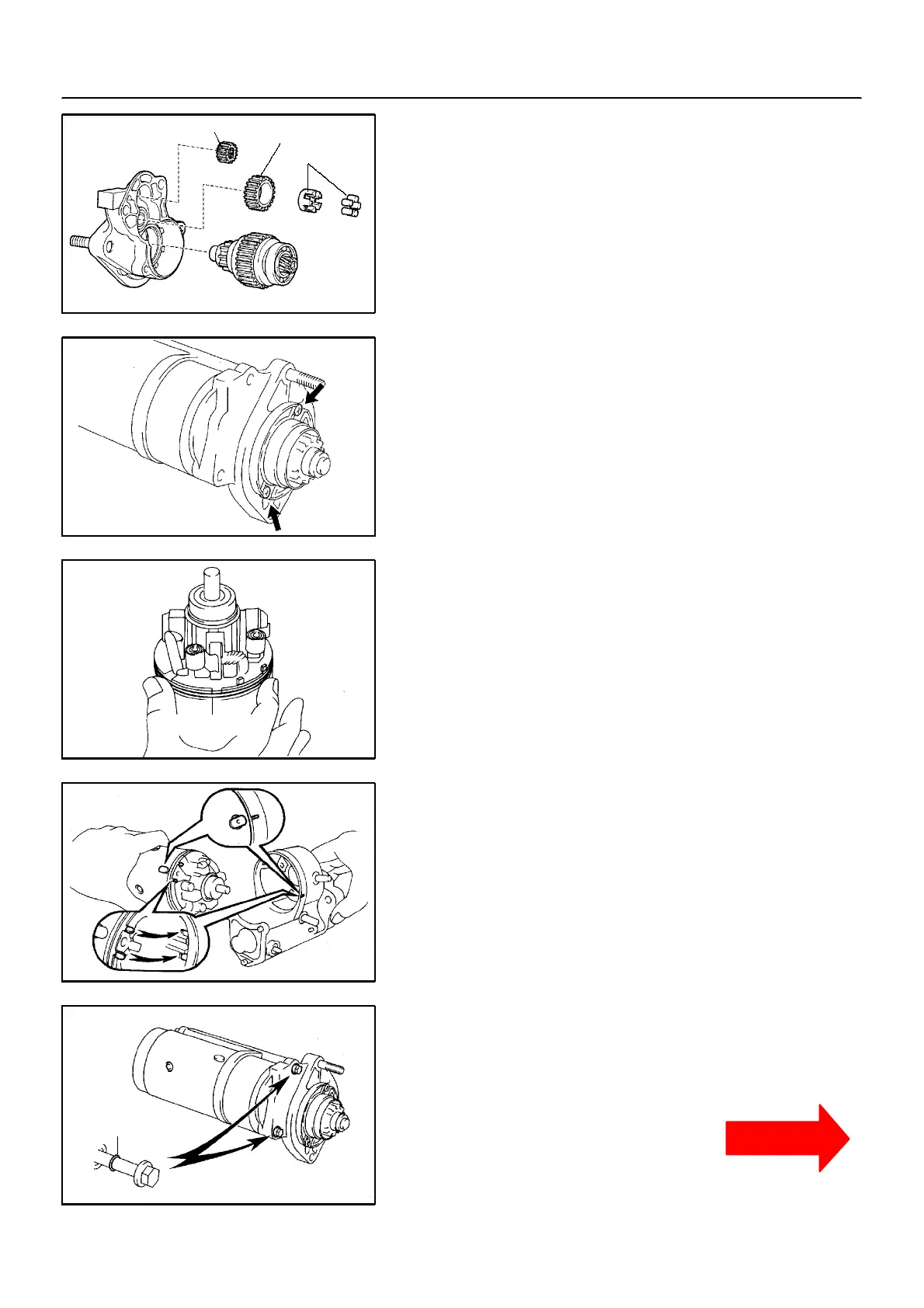

(c) Place the starter housing, pinion gear, bearing, idler gear
and clutch assembly on the starter housing.
(d) Assemble the starter housing and magnetic switch as-
sembly and install the 2 screws.
Torque: 9.3 N∙m (95 kgf∙cm, 82 in.∙lbf)
5. INSTALL FIELD FRAME AND ARMATURE ASSEMBLY
(a) PlaceanewO--ringinpositiononthefieldframe.
(b) Align the claws of the brush holder with the grooves of the
magnetic switch, and install the field frame and armature
shaft assembly.
(c) Align the punch mark of the field frame with the line of the
magnet switch.
(d) Install a new O-- rings to the through bolts.
(e) Install the field frame and armature assembly with the 2
through bolts.
Torque: 12.7 N∙m (130 kgf∙cm, 9 ft∙lbf)
