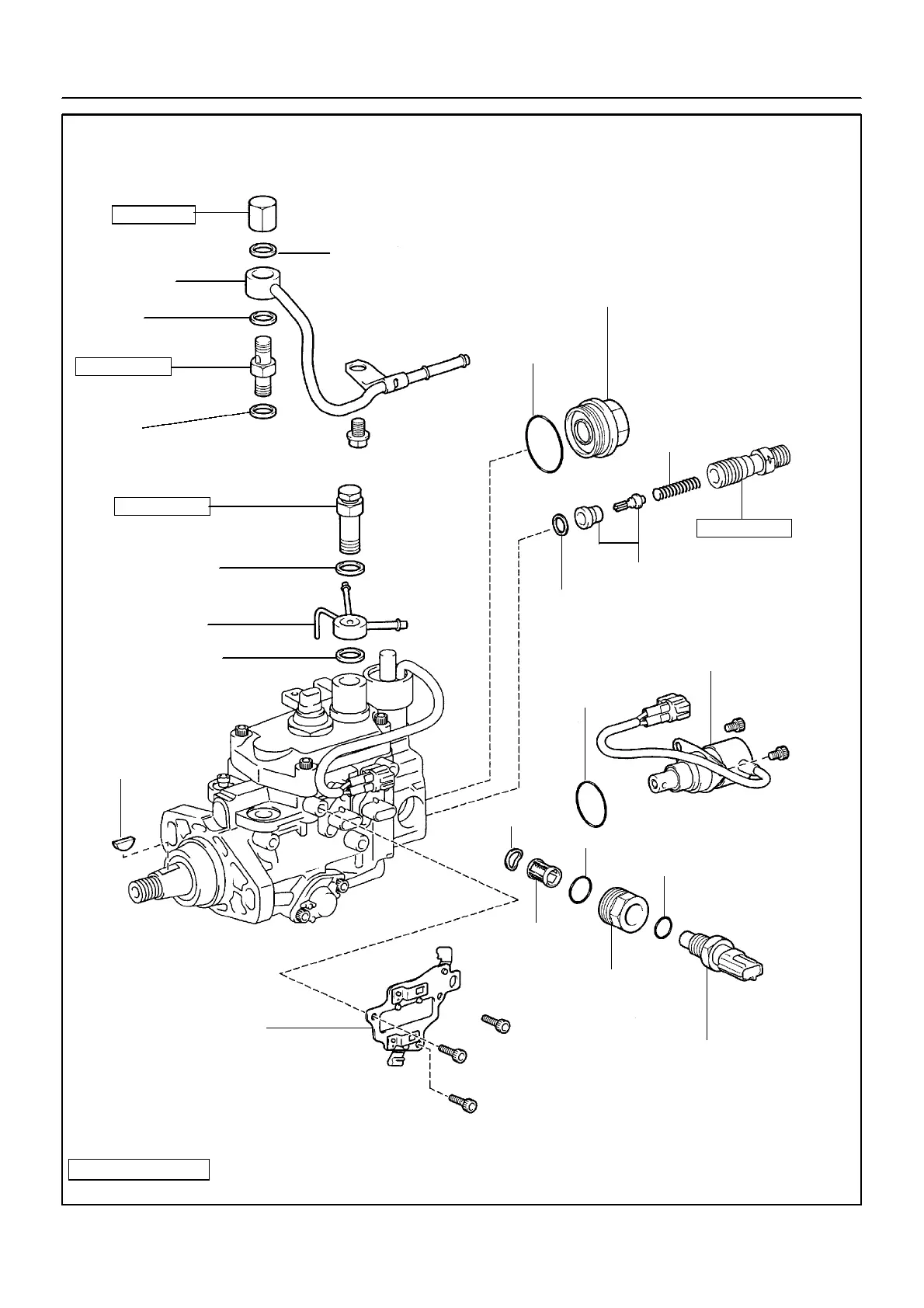

S04926
23 (230, 17)
z Gasket
Fuel Inlet Pipe
z Gasket
Fuel Inlet Hollow
Screw
z Gasket
Overflow Screw
z Gasket
z Gasket
Fuel Outlet Pipe
z Set Key
Solenoid Connector
Support Clip
Fuel Temperature Sensor
Distributive Head
Plug (No.2)
Strainer
zO--Ring
zO--Ring
Wave Washer
zO--Ring
T iming Control Valve
z Gasket
Delivery Valve
Delivery Valve Holder
Spring
zO--Ring
Distributive Head Plug (No.1)
36.8 (375, 27)
22.1 (225, 16)
58.85 (600, 43)
N∙m (kgf∙cm, ft∙lbf) : Specified torque
z Non reusable part
--ENGINE FUEL INJECTION PUMP
FU --17
