P12102
New
O--Ring
P12097
P12472
P12103
Period
Line
P13083
--LUBRICATION OIL PUMP
LU --13

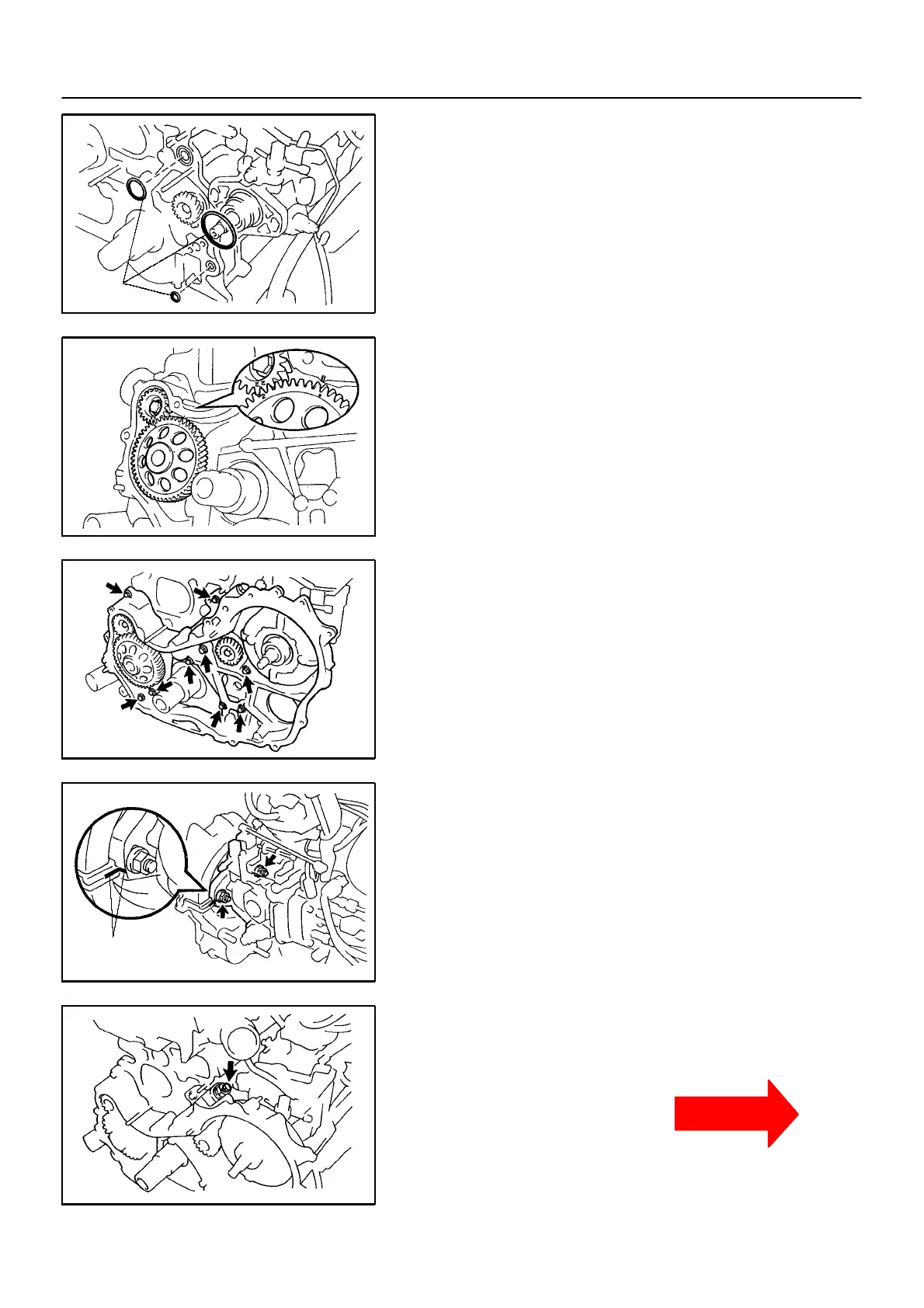

(d) Install 3 new O-- rings to the cylinder block and injection
pump.
(e) Install the timing gear case.
(f) The matchmark on the No.1 balance shaft driven gear
should be aligned with the ”2” mark.
(g) Align the mark on the oil pump drive gear with the mark
on the timing gear case.
(h) Install the 8 bolts and union bolt.
Torque:
13 N∙m (130 kgf∙cm, 9 ft∙lbf) for Bolt
16 N∙m (160 kgf∙cm, 12 ft∙lbf) for Union bolt
(i) Install the 2 nuts holding the injection pump to the timing
gear case.
Torque: 21 N∙m (210 kgf∙cm, 15 ft∙lbf) for bolt
(j) Check that the injection pump period lines (or match-
marks) are aligned by tilting the injection pump.
2. POUR ENGINE OIL INTO OIL PUMP
(a) Remove the taper screw plug.
