Toyota 1KZ-TE Repair Manual

S04204
SST
S04205
--STARTING STARTER
ST--15

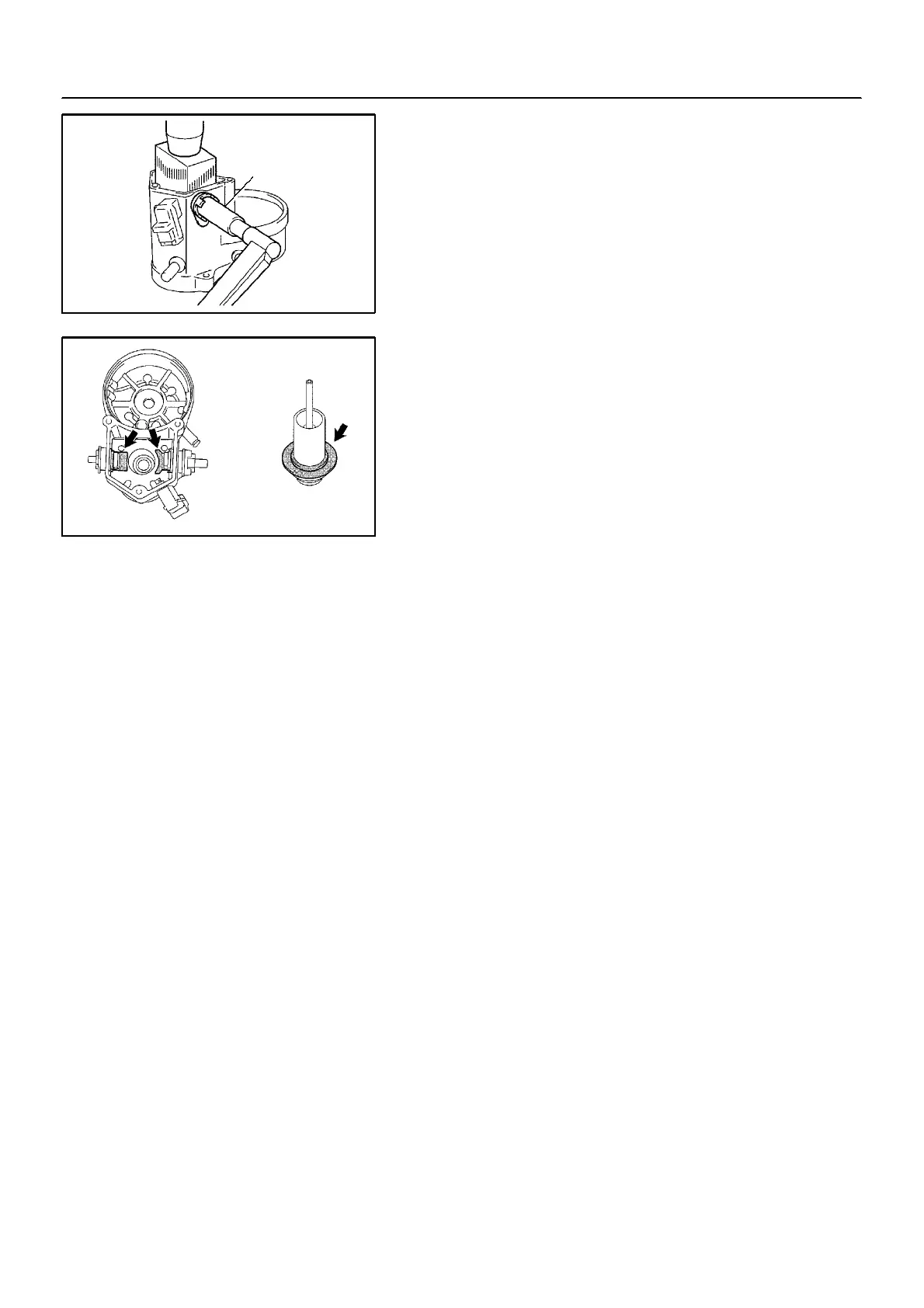

(2) Using SST, tighten the nuts to the specified torque.
SST 09810 -- 38140
Torque: 17 N∙m (173 kgf∙cm, 13 ft∙lbf)
NOTICE:
If the nut is over tightened, it may cause cracks on the in-
side of the insulator.
(h) Clean the contact surfaces of the remaining contact plate
and plunger with a dry shop rag.
(i) Reinstall the plunger, a new gasket and end cover with
the 3 bolts.
Torque: 3.6 N∙m (36 kgf∙cm, 32 in.∙lbf)
