Toyota 1KZ-TE Repair Manual

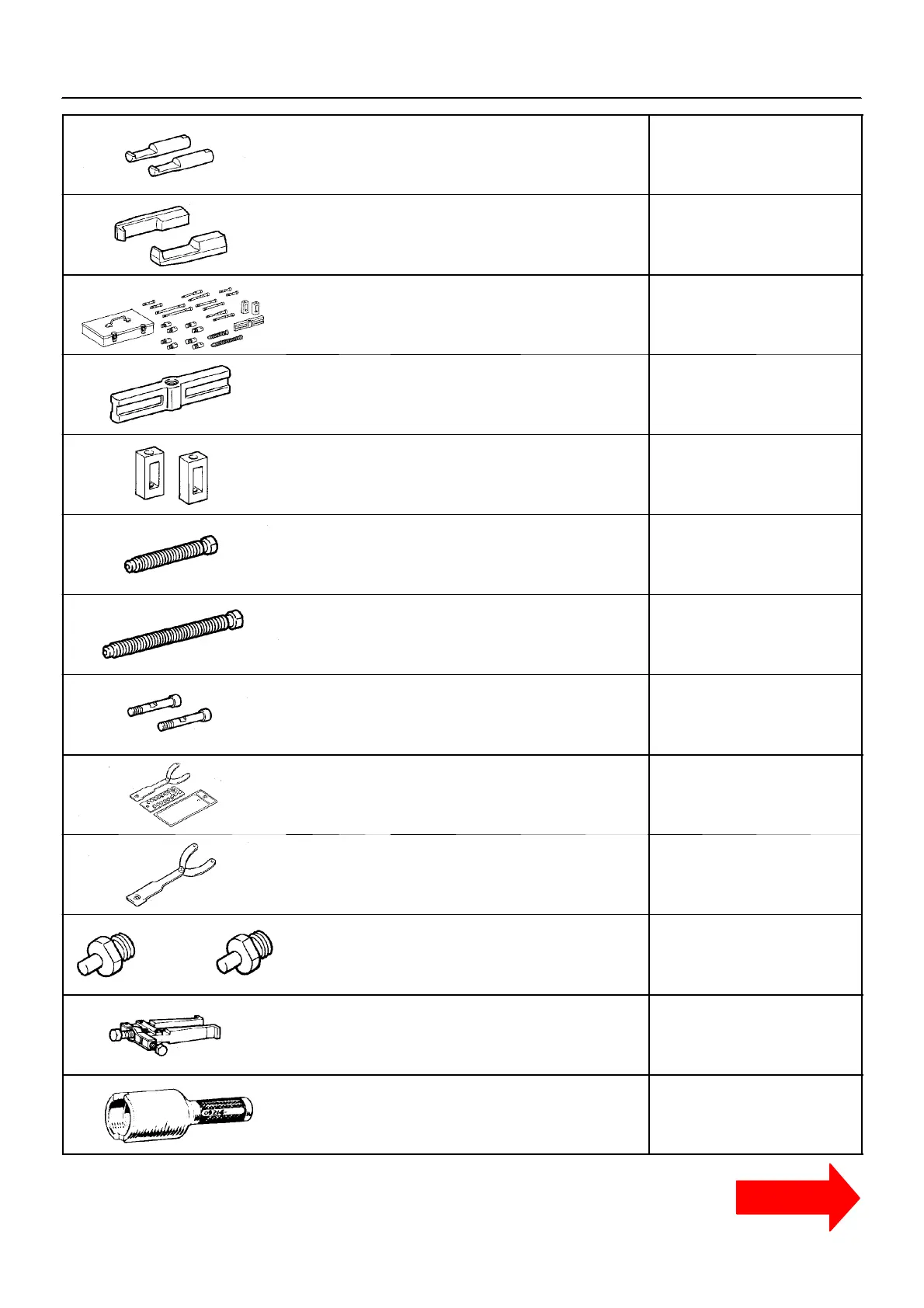

--PREPARATION ENGINE MECHANICAL
PP--3
(09955-- 04041)
Claw No.4
(09955-- 04061)
Claw No.6 Camshaft timing pulley
Oil pump drive gear shaft
Crank shaft timing gear
Injection pump drive gear
09950-- 50012
Puller C Set
(09951-- 05010)
Hanger 150 Crank shaft pulley
Injection pump drive gear
(09952-- 05010)
Slide Arm Crank shaft pulley
Injection pump drive gear
(09953-- 05010)
Center Bolt 100 Crank shaft pulley
Injection pump drive gear
(09953-- 05020)
Center Bolt 150 Crank shaft pulley
(09954-- 05020)
Claw No.2 Crank shaft pulley
Injection pump drive gear
09960-- 10010
Variable Pin Wrench Set
(09962-- 01000)
Variable Pin Wrench Arm Assy Injection pump drive gear
No.1 idrer sub--gear
(09963-- 00600)
Pin 6 Injection pump drive gear
No.1 idrer sub--gear
09308-- 10010
Oil Seal Puller
09214-- 76011
Crankshaft Pulley Replacer Crankshaft from oil seal
CLICK HERE TO VIEW CHAPTER INDEX
Pages From Manual
CONTINUED
TO MODEL INDEX
1KZ-TE

Toyota 1KZ-TE Specifications

General

Displacement	2982 cc
Bore x Stroke	96.0 mm x 103.0 mm
Compression Ratio	21.2:1
Fuel Type	Diesel
Fuel System	Direct Injection
Number of Cylinders	4
Valvetrain	SOHC, 2 valves per cylinder
Turbocharger	Yes
Intercooler	Yes
Engine Type	Inline-4, Turbocharged
