TP-Link Auranet EAP115-Wall User Manual

22
Click the button OK in Figure 5-16 and the policy is successfully added as Figure 5-17
shows.

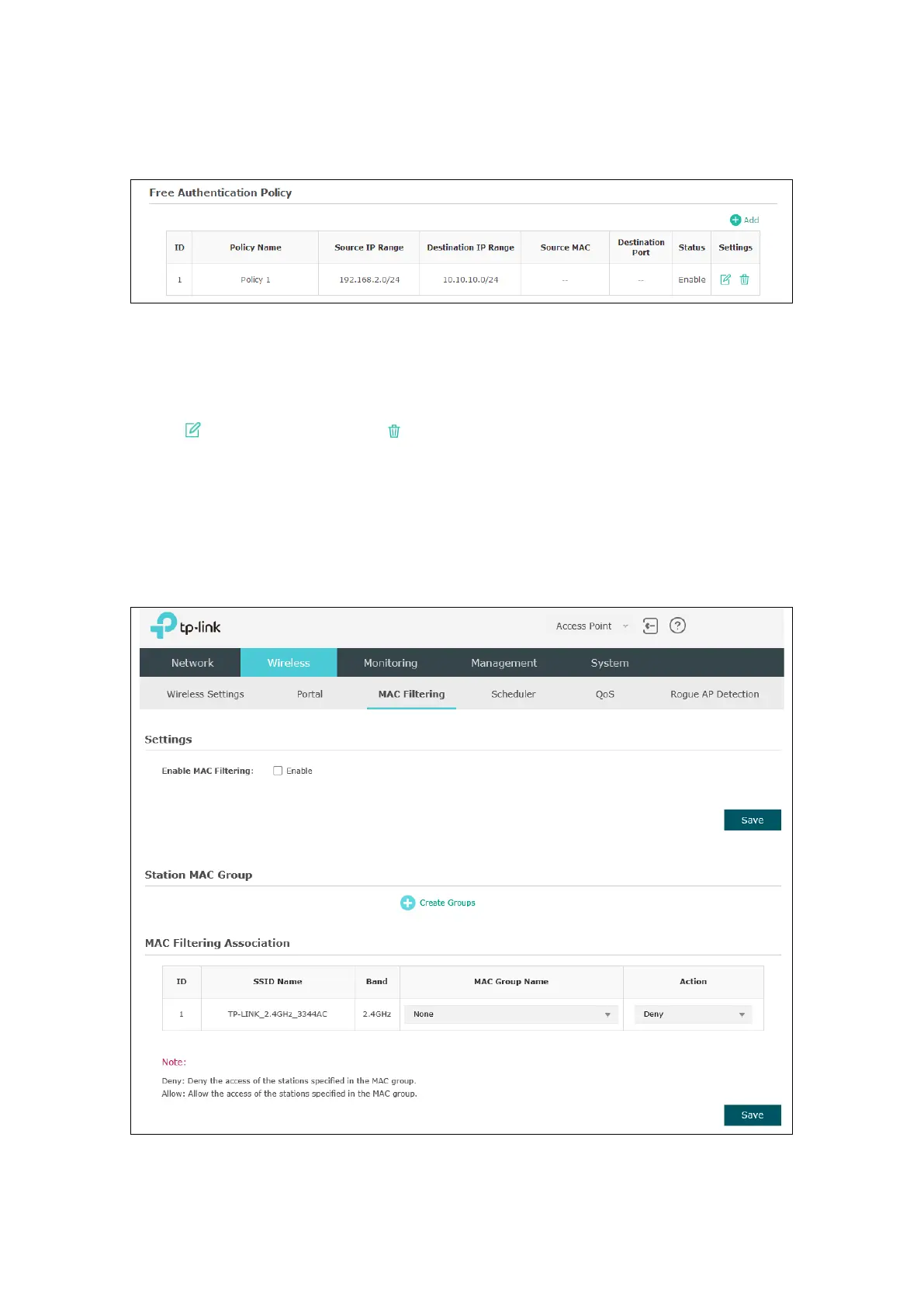

Figure 5-17 Add Free Authentication Policy
Here is the explanation of Figure 5-17: The policy name is Policy 1. Clients with IP
address range 192.168.2.0/24 are able to visit IP range 10.10.10.0/24. Policy 1 is enabled.
Click to edit the policy. Click to delete the policy.
5.3 MAC Filtering
MAC Filtering uses MAC addresses to determine whether one host can access the
wireless network. Thereby it can effectively control the user access to the wireless
network.
Figure 5-18 MAC Filtering Page

TP-Link Auranet EAP115-Wall Specifications

General

Frequency	2.4GHz
Signal Rate	Up to 300Mbps
Button	Reset Button
Certifications	CE, FCC, RoHS
Operating Temperature	0°C to 40°C (32°F to 104°F)
Wireless Standards	IEEE 802.11b/g/n
Power Supply	802.3af PoE
Interface	1 x 10/100 Mbps Ethernet Port (RJ45)
Wireless Functions	Multiple SSIDs
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Management	SNMP, Web-based Management, Centralized Management
Operating Humidity	10% to 90% non-condensing
Antenna Type	Internal Antenna
Dimensions	86.8 x 86.8 x 30.2 mm
