TP-Link Auranet EAP115-Wall User Manual

49

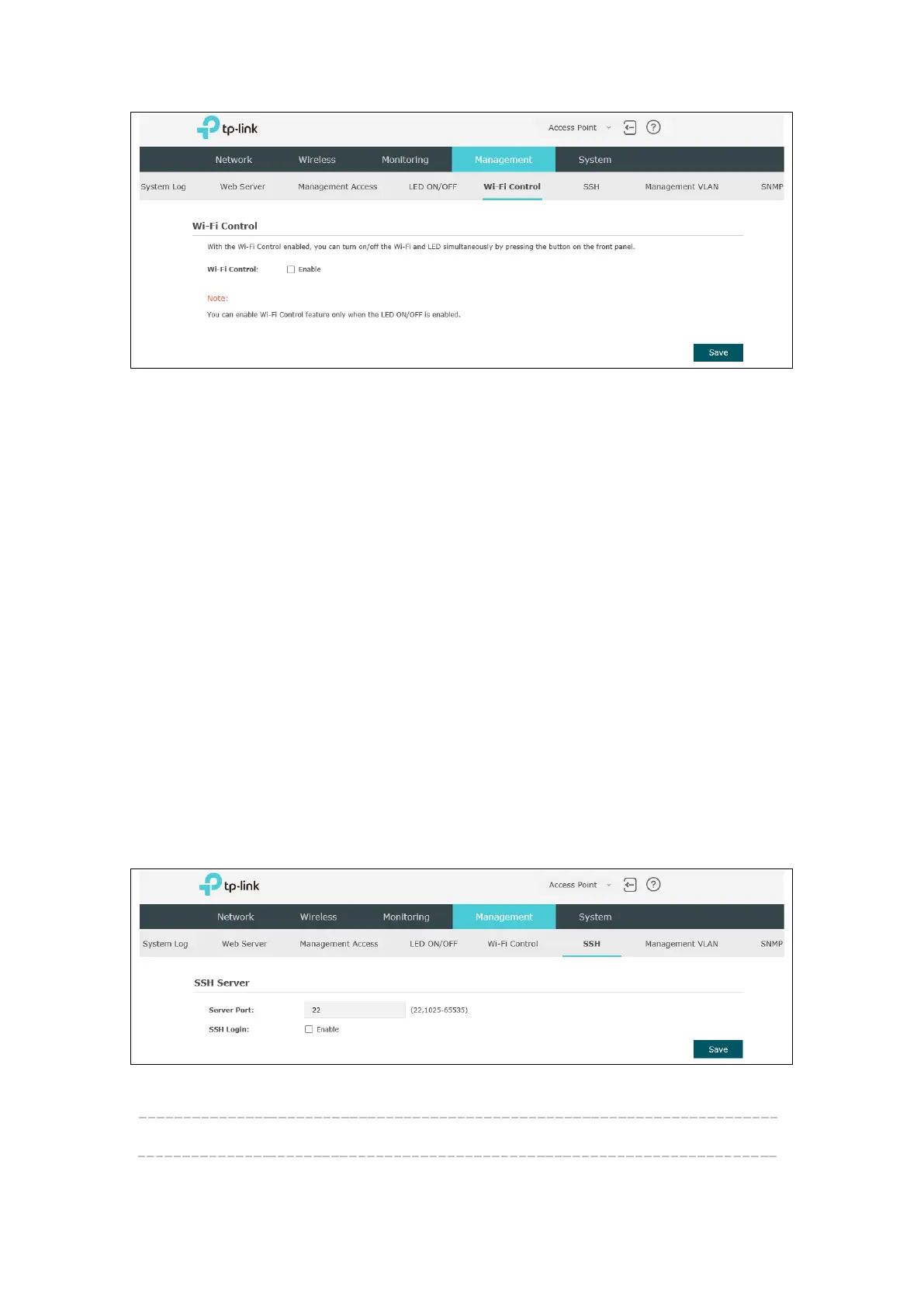

Figure 7-9 Wi-Fi Control
With the Wi-Fi Control enabled, you can turn on/off the Wi-Fi and LED simultaneously
by pressing the button on the front panel.
Note: You can enable Wi-Fi Control feature only when the
LED ON/OFF is enabled.
7.6 SSH
This device supports the SSH Server function that allows users to login and manage it
through SSH connection on the SSH client software.
SSH (Secure Shell) is a security protocol established on application and transport layers.
SSH-encrypted-connection is similar to a telnet connection, but essentially the old
telnet remote management method is not safe, because the password and data
transmitted with plain-text can be easily intercepted. SSH can provide information
security and powerful authentication when you login this device remotely through an
insecure network environment. It can encrypt all the transmission data and prevent the
information in remote management from being leaked.
Following is the page of
SSH
.
Figure 7-10 SSH Page
Server Port: Enter the server port. By default, it is port 22.

TP-Link Auranet EAP115-Wall Specifications

General

Frequency	2.4GHz
Signal Rate	Up to 300Mbps
Button	Reset Button
Certifications	CE, FCC, RoHS
Operating Temperature	0°C to 40°C (32°F to 104°F)
Wireless Standards	IEEE 802.11b/g/n
Power Supply	802.3af PoE
Interface	1 x 10/100 Mbps Ethernet Port (RJ45)
Wireless Functions	Multiple SSIDs
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Management	SNMP, Web-based Management, Centralized Management
Operating Humidity	10% to 90% non-condensing
Antenna Type	Internal Antenna
Dimensions	86.8 x 86.8 x 30.2 mm
