TP-Link Auranet EAP115-Wall User Manual

54
the system time, configure the system to acquire its time settings from a preconfigured
NTP server or synchronize the system time with the PC’s clock.
The device supports DST (Daylight Saving Time).

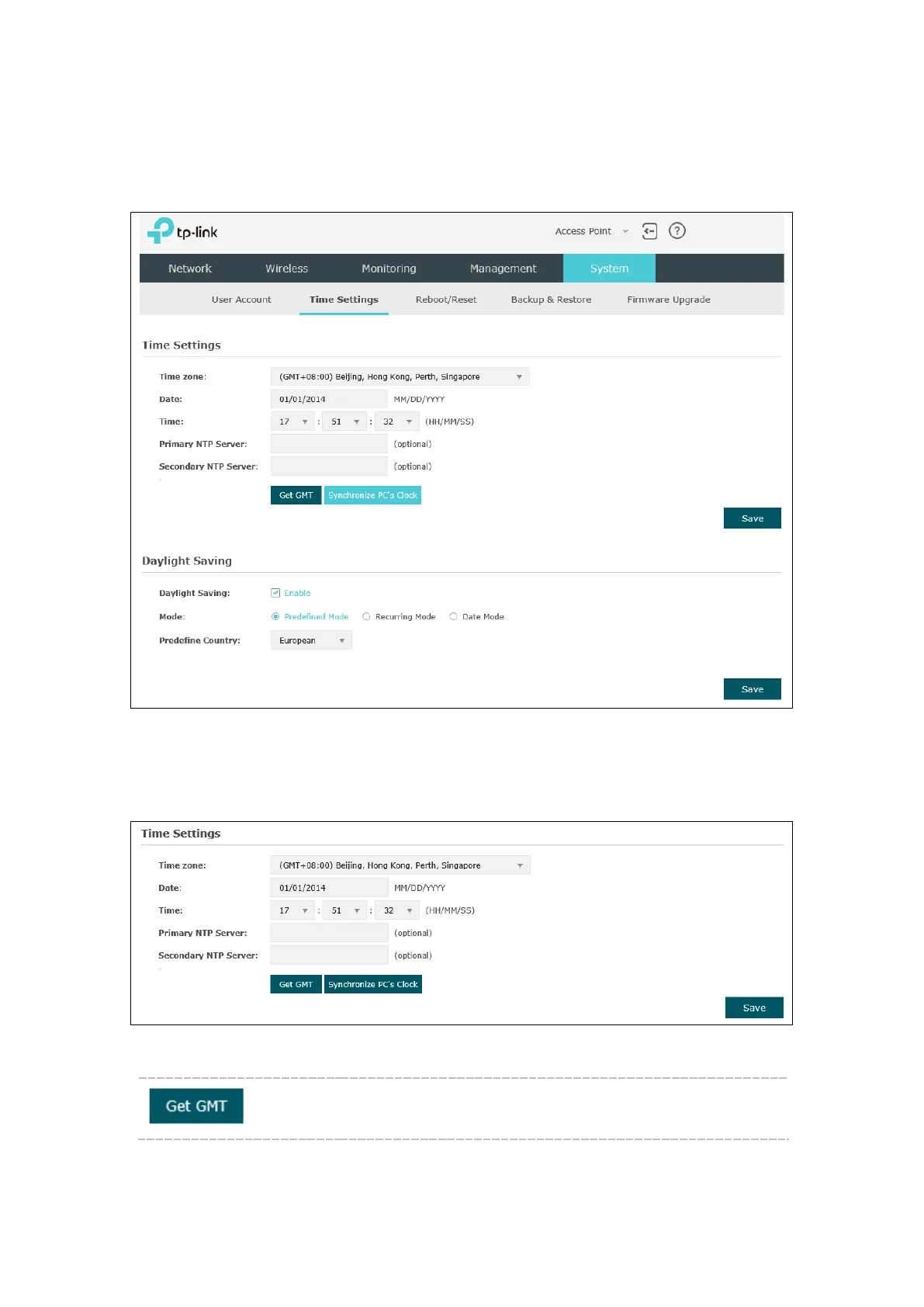

Figure 8-2 Time Settings
8.2.1 Time Settings
Figure 8-3 Time Settings
Click the button and the device will obtain GMT time from NTP
server. IP address of the NTP server has to be filled in.

TP-Link Auranet EAP115-Wall Specifications

General

Frequency	2.4GHz
Signal Rate	Up to 300Mbps
Button	Reset Button
Certifications	CE, FCC, RoHS
Operating Temperature	0°C to 40°C (32°F to 104°F)
Wireless Standards	IEEE 802.11b/g/n
Power Supply	802.3af PoE
Interface	1 x 10/100 Mbps Ethernet Port (RJ45)
Wireless Functions	Multiple SSIDs
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Management	SNMP, Web-based Management, Centralized Management
Operating Humidity	10% to 90% non-condensing
Antenna Type	Internal Antenna
Dimensions	86.8 x 86.8 x 30.2 mm
