Chapter 2 Hardware Installation
2.1 LED Explanation
TL-WA5210G consists of several LED indicators, which is designed to indicate connections and
wireless signal.

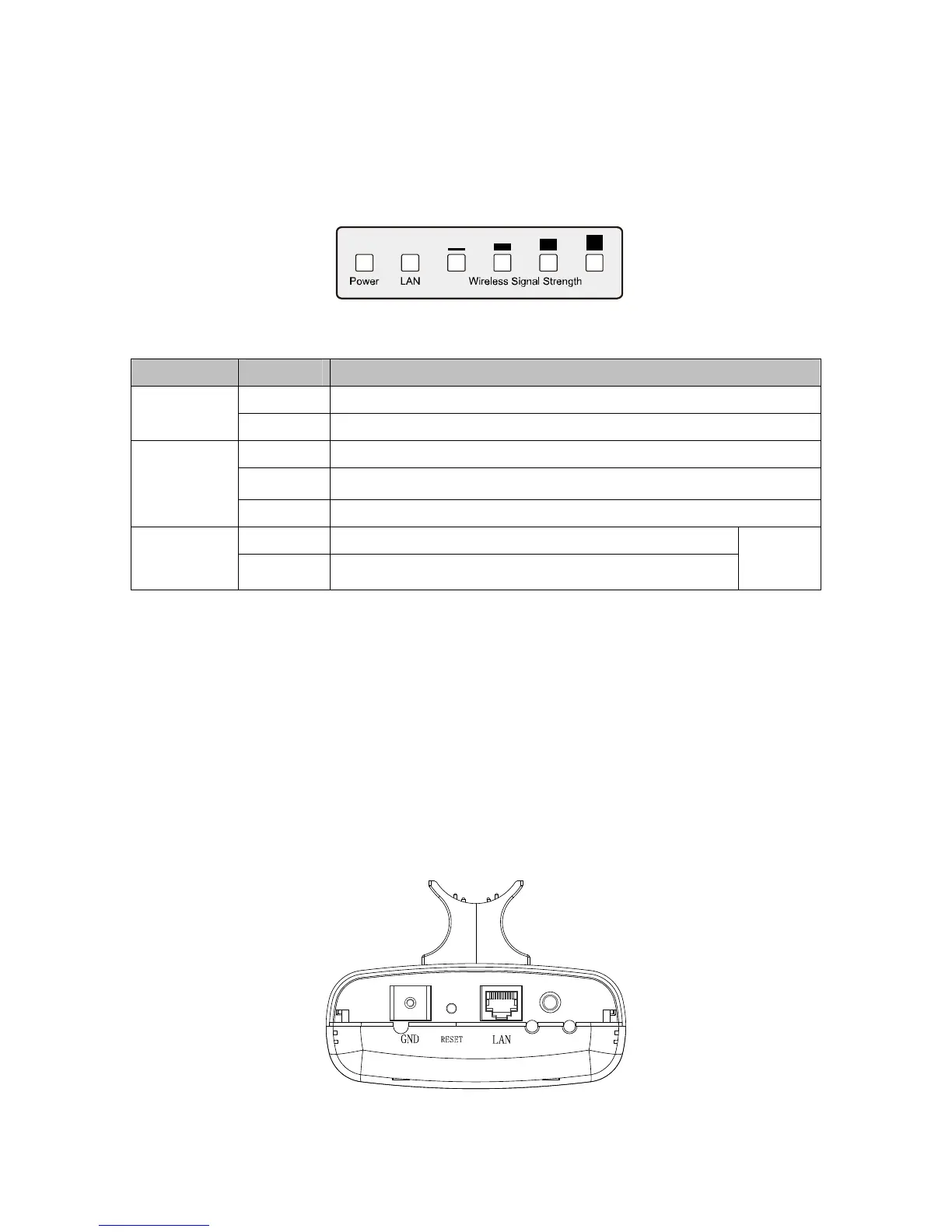

Figure 2-1 Front Panel sketch
View from left to right.
Name Status Indication
Off No Power
Power
On Power on
Off There is no device linked to the corresponding port
On There is a device linked to the corresponding port but no activity
LAN
Flashing There is an active device linked to the corresponding port
Off There is no remote wireless signal Wireless
Signal
Strength
On Indicates the wireless signal strength of a remote AP
Client or
Repeater
mode
Table 2-1
)
Note:
For Wireless Signal Strength LEDs:
¾ In AP or Bridge mode, all the four LEDs will light up.
¾ In Client or Repeater mode, the corresponding LED(s) will light up when the RSSI value
(wireless signal strength value) reaches the RSSI Threshold. The value of RSSI Threshold
can be set on Wireless Advanced Settings page as shown in Figure 4-26.
For example
, if the RSSI value is 30, the RSSI Threshold of the four LED are 15, 25, 35, 45
respectively, and then the LEDs whose RSSI Threshold are 15 and 25 will light up.
2.2 Interfaces and button
Figure 2-2 Rear Panel sketch
View from left to right, the parts are explained below.

TP-Link TL-WA5210G Specifications

General

2.4 GHz	Yes
Modulation	DBPSK, DSSS, OFDM, QPSK
Frequency band	2.4 - 2.4835 GHz
Receiver sensitivity	802.11g 54M: -76dBm 48M: -78dBm 36M: -82dBm 12M: -91dBm 9M:-92dBm, 802.11b 11M:-90dBm 5.5M:-92dBm 1M:-98dBm
Maximum data transfer rate	54 Mbit/s
Networking features	Fast Ethernet
Vertical beam width	60 °
Transmit power range	20/27 dBm dBmW
Horizontal beam width	30 °
Maximum operating distance	50000 m
Compliance industry standards	IEEE 802.11g, IEEE 802.11b
Supported data transfer rates	54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps
Antenna connector type	RP-SMA
Antenna gain level (max)	12 dBi
Internal	No
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-AES, WPA-PSK, WPA2, WPA2-PSK
Power requirements	12VDC / 1.0A
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	265 x 120 x 83 mm
