TP-Link TL-WA5210G User Manual

65
shown in Figure 4-66.

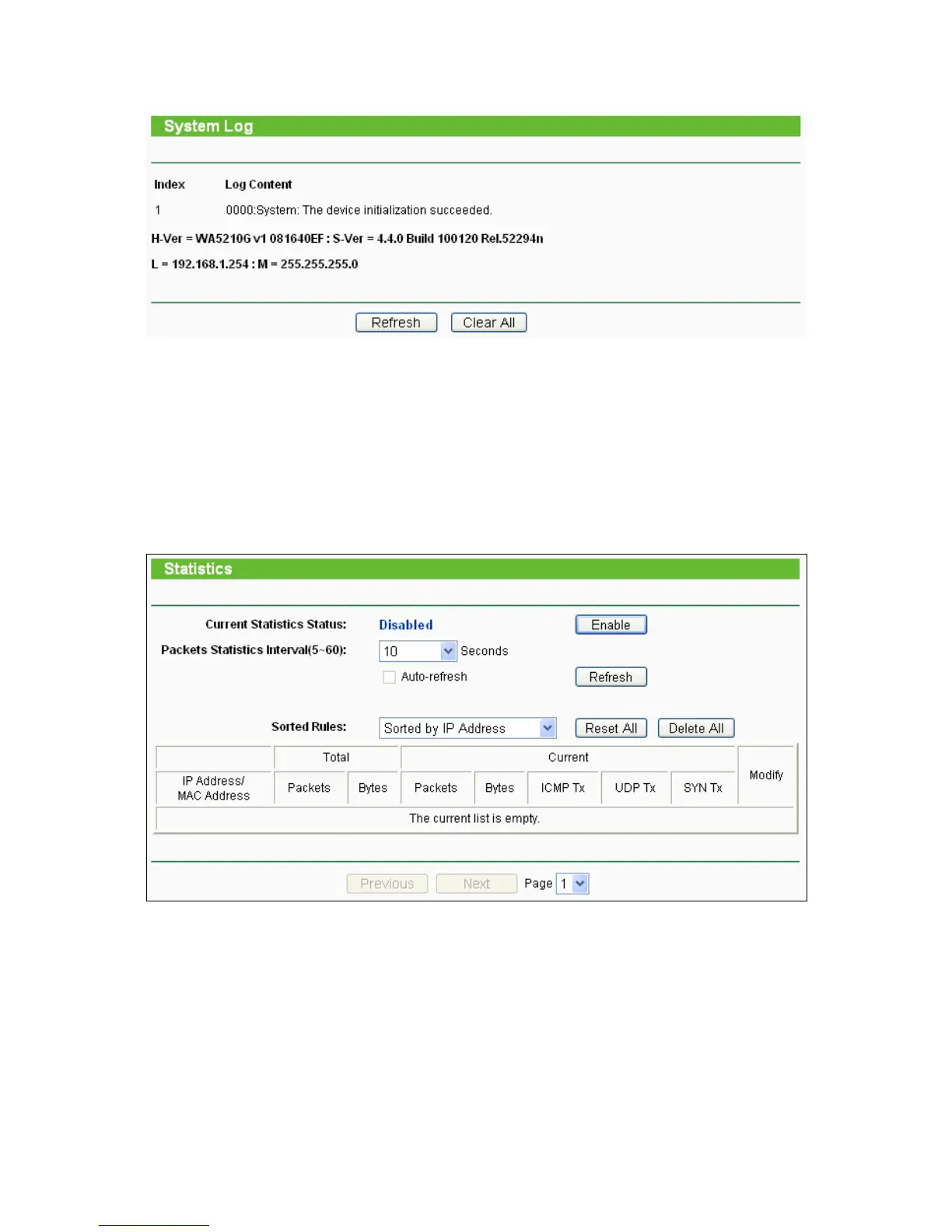

Figure 4-66 System Log
The AP can keep logs of all traffic. You can query the logs to find out what happened to the AP.
Click Refresh to refresh the logs.
Click Clear All to clear all the logs.
4.15.10 Statistics
The Statistics page (shown in Figure 4-67) displays the network traffic of each PC on the LAN,
including total traffic and traffic of the last Packets Statistic interval seconds.
Figure 4-67 Statistics
¾ Current Statistics Status - Enabled or Disabled. The default value is disabled. To enable,
click the Enable button. If disabled, the function of DoS protection in Security settings will be
ineffective.
¾ Packets Statistics Interval - The default value is 10. Select a value between 5 and 60
seconds from the pull-down list. The Packets Statistic interval indicates the time section of
the packets statistic.
¾ Sorted Rules - Here displays sort as desired
Statistics Table:

TP-Link TL-WA5210G Specifications

General

2.4 GHz	Yes
Modulation	DBPSK, DSSS, OFDM, QPSK
Frequency band	2.4 - 2.4835 GHz
Receiver sensitivity	802.11g 54M: -76dBm 48M: -78dBm 36M: -82dBm 12M: -91dBm 9M:-92dBm, 802.11b 11M:-90dBm 5.5M:-92dBm 1M:-98dBm
Maximum data transfer rate	54 Mbit/s
Networking features	Fast Ethernet
Vertical beam width	60 °
Transmit power range	20/27 dBm dBmW
Horizontal beam width	30 °
Maximum operating distance	50000 m
Compliance industry standards	IEEE 802.11g, IEEE 802.11b
Supported data transfer rates	54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps
Antenna connector type	RP-SMA
Antenna gain level (max)	12 dBi
Internal	No
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-AES, WPA-PSK, WPA2, WPA2-PSK
Power requirements	12VDC / 1.0A
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	265 x 120 x 83 mm
