68

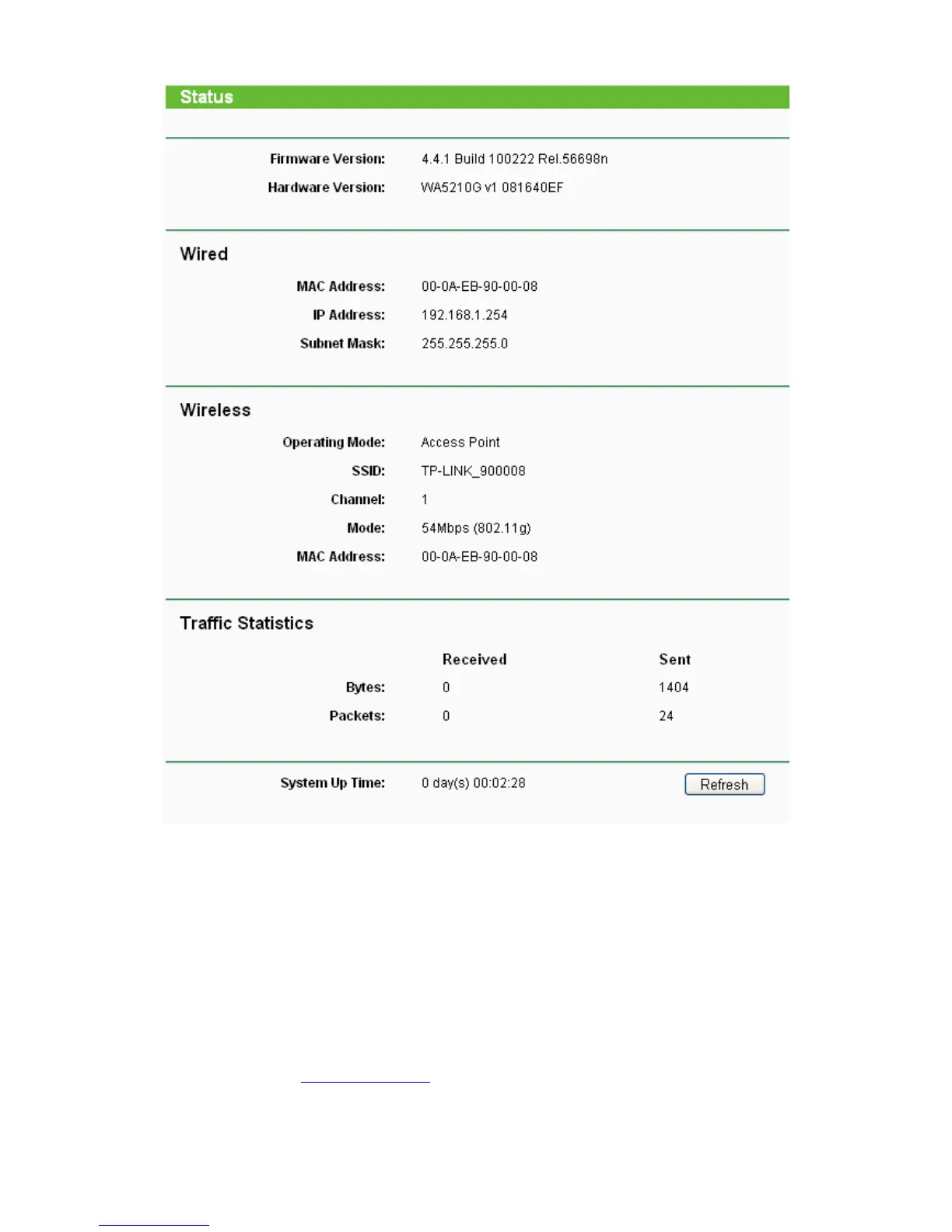

Figure 5-1
¾ Wired - This field displays the current settings or information for the Network, including the
MAC address, IP address and Subnet Mask.
¾ Wireless - This field displays basic information or status for wireless function, including
Operating Mode, Signal, SSID, Channel, Mode, and MAC Address.
¾ Traffic Statistics - This field displays the AP's traffic statistics.
¾ System Up Time - The time of the AP running from it's powered on or reset.
5.3 Quick Setup
Please refer to Section 3.2: "Quick Setup".

Table of Contents

Other manuals for TP-Link TL-WA5210G

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the TP-Link TL-WA5210G and is the answer not in the manual?

TP-Link TL-WA5210G Specifications

General IconGeneral
2.4 GHzYes
ModulationDBPSK, DSSS, OFDM, QPSK
Frequency band2.4 - 2.4835 GHz
Receiver sensitivity802.11g 54M: -76dBm 48M: -78dBm 36M: -82dBm 12M: -91dBm 9M:-92dBm, 802.11b 11M:-90dBm 5.5M:-92dBm 1M:-98dBm
Maximum data transfer rate54 Mbit/s
Networking featuresFast Ethernet
Vertical beam width60 °
Transmit power range20/27 dBm dBmW
Horizontal beam width30 °
Maximum operating distance50000 m
Compliance industry standardsIEEE 802.11g, IEEE 802.11b
Supported data transfer rates54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps
Antenna connector typeRP-SMA
Antenna gain level (max)12 dBi
InternalNo
Ethernet LAN (RJ-45) ports1
Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA-AES, WPA-PSK, WPA2, WPA2-PSK
Power requirements12VDC / 1.0A
Operating temperature (T-T)-30 - 70 °C
Storage relative humidity (H-H)5 - 95 %
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Dimensions (WxDxH)265 x 120 x 83 mm
