TP-Link TL-WA5210G User Manual

89
5.9.2 SNMP System Setting
Selecting SNMP > SNMP Setting will allow you to configure some parameters for System
(iso.org.dod.internet.mgmt.mib-2.system) as shown in Figure 5-26.

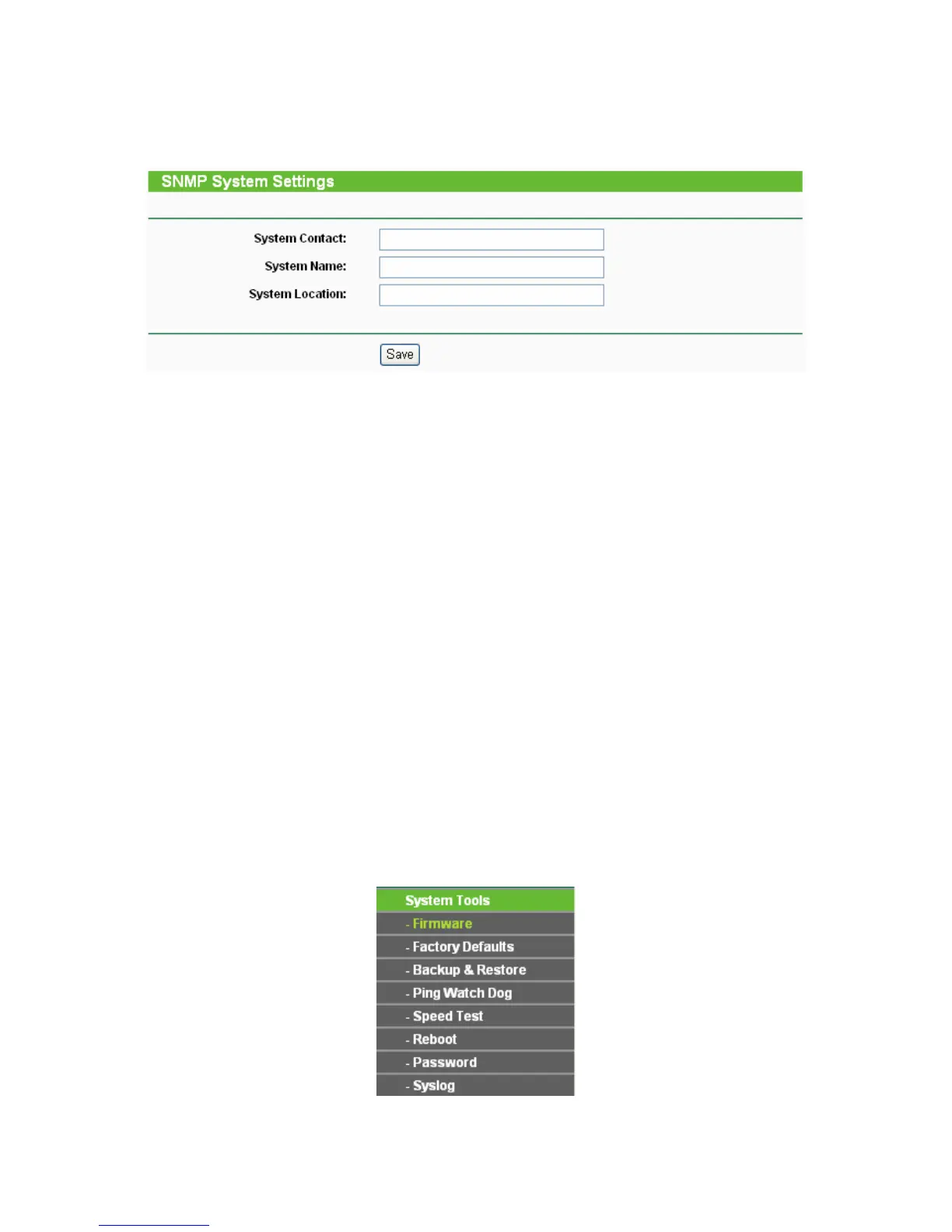

Figure 5-26 SNMP System Setting
¾ System Contact - The textual identification of the contact person for this managed node,
together with information on how to contact this person.
¾ System Name - An administratively-assigned name for this managed node. By convention,
this is the node's fully-qualified domain name.
¾ System Location - The physical location of this node.
Click the Save button to save configuration in current page.
5.10 System Tools
System Tools option helps you to optimize the configuration of your device. You can upgrade the
AP to the latest version of firmware as well as backup or restore the AP’s configuration files. Ping
Watch Dog can help to continuously monitor a particular connection to a remote host. Speed Test
helps to test the connection speed to and from any reachable IP address on current network,
especially when we are building wireless network between devices which are far away from each
other. It’s suggested that you change the default password to a more secure one because it
controls access to the device’s web-based management page. Besides, you can find out what
happened to the system in System Log.
There are eight submenus under the System Tools menu (shown as Figure 5-27): Firm
ware,
Factory Defaults, Backup & Restore, Ping Watch Dog, Speed Test, Reboot, Password and
Syslog. Clicking any of them will enable you to configure the corresponding function. The detailed
explanations for each submenu are provided below.
Figure 5-27 The System Tools menu

TP-Link TL-WA5210G Specifications

General

2.4 GHz	Yes
Modulation	DBPSK, DSSS, OFDM, QPSK
Frequency band	2.4 - 2.4835 GHz
Receiver sensitivity	802.11g 54M: -76dBm 48M: -78dBm 36M: -82dBm 12M: -91dBm 9M:-92dBm, 802.11b 11M:-90dBm 5.5M:-92dBm 1M:-98dBm
Maximum data transfer rate	54 Mbit/s
Networking features	Fast Ethernet
Vertical beam width	60 °
Transmit power range	20/27 dBm dBmW
Horizontal beam width	30 °
Maximum operating distance	50000 m
Compliance industry standards	IEEE 802.11g, IEEE 802.11b
Supported data transfer rates	54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps
Antenna connector type	RP-SMA
Antenna gain level (max)	12 dBi
Internal	No
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-AES, WPA-PSK, WPA2, WPA2-PSK
Power requirements	12VDC / 1.0A
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	265 x 120 x 83 mm
