22
Wireless Mode, Security Settings, MAC Filtering, Wireless Statistics, Distance Setting,
Antenna Alignment and Throughput Monitor. Click any of them, and you will be able to
configure the corresponding function. The detailed explanations for each submenu are provided
below.

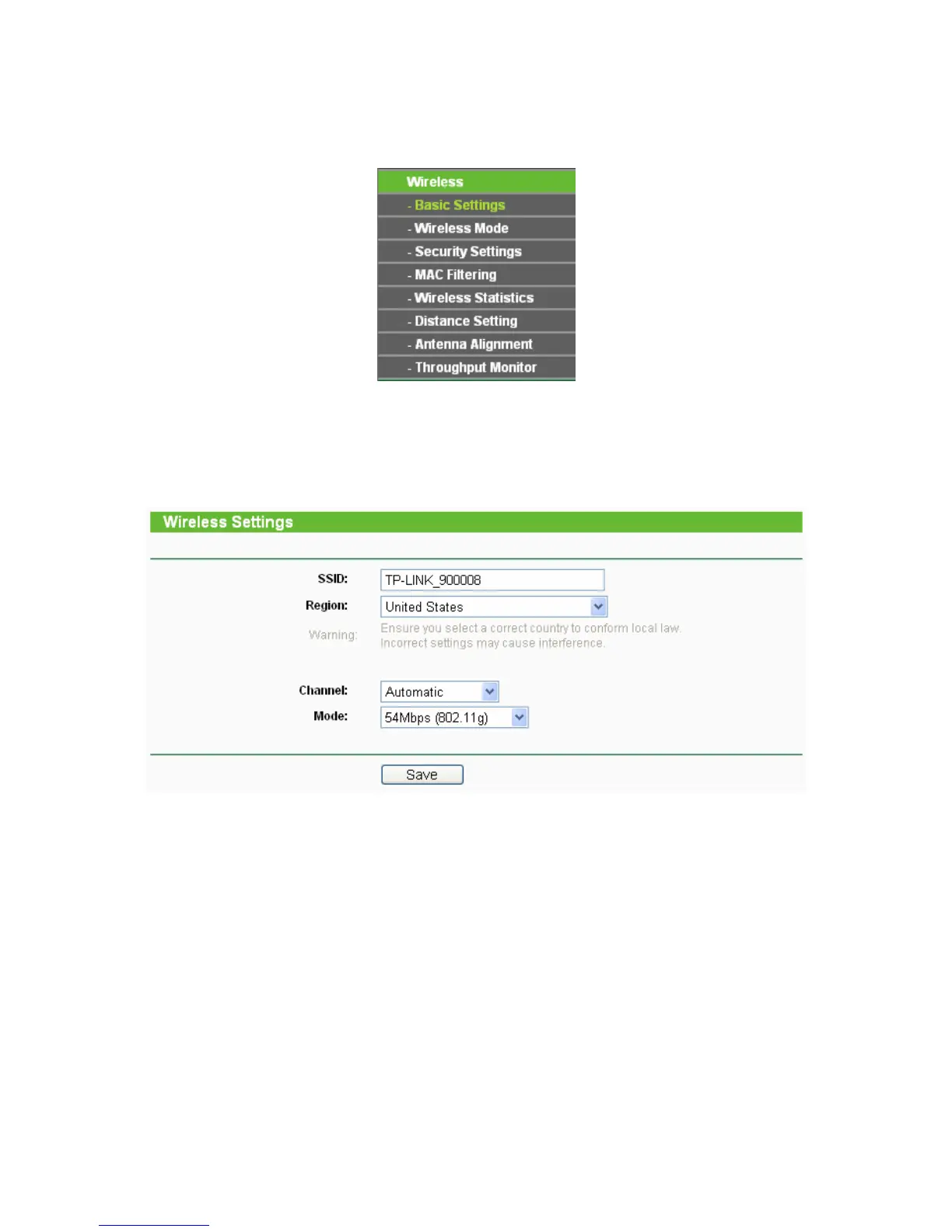

Figure 4-10 Wireless menu
4.6.1 Basic Settings
Selecting Wireless > Basic Settings will enable you to configure the basic settings for your
wireless network on the screen below (Figure 4-11).
Figure 4-11 Wireless Settings in AP Client Router mode
¾ SSID - Enter a string of up to 32 characters. The same Name (SSID) must be assigned to all
wireless devices in your network. The default SSID is set to be TP-LINK_XXXXXX (XXXXXX
indicates the last unique six characters of each device's MAC address), which can ensure
your wireless network security. But it is strongly recommended that you change your
networks name (SSID) to a different value. This value is case-sensitive. For example, TEST
is NOT the same as test.
¾ Region - Select your region from the pull-down list. This field specifies the region where the
wireless function of the device can be used. It may be illegal to use the wireless function of
the device in a region other than one of those specified in this field. If your country or region is
not listed, please contact your local government agency for assistance.
When you select your local region from the pull-down list, click the Save button, then the Note
Dialog appears. Click OK.
