TP-Link TL-WA5210G User Manual

69

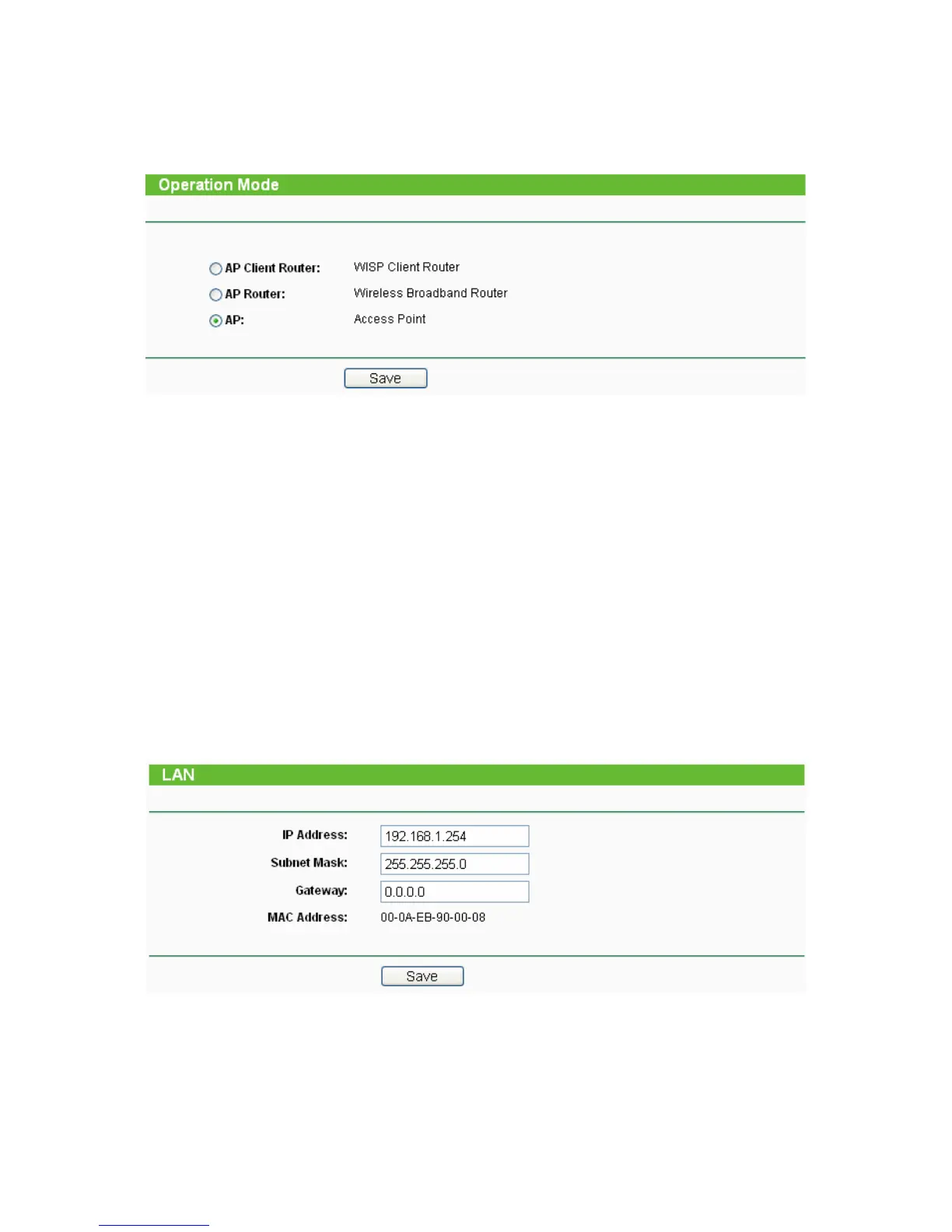

5.4 Operation Mode
The AP supports three operation modes, AP Client Router, AP Router and AP. Please select
one your want. Click Save to save your choice. Figure 5-2.
Figure 5-2 Operation Mode
¾ AP Client Router: In this mode, the device enables multiusers to share Internet from WISP.
The LAN port devices share the same IP from WISP through Wireless port. While connecting
to WISP, the Wireless port works as a WAN port at AP Client Router mode. The Ethernet port
acts as a LAN port.
¾ AP Router: In this mode, the device enables multiusers to share Internet via ADSL/Cable
Modem. The wireless port share the same IP to ISP through Ethernet WAN port. The Wireless
port acts the same as a LAN port while at AP Router mode.
¾ AP: In this mode, the device allows wireless communication devices to connect to a wireless
network by using WIFI. The Ethernet port and the wireless port both work as LAN ports.
5.5 Network
The Network option allows you to customize your local network manually by changing the default
settings of the AP.
Selecting Network will enable you to configure the IP parameters of Network on this page.
Figure 5-3 Network
¾ IP Address - Enter the IP address of your AP in dotted-decimal notation (factory default:
192.168.1.254).
¾ Subnet Mask - An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.

TP-Link TL-WA5210G Specifications

General

2.4 GHz	Yes
Modulation	DBPSK, DSSS, OFDM, QPSK
Frequency band	2.4 - 2.4835 GHz
Receiver sensitivity	802.11g 54M: -76dBm 48M: -78dBm 36M: -82dBm 12M: -91dBm 9M:-92dBm, 802.11b 11M:-90dBm 5.5M:-92dBm 1M:-98dBm
Maximum data transfer rate	54 Mbit/s
Networking features	Fast Ethernet
Vertical beam width	60 °
Transmit power range	20/27 dBm dBmW
Horizontal beam width	30 °
Maximum operating distance	50000 m
Compliance industry standards	IEEE 802.11g, IEEE 802.11b
Supported data transfer rates	54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps
Antenna connector type	RP-SMA
Antenna gain level (max)	12 dBi
Internal	No
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-AES, WPA-PSK, WPA2, WPA2-PSK
Power requirements	12VDC / 1.0A
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	265 x 120 x 83 mm
