TP-Link TL-WA5210G User Manual

40

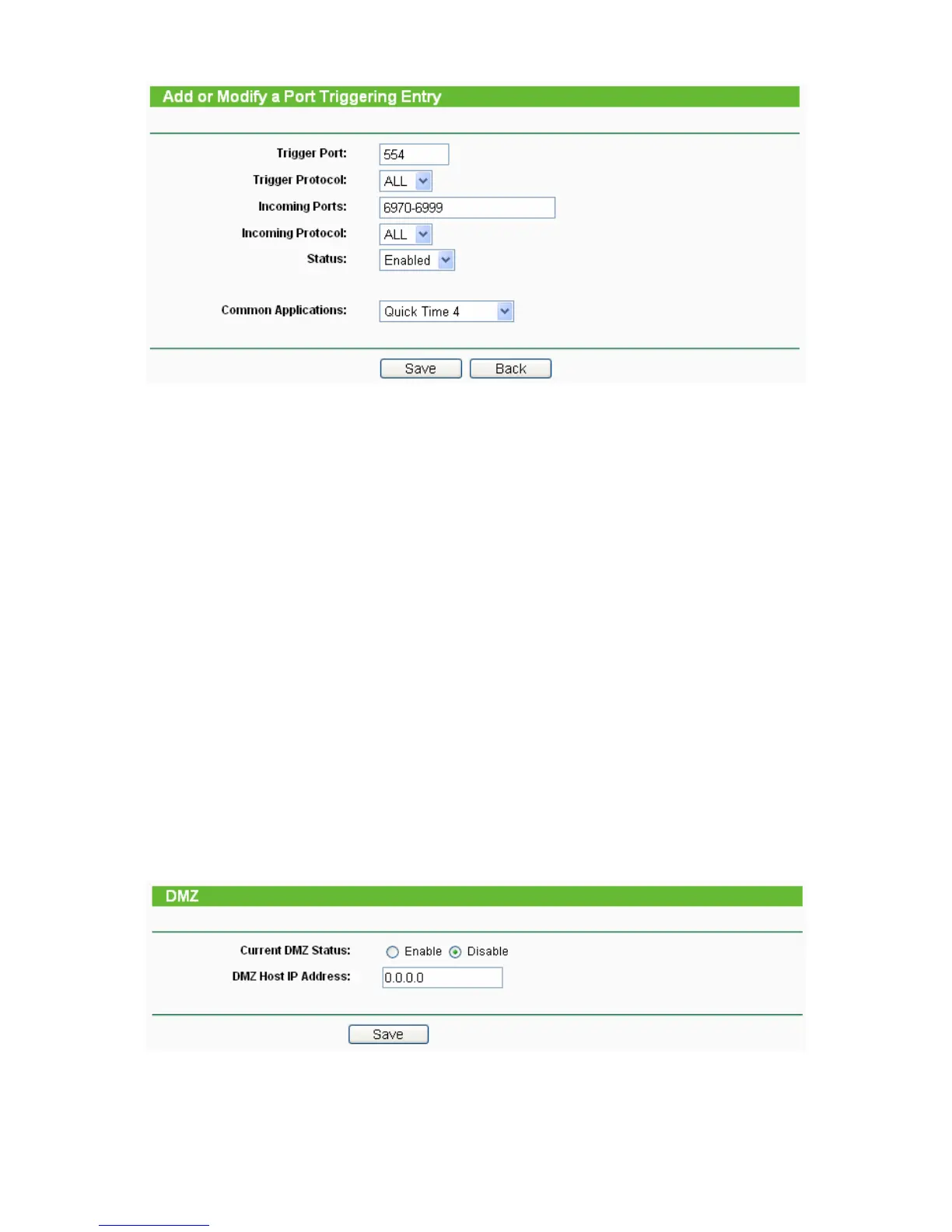

Figure 4-31 Add or Modify a Triggering Entry
To modify or delete an existing entry, please take the following steps:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click Enable All to make all entries enabled.
Click Disabled All to make all entries disabled.
Click Delete All to delete all entries
)
Note:
1) When the trigger connection is released, the corresponding opening ports will be closed.
2) Each rule can only be used by one host on the LAN at a time. The trigger connection of other
hosts on the LAN will be refused.
3) Incoming Port Range enabled cannot overlap each other at the same time.
4.9.3 DMZ
Selecting Forwarding > DMZ will allow you to set up an DMZ host on the page as shown in
Figure 4-32.
Figure 4-32 DMZ
To assign a computer or server to be a DMZ server:
1. Click the Enable radio button

TP-Link TL-WA5210G Specifications

General

2.4 GHz	Yes
Modulation	DBPSK, DSSS, OFDM, QPSK
Frequency band	2.4 - 2.4835 GHz
Receiver sensitivity	802.11g 54M: -76dBm 48M: -78dBm 36M: -82dBm 12M: -91dBm 9M:-92dBm, 802.11b 11M:-90dBm 5.5M:-92dBm 1M:-98dBm
Maximum data transfer rate	54 Mbit/s
Networking features	Fast Ethernet
Vertical beam width	60 °
Transmit power range	20/27 dBm dBmW
Horizontal beam width	30 °
Maximum operating distance	50000 m
Compliance industry standards	IEEE 802.11g, IEEE 802.11b
Supported data transfer rates	54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps
Antenna connector type	RP-SMA
Antenna gain level (max)	12 dBi
Internal	No
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-AES, WPA-PSK, WPA2, WPA2-PSK
Power requirements	12VDC / 1.0A
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	265 x 120 x 83 mm
