TP-Link TL-WA5210G User Manual

26
4.6.3 Security Settings
Selecting Wireless > Security Settings will enable you to configure the security of the wireless
network for your device on the page as shown in Figure 4-14.

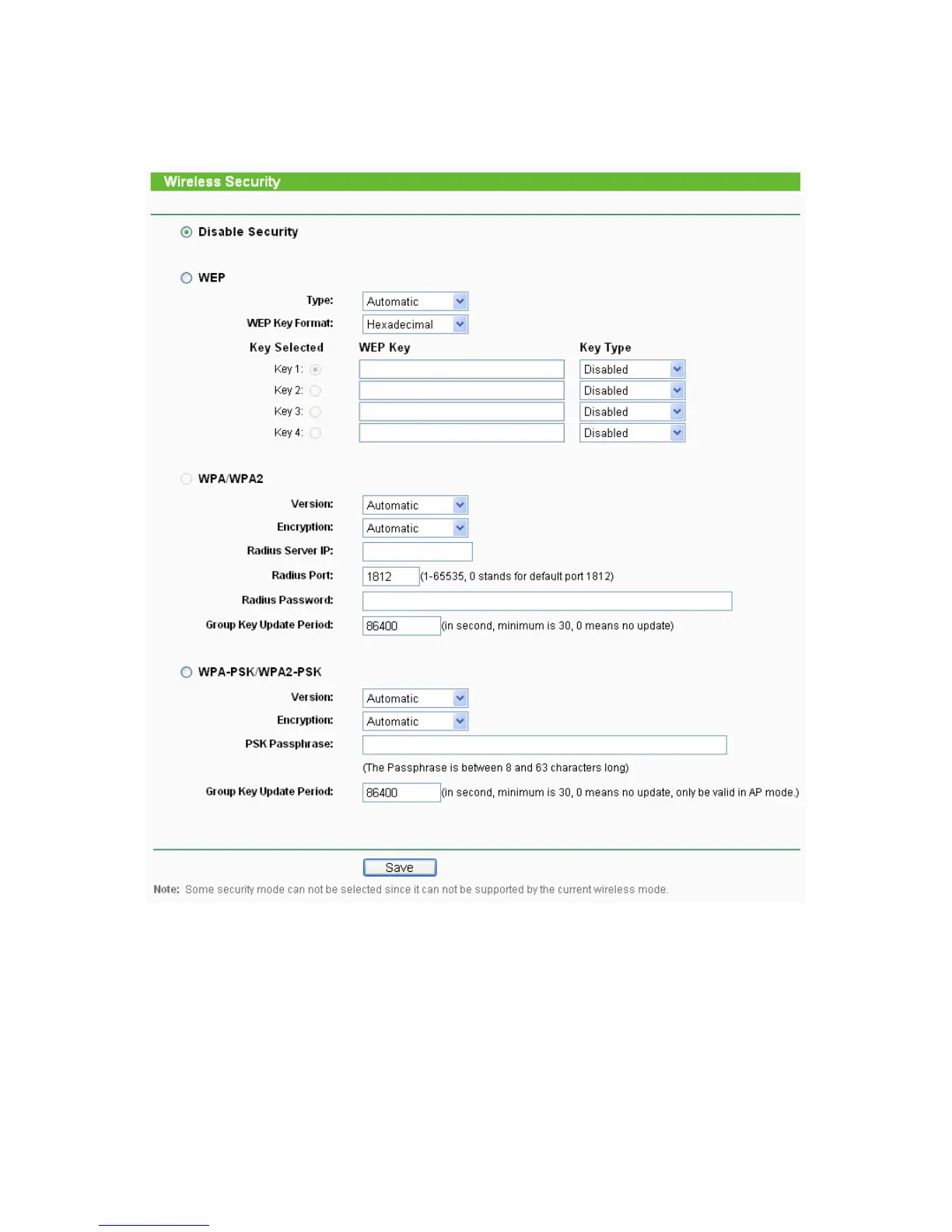

Figure 4-14 Wireless Security
¾ Disable Security - The wireless security function can be enabled or disabled. If disabled, the
wireless stations will be able to connect the device without encryption. It is recommended
strongly that you choose one of following options to enable security.
¾ WEP - Select 802.11 WEP security.
• Type - You can select one of following types,
1) Automatic - Select Shared Key or Open System authentication type automatically
based on the wireless station's capability and request.
2) Shared Key - Select 802.11 Shared Key authentication.

TP-Link TL-WA5210G Specifications

General

2.4 GHz	Yes
Modulation	DBPSK, DSSS, OFDM, QPSK
Frequency band	2.4 - 2.4835 GHz
Receiver sensitivity	802.11g 54M: -76dBm 48M: -78dBm 36M: -82dBm 12M: -91dBm 9M:-92dBm, 802.11b 11M:-90dBm 5.5M:-92dBm 1M:-98dBm
Maximum data transfer rate	54 Mbit/s
Networking features	Fast Ethernet
Vertical beam width	60 °
Transmit power range	20/27 dBm dBmW
Horizontal beam width	30 °
Maximum operating distance	50000 m
Compliance industry standards	IEEE 802.11g, IEEE 802.11b
Supported data transfer rates	54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps
Antenna connector type	RP-SMA
Antenna gain level (max)	12 dBi
Internal	No
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-AES, WPA-PSK, WPA2, WPA2-PSK
Power requirements	12VDC / 1.0A
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	265 x 120 x 83 mm
