57
shown in Figure 4-55, whi
ch is helpful for managing the access authority.

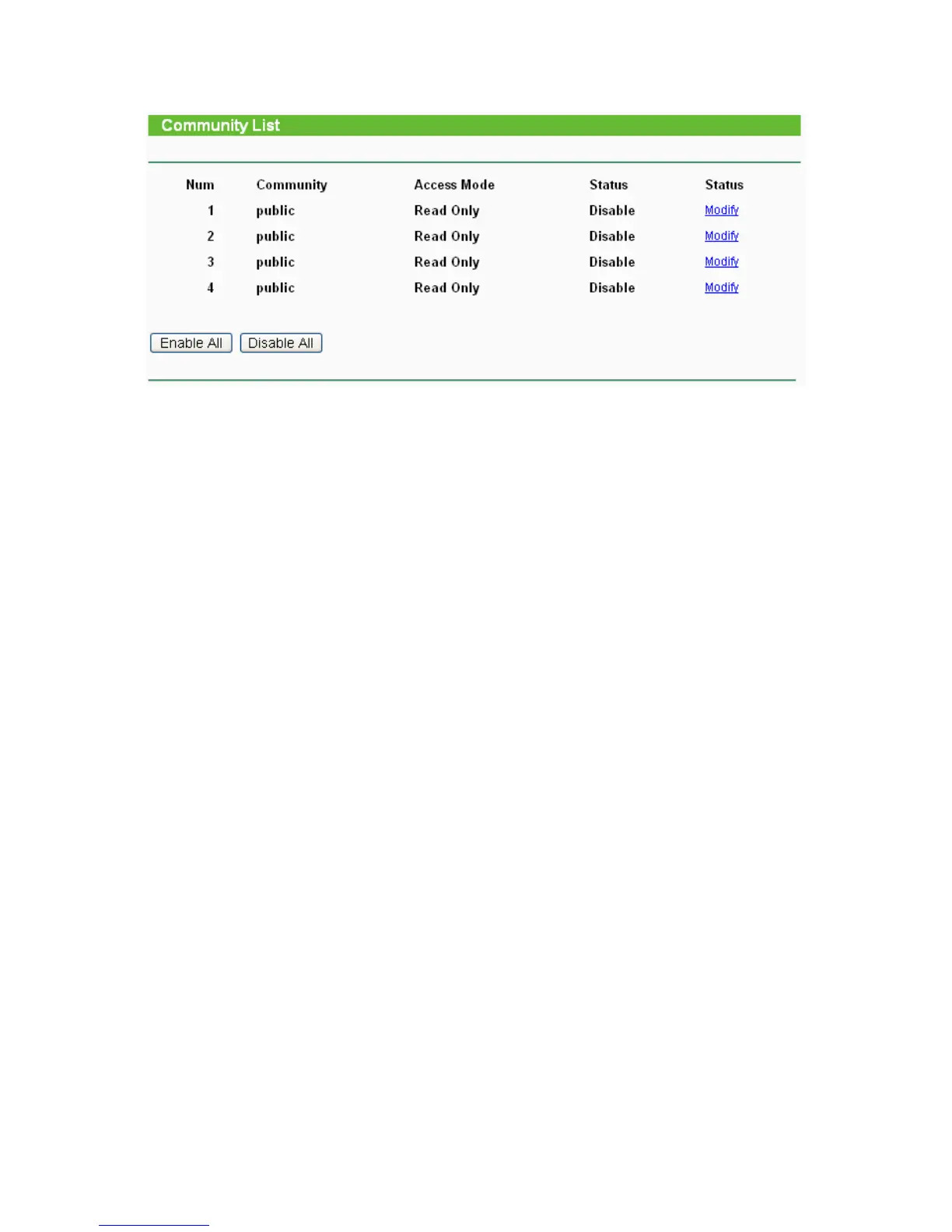

Figure 4-55 Community Setting
¾ Num - Displays the entry number of the community.
¾ Community - Defines the password used to authenticate the management station to the
device.
¾ Access Mode - This field allows you to specify the authority of the community. Read Only
means the community is only permitted to read the device configuration. Read&Write means
the community has the authority to read and change the device configuration.
¾ Status - This field allows you to enable/disable the corresponding entry.
¾ Modify - This field allows you to modify an entry.
To modify a community setting entry:
1. Find the desired entry in the table.
2. Click Modify as desired on the Modify column.
3. Modify the contact of community
4. Select the Read Only or Read&Write option in the Access Mode pull-down list.
5. Select the Enabled option in the Status pull-down list.
6. Click the Save button.
Click the Enable All button to make all entries enabled.
Click the Disable All button to make all entries disabled.
4.14.2 SNMP System Setting
Selecting SNMP > SNMP Setting will allow you to configure some parameters for System
(iso.org.dod.internet.mgmt.mib-2.system) as shown in Figure 4-56.
