4. SHIFTERS AND RELATED PARTS.
4.1. CONSTRUCTION

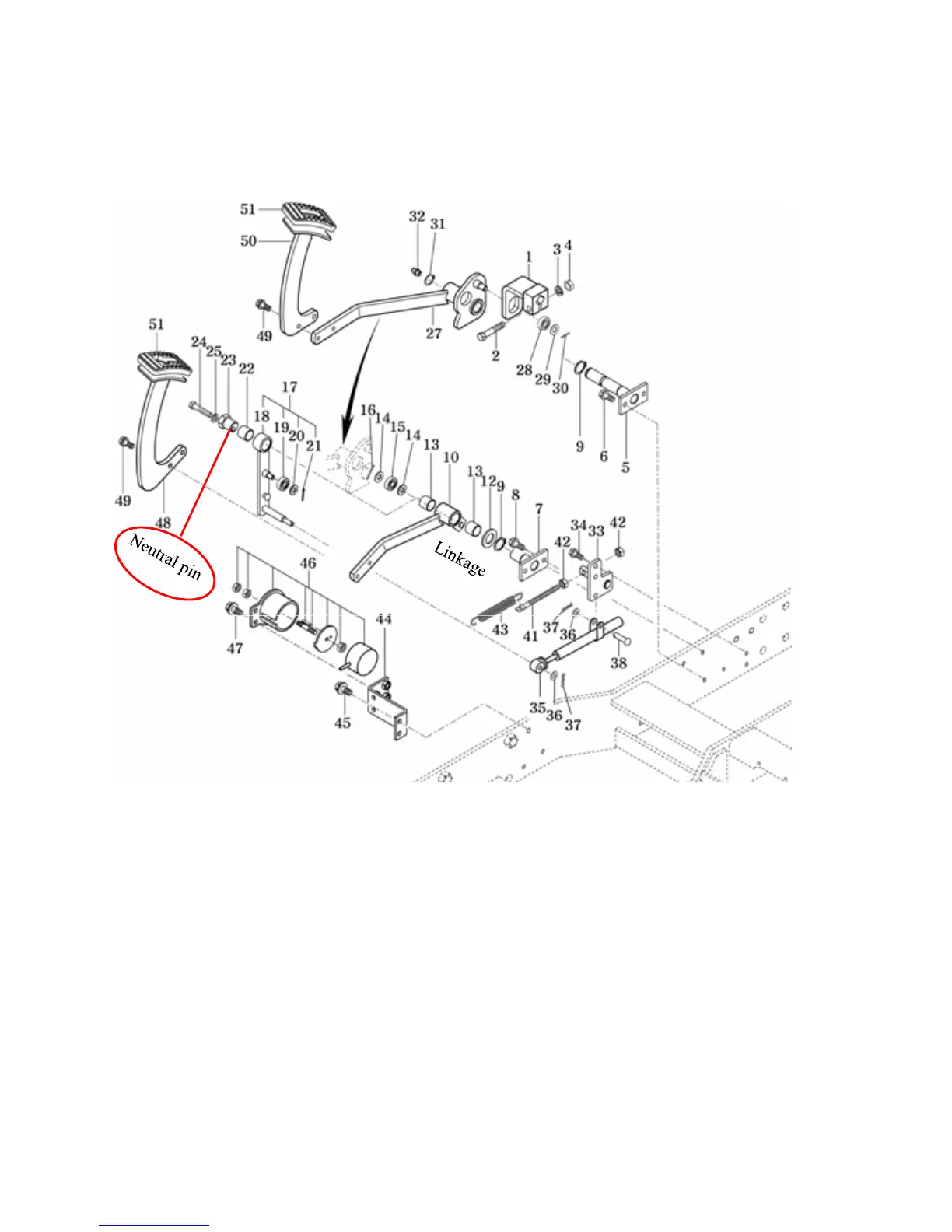

(1) Forward and reverse control linkage mechanism.
Holder comp
Fig.5-37
Magnetic cruise
1. HOLDER COMP
2. BOLT , HEX
3. WASHER , SPRING
4. NUT , HEX/2
5. PIN COMP, REVERSE
6. BOLT , HEX/S
7. PIN COMP , FORWARD
8. BOLT , HEX/S
9. C-RING , SHAFT
10. ARM COMP , FORWARD
12. WASHER , PLAIN
13. BUSH , 20X23X20
14. WASHER , PLAIN
15. BEARING , BALL
16. PIN , SPLIT
17. CAM SUB ASSY
18. ARM COMP , CAM
19. BEARING , BALL
20. WASHER , PLAIN
21. PIN , SPLIT
22. BUSH , 20X23X20
23. PIN , NEUTRAL
24. BOLT , HEX FINE
25. WASHER , SPRING
27. ARM COMP, REVERSE
28. BEARING , BALL
29. WASHER , PLAIN
30. PIN , SPLIT
31. C-RING , SHAFT
32. NIPPLE , GREASE/A-M6F
33. PIN COMP , SPRING
34. BOLT , HEX/S
35. DAMPER , OIL
36. WASHER , PLAIN
37. PIN , SNAP
38. PIN , YOKE
41. ROD , CHAIN(TENSION)(82)
42. NUT , HEX/2
43. SPRING , RETURN
44. BRACKET COMP , CRUISE
45. BOLT , HEX/SP
46. MAGNETIC ASSY , CRUISE
47. BOLT , HEX/SP
48. PEDAL COMP, FORWARD
49. BOLT , HEX/S
50. PEDAL COMP, REVERSE
51. PAD
5-24
