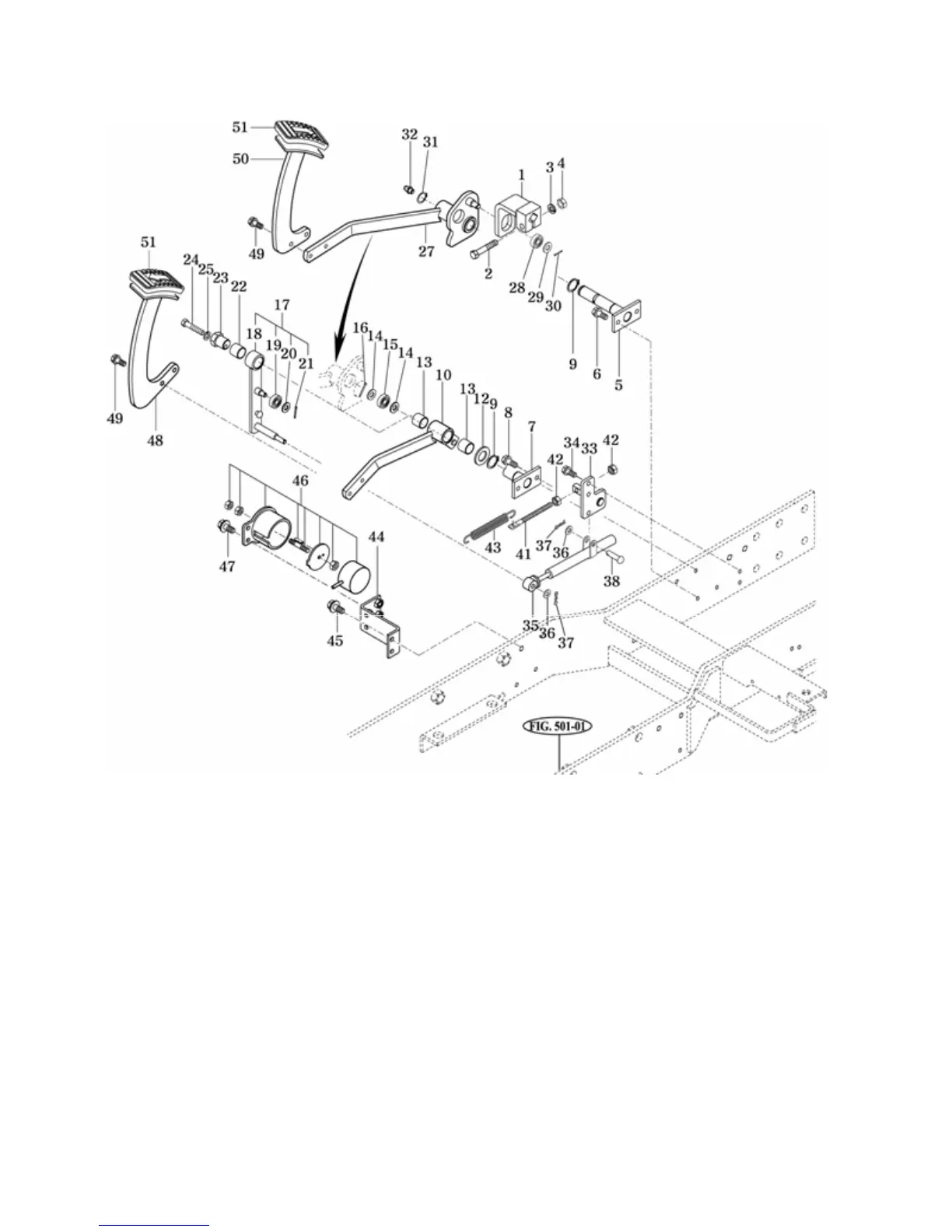

5.Hydrostatic control linkage
1.Holder comp 2.Bolt 3.Washer spring 4.Nut 5. PIN COMP, REVERSE
6. BOLT 7. PIN COMP , FORWARD 8. BOLT 9.C-RING 10. ARM COMP , FORWARD
11.Washer 12.WASHER 13. BUSH , 20X23X20 14.WASHER 15. BEARING
16. PIN , SPLIT 17.CAM SUB ASSY 18.ARM COMP , CAM 19.BEARING , BALL 20.WASHER , PLAIN
21.PIN , SPLIT 22.BUSH , 20X23X20 23.PIN , NEUTRAL 24.BOLT , HEX FINE 25.WASHER , SPRING
27.ARM COMP, REVERSE 28.BEARING , BALL 29.WASHER , PLAIN 30.PIN , SPLIT
31.C-RING , SHAFT 32.NIPPLE , GREASE/A-M6F 33.PIN COMP , SPRING
34.BOLT , HEX/S 35.DAMPER , OIL 36.WASHER , PLAIN
37.PIN , SNAP 38.PIN , YOKE 41.ROD , CHAIN(TENSION)(82) 42.NUT , HEX/2
43.SPRING , RETURN 44.BRACKET COMP , CRUISE 45.BOLT , HEX/SP
46.MAGNETIC ASSY , CRUISE 47.BOLT , HEX/SP 48.PEDAL COMP, FORWARD
49.BOLT , HEX/S 50.PEDAL COMP, REVERSE 51.PAD
