TYM T233 HST User Manual

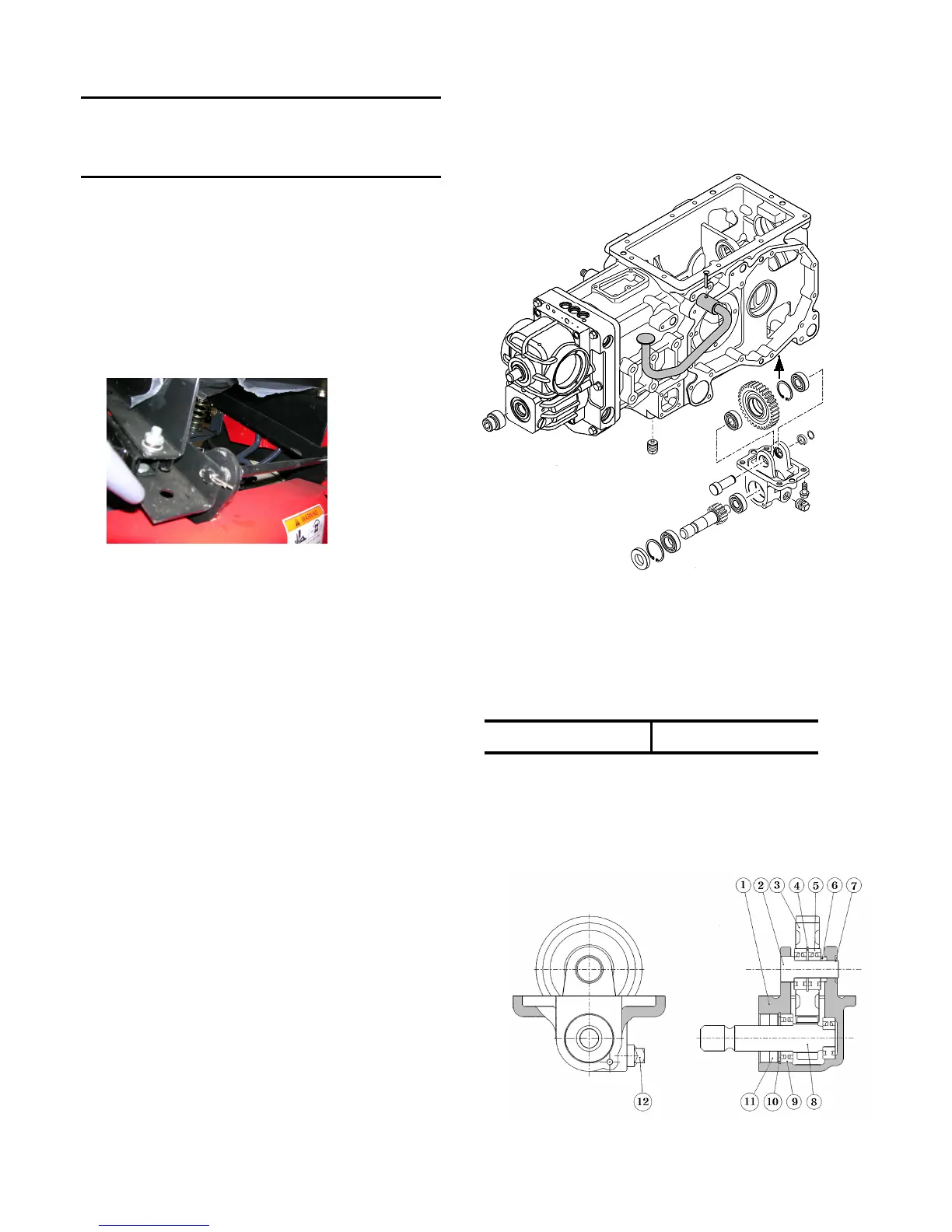

5.SEPARATION OF THE TRANSMISSION AND MID PTO GEARS
Parts which can be inspected during This
operation
-MID PTO gears.
Inspection and service of the rear transmission
should be performed following the instructions
in the paragraph : 5 SEPARATION OF THE
REAR TRANSMISSION AND SPACER
TRANSMISSION
1)Removal
(1) Remove the operator’s seat.
FIG.2-29 operator’s seat
(2) Remove the position lever
(15) Detach the MID PTO case assembly from
the transmission.
FIG.2-30 MID PTO case
(2) Remove the position lever
(3) Remove the lever guide(RH)
(4) When the tractor is equipped with an
optional remote control valve,remove the
remote control lever and related parts from
the bracket.
(5) Remove the back panel
(6) Remove the tank cover
(7) Remove the wiring for the rear combination
lamps and trailer socket coupler.
(8) Drain the fuel of fuel tank.
(9) Remove the fuel tank and tank stay bracket .
(10) Detach the delivery pipe from the cylinder
case.
(12) Remove the slow-return check valve along
with the shaft.
(13) Remove the 3-point lift link and related
parts from the lift arm.
(14) Remove the MID PTO case tightening
bolts.
2) Installation
Reassemble the reverse order of disassemble.
(1) Tighten the MID PTO case on the rear
transmission case to the specified torque.
FIG.2-31 MID PTO case
Tightening torque 2.45~3.43 Kgf.m
(2) After reassembly, make sure that the system
functions properly.
(3) apply adhesive (TB1215) at the surface of
Mid PTO case when assemble on transmission
2-13
