TYM T233 HST User Manual

5.GEAR PUMP
1) GENERAL DESCRIPTION
This pump induces fluid from one side and delivers it from the each side, by rotating two gears
meshed with each other. The actual delivery is as mentioned below, considering the consequences of
fluid temperature and volume efficiency in accordance with revolution speed. That is single pump
system.
2) Gear pump
9-10

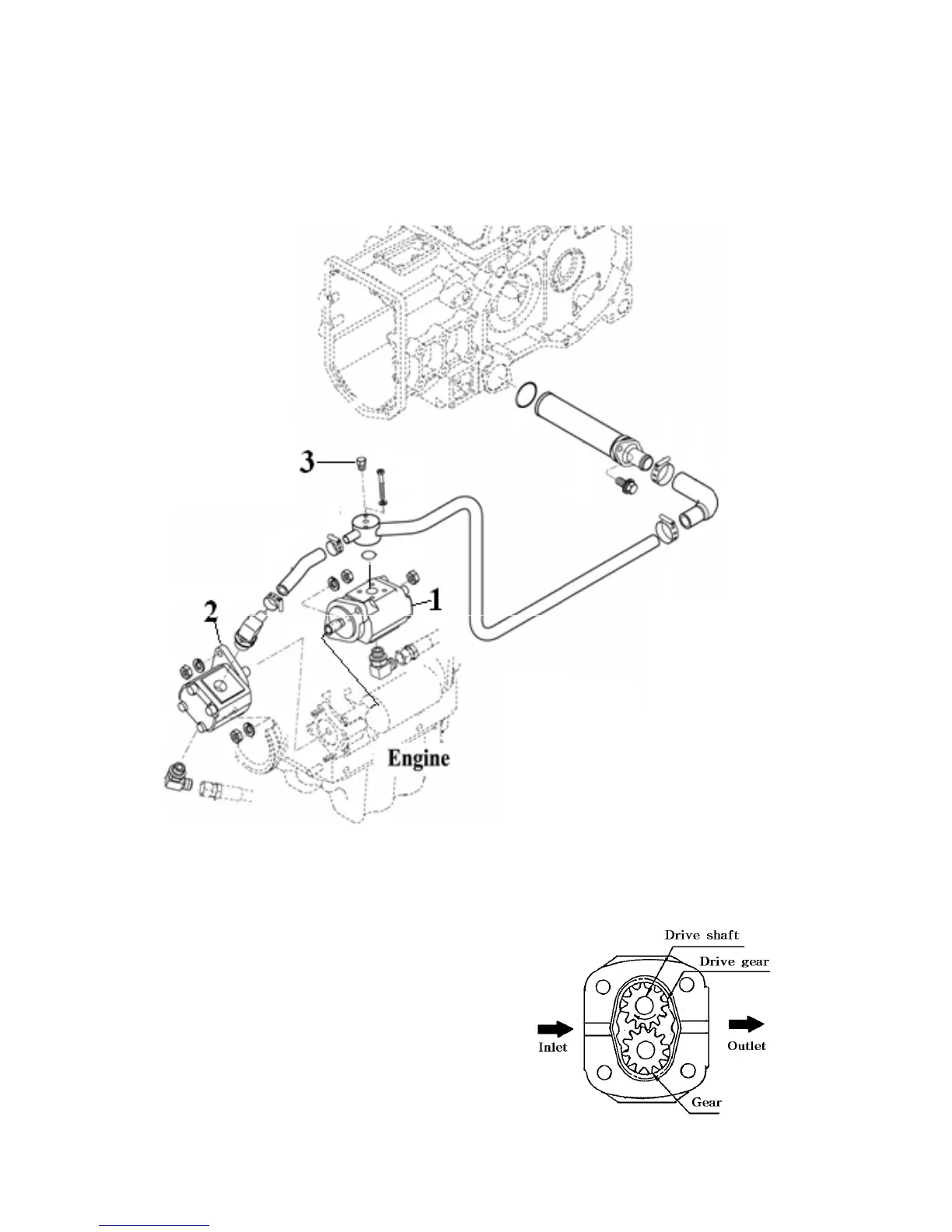

1. Main pump 2. Steering pump 3.Drain plug
3) OPERATIONS.
This pump induces fluid from one side and
delivers it from the each side, by rotating
two gears meshed with each other. The
actual delivery is as mentioned Fig.9-13,
Considering the consequences of fluid
Temperature and volume efficiency in
accordance with revolution speed.
Fig. 9-12 Gear pump
Fig. 9-13 Gear pump
