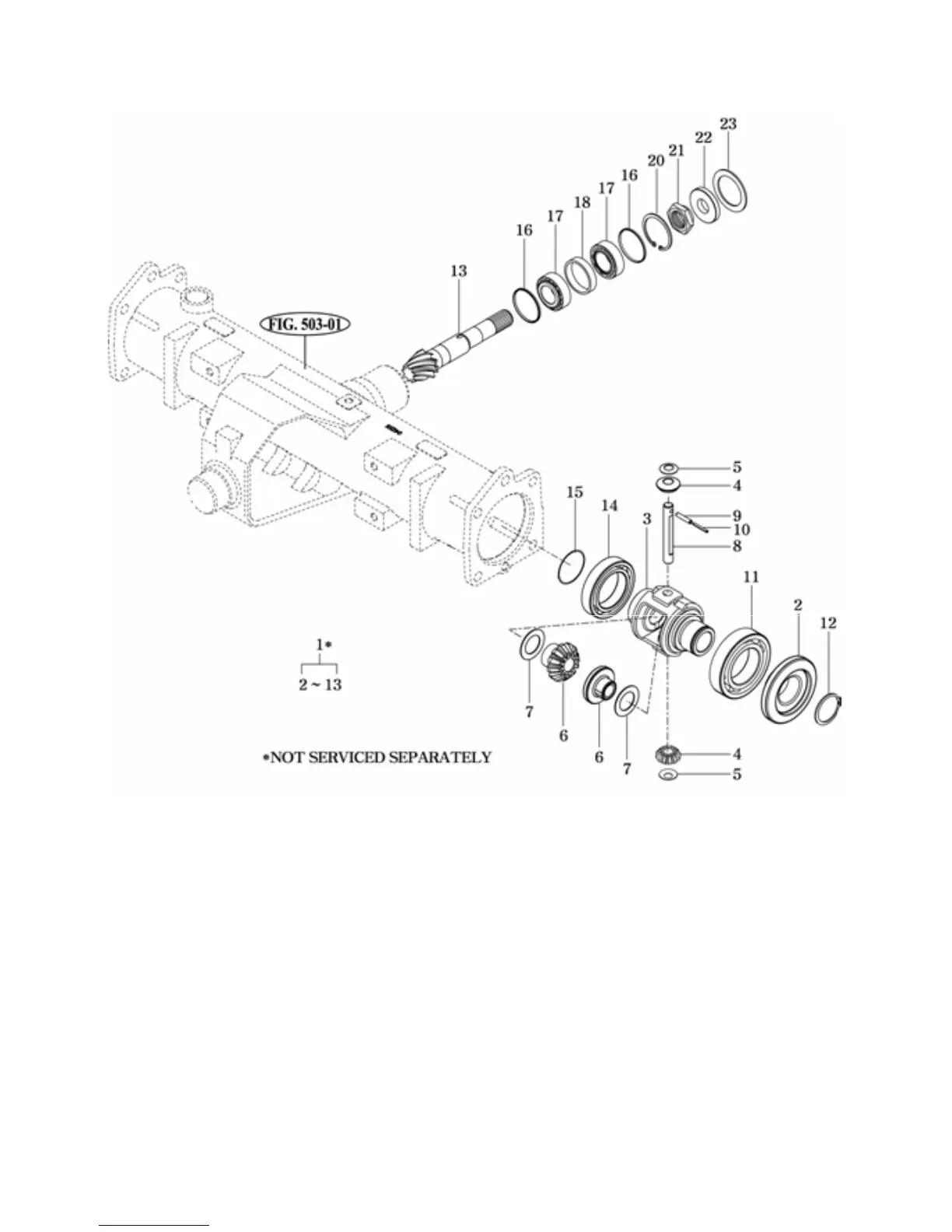

2. FRONT DIFFERENTIAL
Fig.6-10
1.DIFF ASSY , FR 2.GEAR , BEVEL 25T 3.CASE , FR DIFF
4.PINION , DIFF 10T 5.WASHER , THRUST 6.GEAR , 20T DIFF SIDE
7.WASHER , THRUST 8.SHAFT , DIFF PINION 9.PIN , SPRING 5X25
10.PIN , SPRING 3X25 11.BEARING , BALL 6210 12.C-RING , SHAFT 40
13.PINION , BEVEL 8T 14.BEARING , BALL 6010 15.SHIM , B
16.SPACER 17.BEARING , TAPER ROLLER 33005J
18.COLLAR 20.C-RING , HOLE 47 21.NUT , M25
22.SEAL , OIL/D 204707 23.SPACER
6-6
