TYM T233 HST User Manual

SECTION 3.DISASSEMBLY,INSPECTION,AND REASSEMBLY
Separate the rear axle housing from the rear transmission referring to paragraph SECTION 3.
SEPARATION OF MAJOR BLOCKS in Chapter 2
1) REAR AXLE HOUSING AND BRAKE SYSTEM
7-3

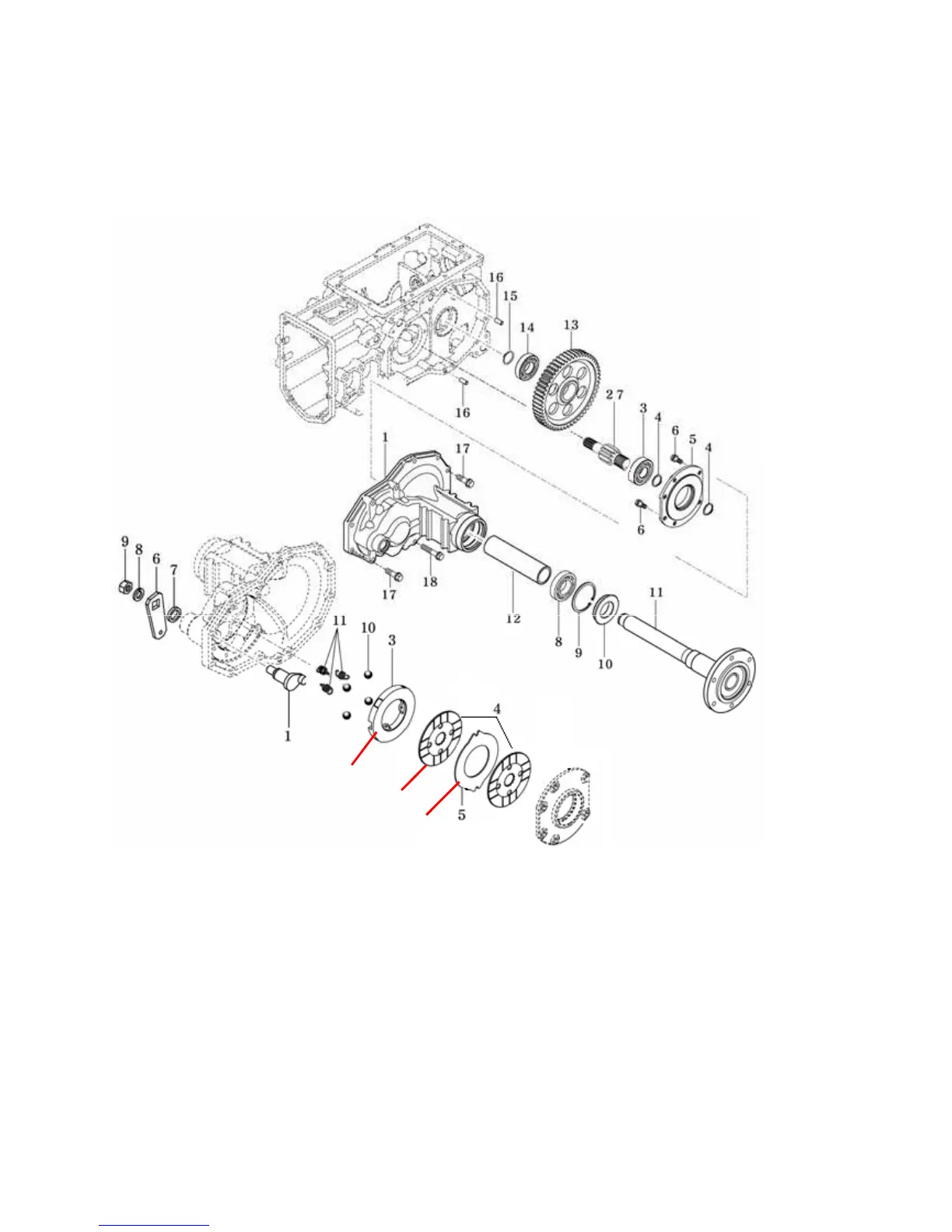

Fig.7-2
Metal brake
Friction plate
separator plate
1.HOUSING, AXLE 2.SHAFT , WHEEL PINION LH 3.BEARING , BALL
4.C-RING , SHAFT 5.COVER , BRAKE 6.BOLT , HEX/S
7.SHAFT , WHEEL PINION RH 8.BEARING , BALL
9.C-RING , HOLE 10.SEAL , SHAFT 11.SHAFT , WHEEL
12.COLLAR , 51X5X198 13.GEAR , SPUR 71T 14.BEARING , BALL
15.C-RING , SHAFT 16.PIN , PARALLEL/A 17.BOLT , HEX/S
18.BOLT , HEX/S
1.CAM
2.METAL ,BRAKE LH
3.METAL ,BRAKE RH
4.PLATE COMP , DISC
5.PLATE , SEPARATE
6.ARM , BRAKE
7.SEAL , OIL/D
8.WASHER , SPRING
9.NUT , HEX/1
10.BALL , STEEL
11.SPRING , RETURN
Fig.7-3
