TYM T233 HST User Manual

SECTION 3. DISASSEMBLY,INSPECTION,AND REASSEMBLY
1. CENTER PIVOT
6-3

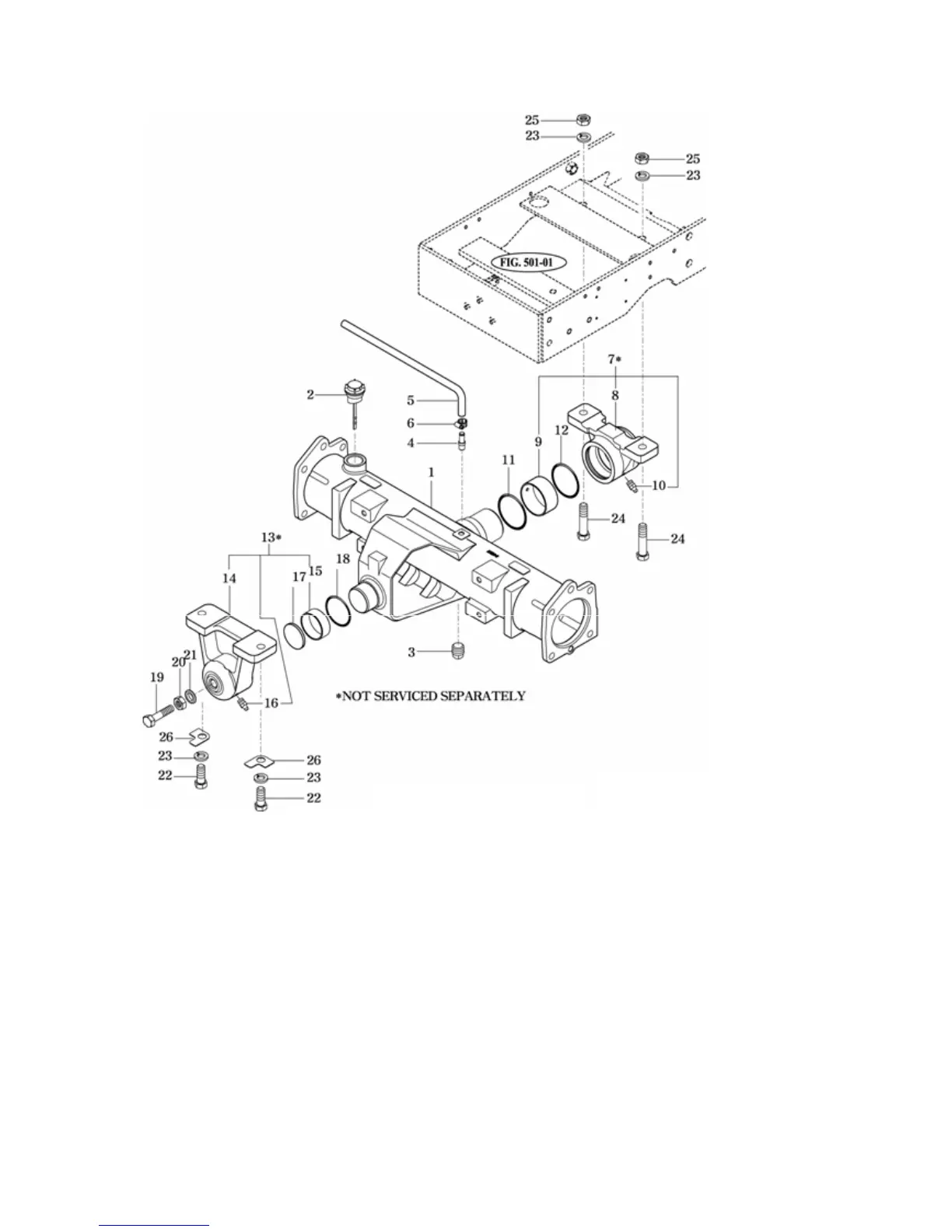

Fig.6-3
1.HOUSING, FRONT AXLE 2.CAP ASSY , OIL 3.PLUG , SQUARE R1/2
4.CONNECTOR 5.HOSE . 500 6.CLIP , HOSE D=12.5
7.METAL ASSY , RR PIVOT 8.METAL , RR PIVOT 9.BUSH ,
60X65X30
10.NIPPLE , GREASE/B-PT 11.O-RING , G65 12.O-RING , G60
13.METAL ASSY , FR PIVOT 14..METAL , FR PIVOT 15.BUSH , 50X55X20
16.NIPPLE , GREASE/B-PT 17.SPACER (F) 18.O-RING , G55
19.BOLT , HEX M16X50 20.NUT , HEX/3 M16 21.WASHER , SEAL
22.BOLT , HEX M14X35 23.WASHER , SPRING M14 24.BOLT , HEX M14X50
25.NUT , HEX/2 M14 26.WASHER
