4.SEPARATION OF THE TRANSMISSION
AND REAR AXLE HOUSING
Parts which can be inspected during This operation
- Diff Lock
- Brakes
- Final gears
- MID PTO gears.
1) Removal
As both sides can be disassembled in the same
way,only side with the diff-lock installed will be
explained here.
(1) Drain the transmission case of oil
(2) Lift up the transmission and remove the
rear wheel on the diff-lock side.
(4) Remove the brake rods.
(5) Remove the 3-point linkage and related parts.

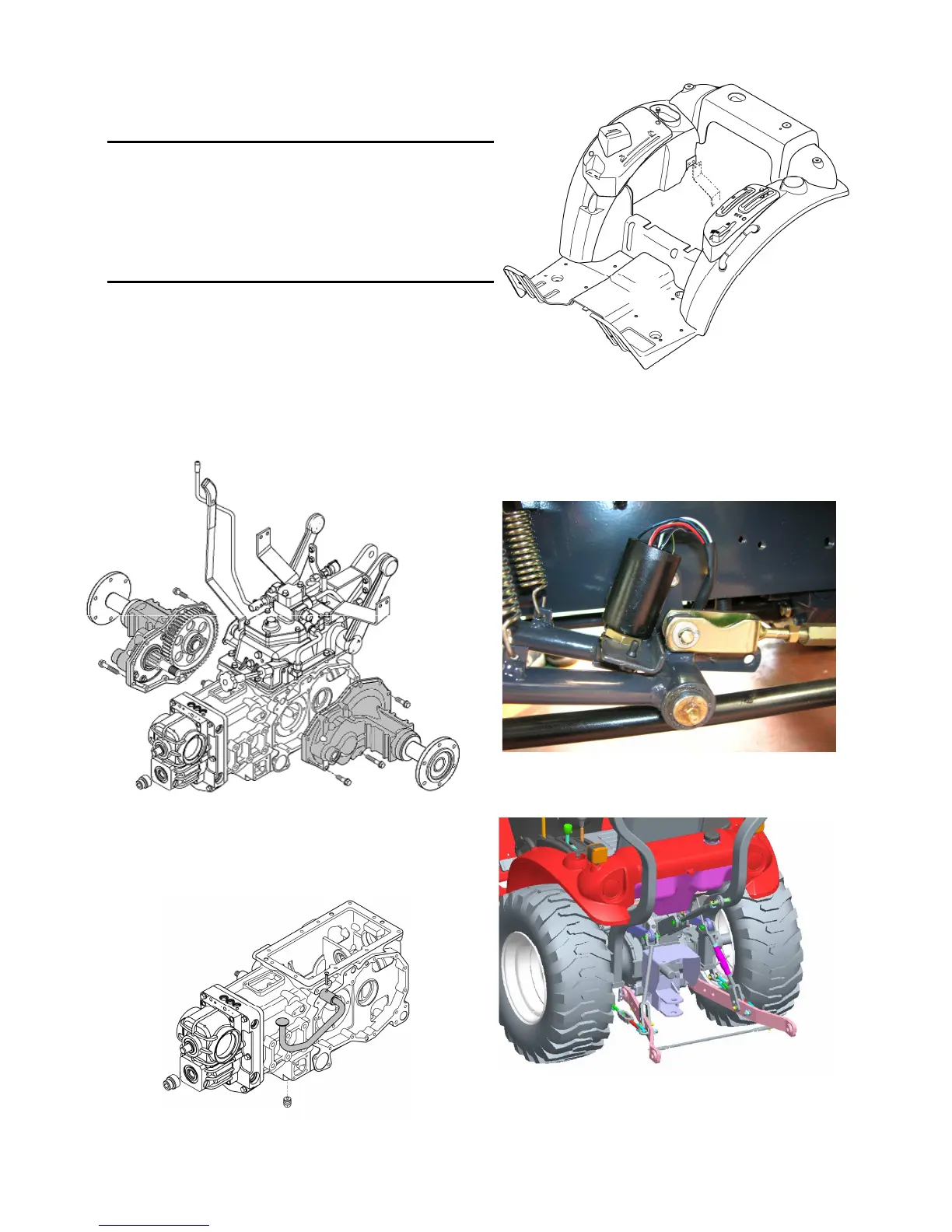

FIG.2-24 Diff-lock pedal
(3) Remove the diff-lock pedal from transmission
FIG.2-24 Diff-lock pedal
FIG.2-23 Rear wheel and Transmission
FIG.2-25 Brake Rods
FIG.2-26 3-point linkage and related parts
2-11
