TYM T233 HST User Manual

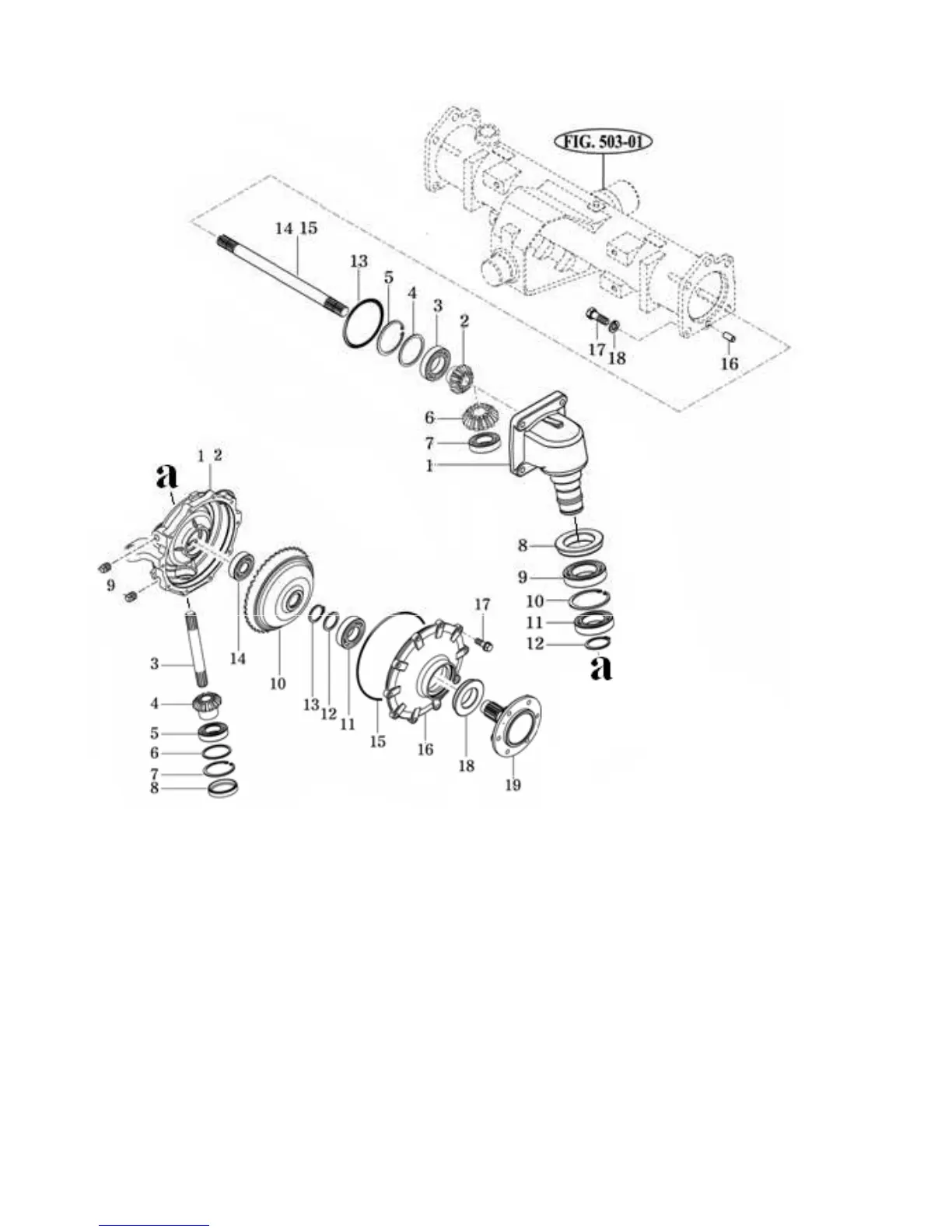

3. FINAL CASE
ⓐ. Front gear case 1.
1.CASE , FINAL DRIVE A
2.GEAR , BEVEL 11T
3.BEARING , BALL 6007
4.COLLAR , 53X62X2
5.C-RING , HOLE 62
6.GEAR , BEVEL 18T
7.BEARING , BALL 6006
8.SEAL , OIL
6-10
Fig.6-18
9.BEARING , BALL 6009
10.C-RING , HOLE 68
11.BEARING , BALL 6008
12.C-RING , SHAFT 40
13.O-RING , S 95
14.SHAFT , LH
15.SHAFT , RH
16.PIN , PARALLEL/A 10X20
17.BOLT , HEX M12X35
18.WASHER , SPRING M12
1.CASE , RH FINAL DRIVE B 2.CASE , RH FINAL DRIVE B
3.SHAFT 4.GEAR , BEVEL 8T
5.BEARING , BALL 6006 6.SHIM
7.C-RING , HOLE 55 8.CAP , 55
9.PLUG , SQUARE R3/8 10.GEAR , BEVEL 44T
11.BEARING , BALL 6207 12.WASHER , 35X45X2
13.C-RING , SHAFT 35 14.BEARING , BALL 6305
15.O-RING , S210 16.COVER , WHEEL SHAFT
17.BOLT , HEX/S M8X25 18.SEAL , SHAFT
19.SHAFT , FRONT WHEEL
