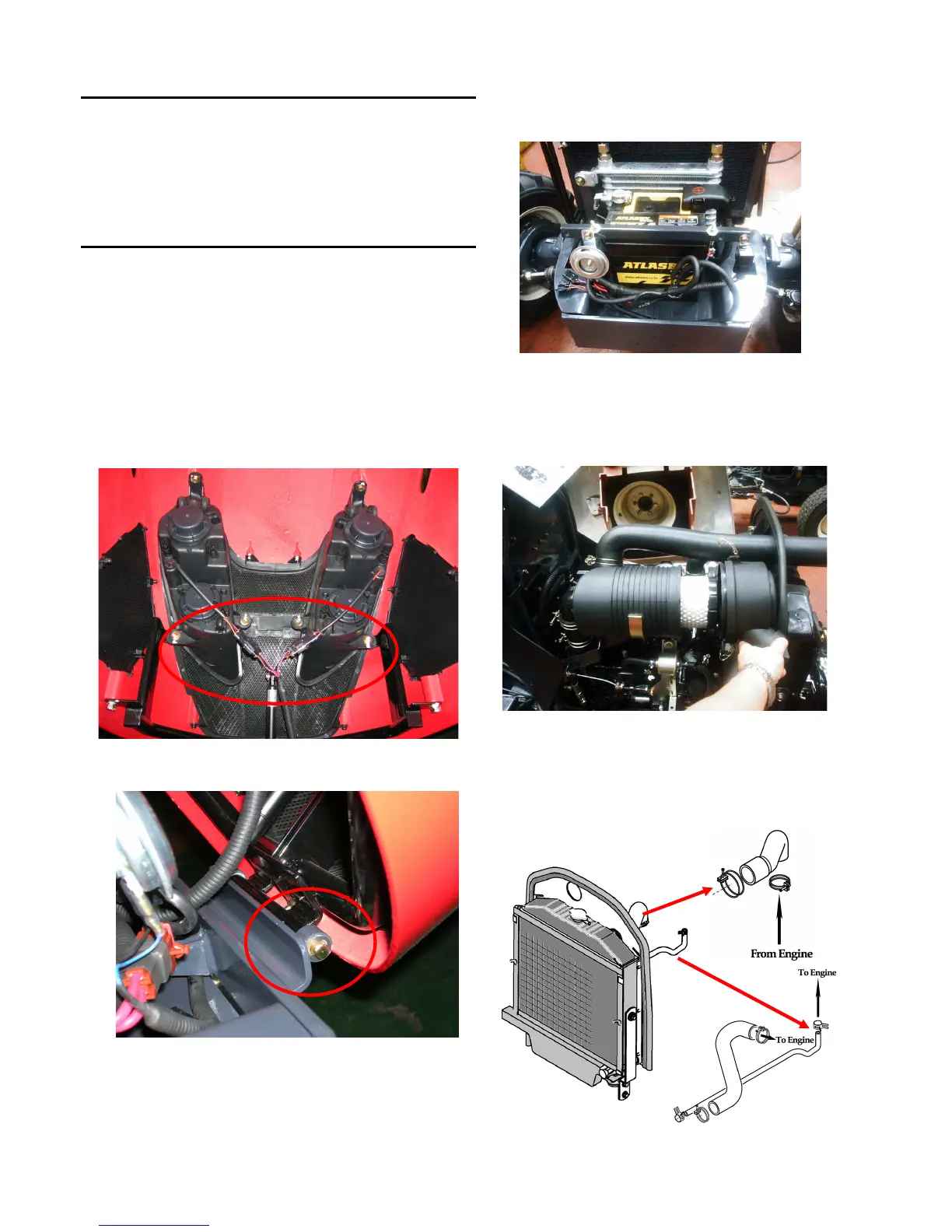

2.SEPARATION OF THE ENGINE AND THE FRONT AXLE BRACKET
Parts which can be inspected during This operation
-Air cleaner
-Radiator
-Power steering system
-Oil cooler
-Engine front part.
(1) Removal
1) Hold or support the engine with a crane or
stands.
2) Hold or support the front bracket or the axle
bracket in a manner that the part other than
the engine can be removed if required.
3) Open the front grille
4) Detach the head light wiring.
5) Remove the pin that hold the engine Hood.
6) Disconnect the positive and negative battery
cables.
FIG.2-7 Battery
7) Remove the other wiring
8) Remove the inlet pipe from the air cleaner.
9) Remove the air cleaner.
FIG.2-5 Wiring harness
Note:
Here the air cleaner can be removed as an
assembly.
10) Remove the upper hose,lower hose.and
drain hose from the radiator.
FIG.2-6 Engine Hood retaining Pin
FIG.2-9 upper hose,lower hose
2-6
