TYM T233 HST User Manual

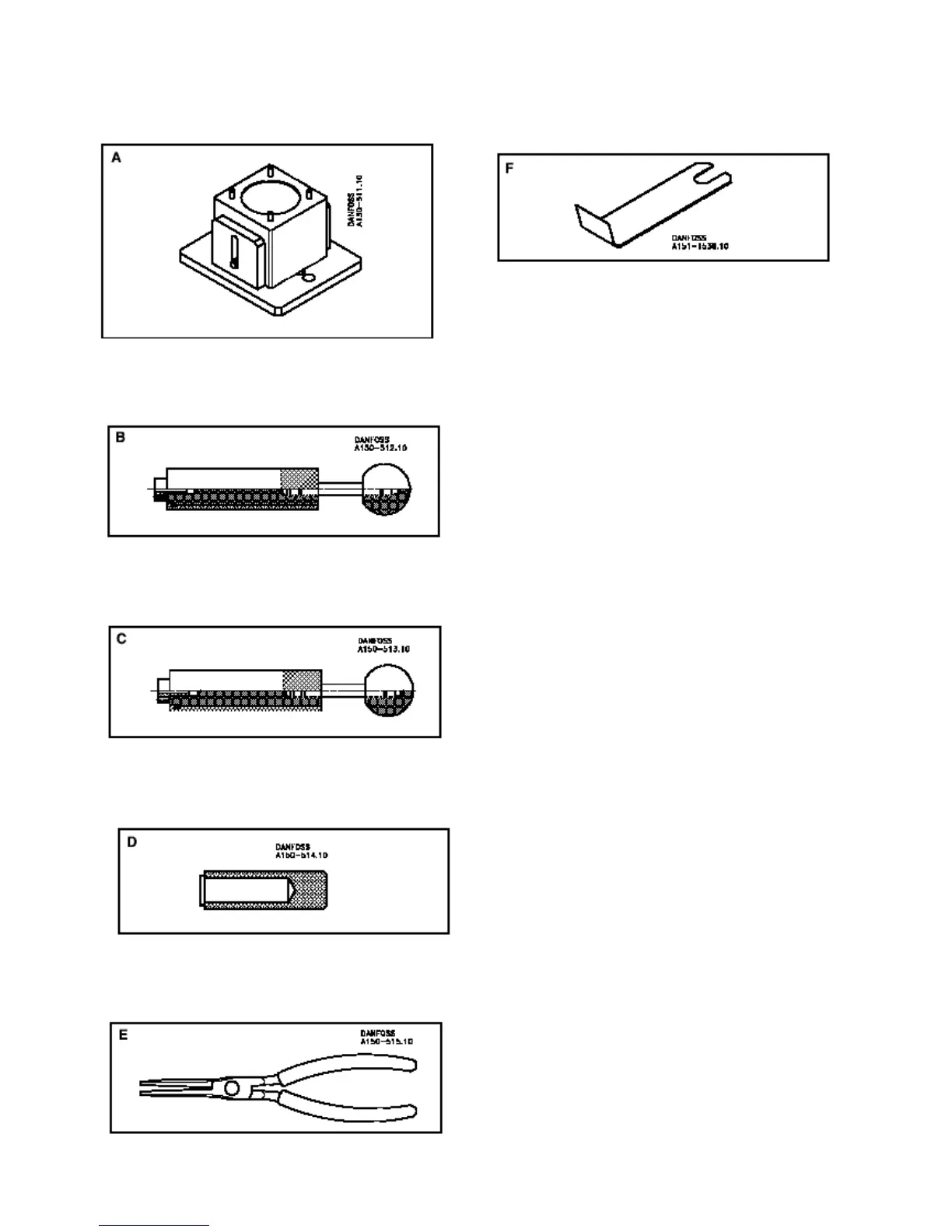

2.SPECIAL TOOLS
A.Holding tool, code no. SJ150L9001-01
B .Assembly tool for shaft seal ø17.5,
code no. code no. SJ150L4011 - 01
C. Assembly tool for shaft seal ø19,2,
code no. SJ150L4012 - 01
F. Fork for fitting cardan shaft (OMM)
SJ 151G9000 -1
G .Ordinary hand tools.
Socket spanner (5/8 in)
Ratchet spanner, 1/2”
Torque wrench: 0-70 Nm (0-7 da Nm)
Allen keys: 5 & 8 mm a/flats
Small screwdriver, ground sharp.
Pincers
3. Disassembly
Separate the orbitrol referring to Fig.8-2 of
SECTION .Disassembly,Inspection,And
Reassembly
1.
Major component of steering
D .Assembly tool for dust seal ring,
code no. SJ150L0396 -01
E. Pliers for piston in pressure relief valve,
code no. SJ150-9000 -25
Reassembly
1.
Major component of steering
valve (orbitrol)
STEP 1.
- Column
If there is a steering column on OSPM, place the
unit in the holding tool, on the four locating
pins with steering column upwards. Dismantle
the steering column.
STEP 2.
-Pressure relief valve (30, 31)
If there is a pressure relief valve in OSPM,
remove the plastic plug from the adjusting screw
and unscrew with the 5 mm a/flats Allen key.
Remove the spring and use special pliers-lift the
valve cone out of the housing.
Lift OPSM clear of the holding tool, turn it so
that the output shaft points downwards and place
it in the holding tool again.
Note, the locating pin in the tool must engage
with the OSPM housing.
8-7
