SECTION 3. MAJOR COMPONENT OF THE HYDRAULIC SYSTEM
1.HYDRAULIC SYSTEM
9-3

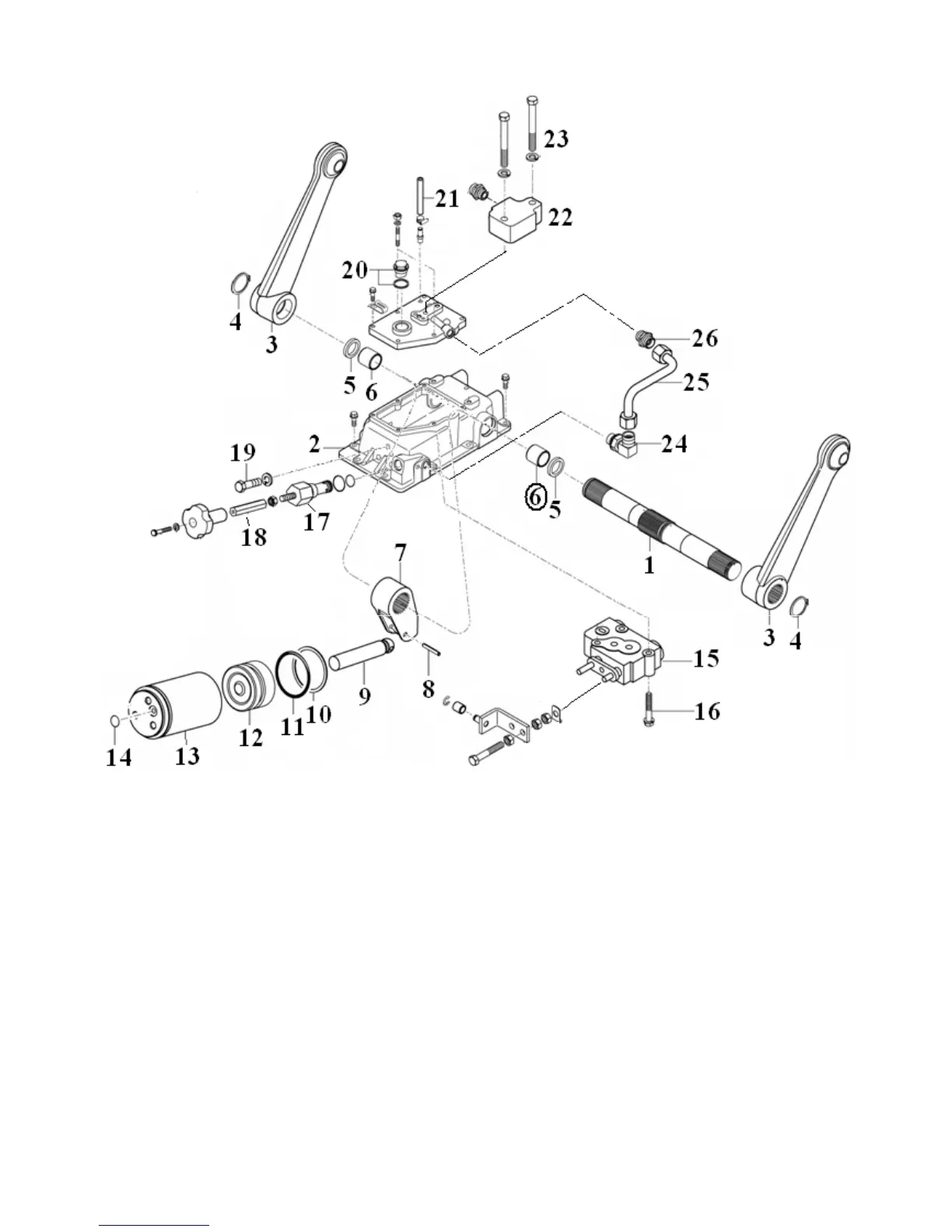

1.Shaft,lift 2.Cylinder case 3.Arm comp, lift 4.Snap ring 5.Seal oil/D354805
6.Bush 35x42x40 ⑥Bush 40x46x40 7.Crank, lift 8.Spring pin (6x40) 9.Rod, piston
10.Ring 11.O-ring P70 12.Piston, hyd. 13.Cylinder comp 14.O-ring
15.Valve assy, main control 16.Bolts (M8x45) 17.Valve assy, flow control
18.Shaft, slow return(76) 19.Bolts (M12x45) 20.Cap assy
21.hose 500 22.Cover, exterior hyd 23.Bolts (M10x50)
24.Elbow, PF3/8 M18 25.Pipe comp, cylinder 26.Union
Fig.9-2
To Next Page
