Steering
115

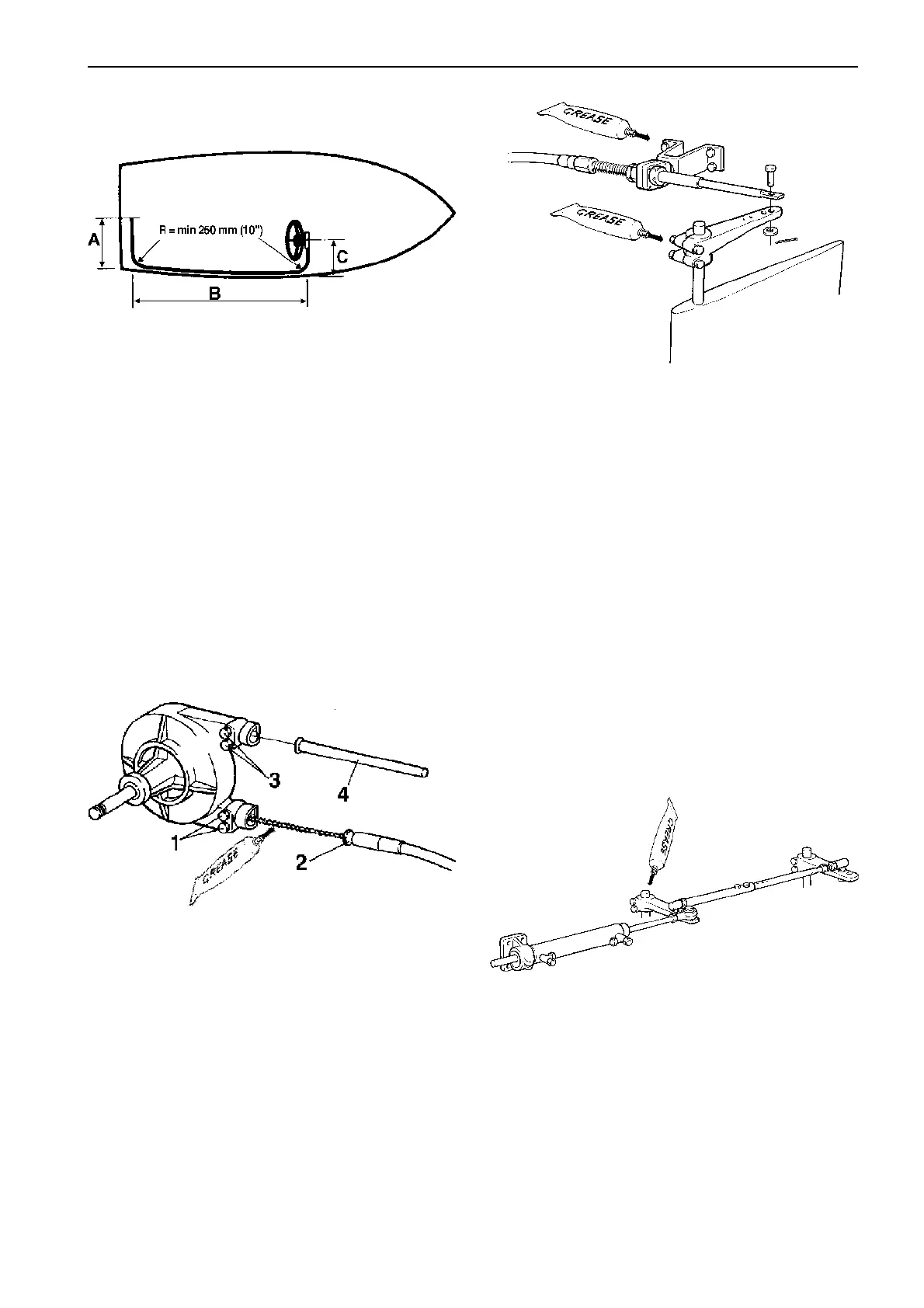

Install the cable into the steering head.
Cable routing
Select a correct length of the steering cable.
A + B + C = the length of the steering cable.
When installning a DS-unit make sure it is located in
a dry and easy accessable location. Prefeably it
should be located close to the steering tiller arm.
Finally, clamp the steering cable all the way. Distance
between the clamps approx 250 mm (10").
NOTE! Bend the steering cable with as soft a bend as
possible. Minimum bending radius = 250 mm (10").
Assemble the steering cable to the transom and the
steering tiller arm.
Hydraulic hose routing
Install the hydraulic oil pipes. Minimum bending radius
60 mm (2½").
Make sure that the pipes do not come into contact
with hot surfaces. Fix the pipes with plastic stripes.
Distance between stripes approx. 250 mm (10"). Metal
clamps must not be used!
Cut the pipes off to the correct lengths. Use a knife to
avoid swarf and burrs. Make sure that the pipe ends
are at right angles and are completely clean.
Hydraulic steering system with tie bar
Assemble the hydraulic cylinder to the steering tiller
arm.
