Power take-off
125
Recommendations to front Power Take-off with drive shaft
TAMD series: 200 Nm (147 lbf ft)
KAMD series: 100 Nm (73 lbf ft)
Extra alternators
In order to facilitate the installation of extra alternators
tailor made kits are available from Volvo Penta.
For detailed installation instructions please see the
mounting instruction that is delivered with the kits.
KAMD43, KAMD44, KAMD300
Alternator 12V 60 Amp.
24V 40 Amp.
This type of power take off may be used when more
power than allowed with a crankshaft mounted pulley
is required or the equipment is considered too heavy
to be fitted to the engine.

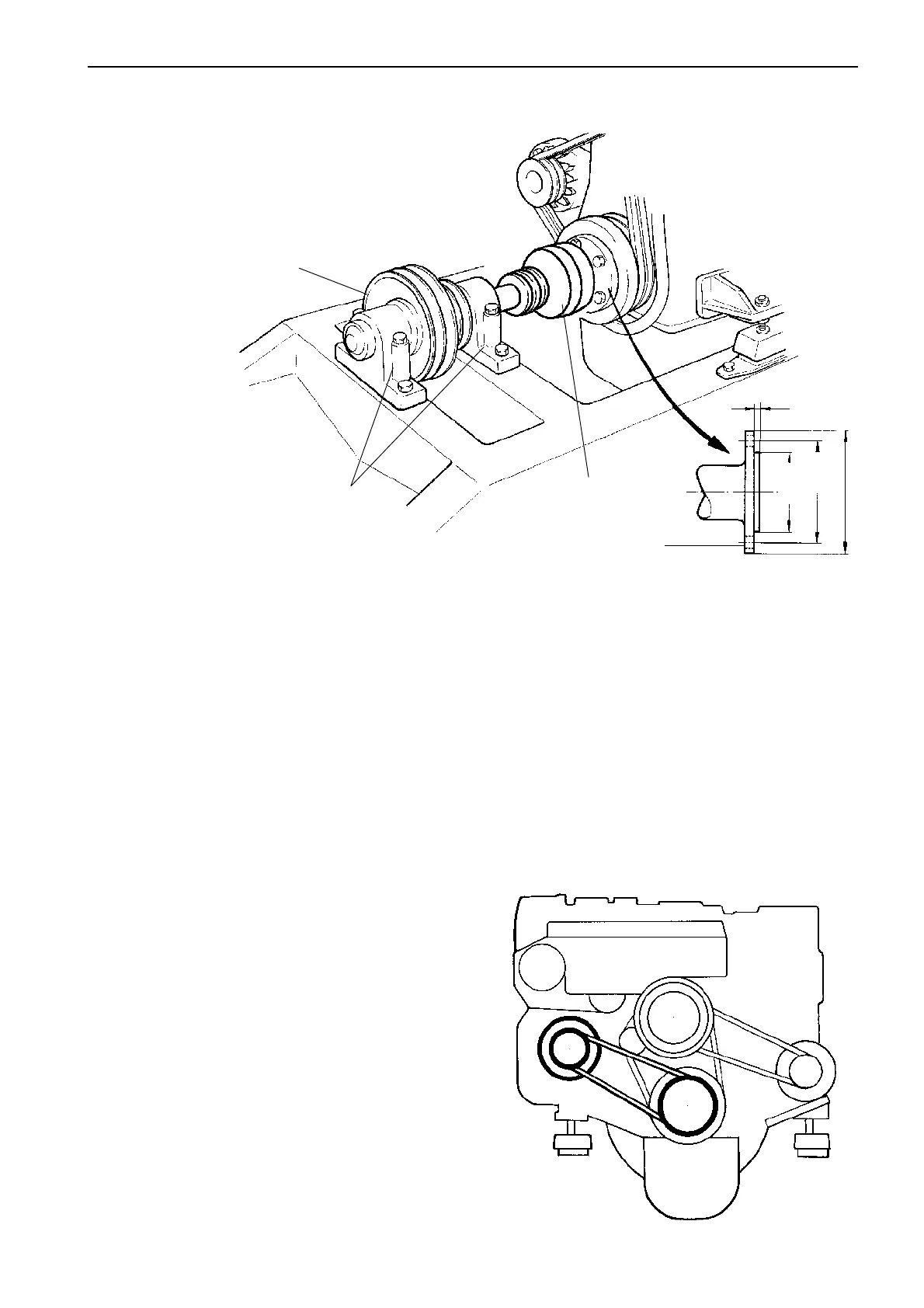

The figure shows one concept of how to utilise the
crankshaft power in-line when all side thrusts are tak-
en up by the bearings (1). The torque figures are maxi-
mum levels. Flexible coupling (2) must be calculated
by the coupling supplier.
5 (0.2)
62 (2.4)
80 (3.2)
Max. 100 (3.9)
9 (0.35) x 6
Dimensions in mm (in)
1. Bearings
2. Flexible coupling
3. Belt pulley
1
2
3
