Controls
120
Connecting the gear-shift cable to the
reverse gear
Installing the gear-shift
control cable

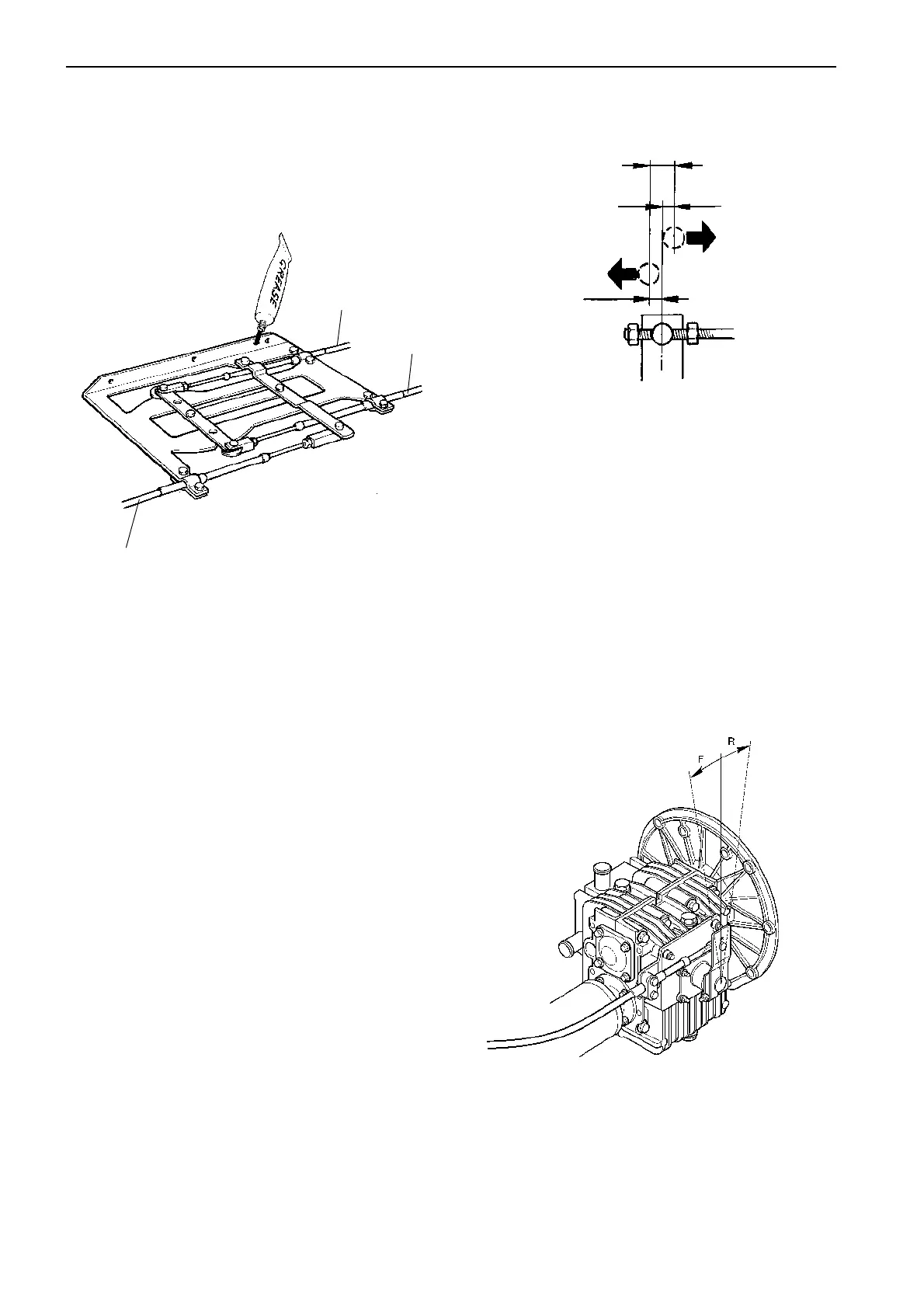

DS-unit, gear shift
If two controls are connected to one reverse gear a
DS-unit must be installed.
Choose a suitable place for the DS-unit as close to
the reverse gear as possible. The DS-unit can be
mounted vertical, horizontal or up side down. Horizon-
tal is prefered.
A
0.5xA
0.5xA
Install the swivel and lock nut onto the cable. Pull
out the cable out of the conduit and push it in as far
as possible in order to check the axial clearance of
the cable (A). Then pull it out again to the half of this
length, adjust the swivel to its correct position and
attach it to the outer pivot hole. Fix the swivel in its
final position on the gear-shift lever with the lock
nuts, the washer and the cotter pin. Tighten the lock
nuts.
Reverse gear type MS25L
Right hand
rotation
Left hand
rotation
1
2
3
1. Connection to reverse gear/engine
2. Connection to control 1
3. Connection to control 2
