124
Power take-off
Extra V-belt pulleys
All engines
Maximum Power Take-off:
45 Nm (33 lbf.ft.) total load
15 Nm (11 lbf. ft.)/belt groove

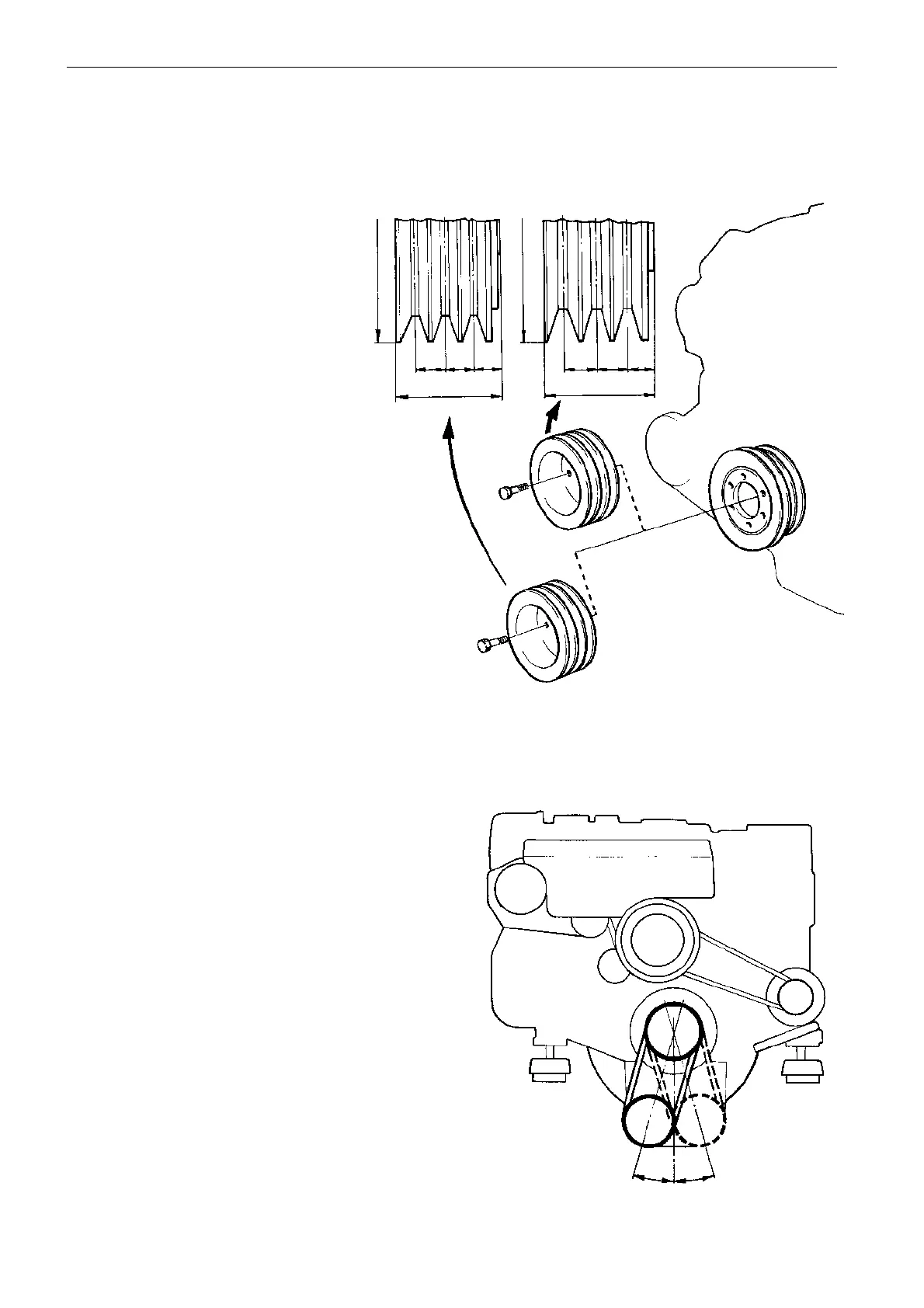

Power Take-off positions, KAMD43/44, KAMD300
The KAMD engines are more sensitive to additional
load on the crankshaft in an upward direction.
Therefore the only allowed position for additional
equipment driven from a crankshaft mounted pulley is
as shown on the picture.
Resultant force from belt (belts): ± 15° from the ver-
tical line.
Maximal torque extra V-belt pulley: 45 Nm (33lbf ft).
The Volvo Penta universal bracket must be modified
locally to be used for these engines.
Dimensions in mm (in)
Belt pulley
3 x type B
Belt pulley
3 x type HC50
19 1916 16
Diam. 165 (6.5)
16 16
60 (2.4)
66 (2.6)
Diam. 165 (6.5)
15° 15°
The most common way to add additional equipment,
such as hydraulic pumps, water pumps, refrigerators,
compressors, etc. is to use an additional pulley on the
crankshaft. The equipment must be mounted on the
engine, as otherwise the belt tension will vary due to
the engine movements.
The Universal bracket, see page 127, is suitable to
use for this type of installations.
