Maintenance and service
Removing the bulb holder
All bulbs in the rear lamp cluster can be
replaced from inside the cargo compartment
1. Switch off all lights and turn the ignition
key to position 0.
2. Remove the hatches in the left/right
panels to access the bulbs.
These bulbs are placed in a common bulb
holder.
1. Disconnect the connector from the bulb
holder.
2. Press the catches together and pull out
the holder.
3. Replace the bulb.
4. Press the connector back into position.
Replacing rear bulbs
5. Press the bulb holder into place.
Reinstall the cover.

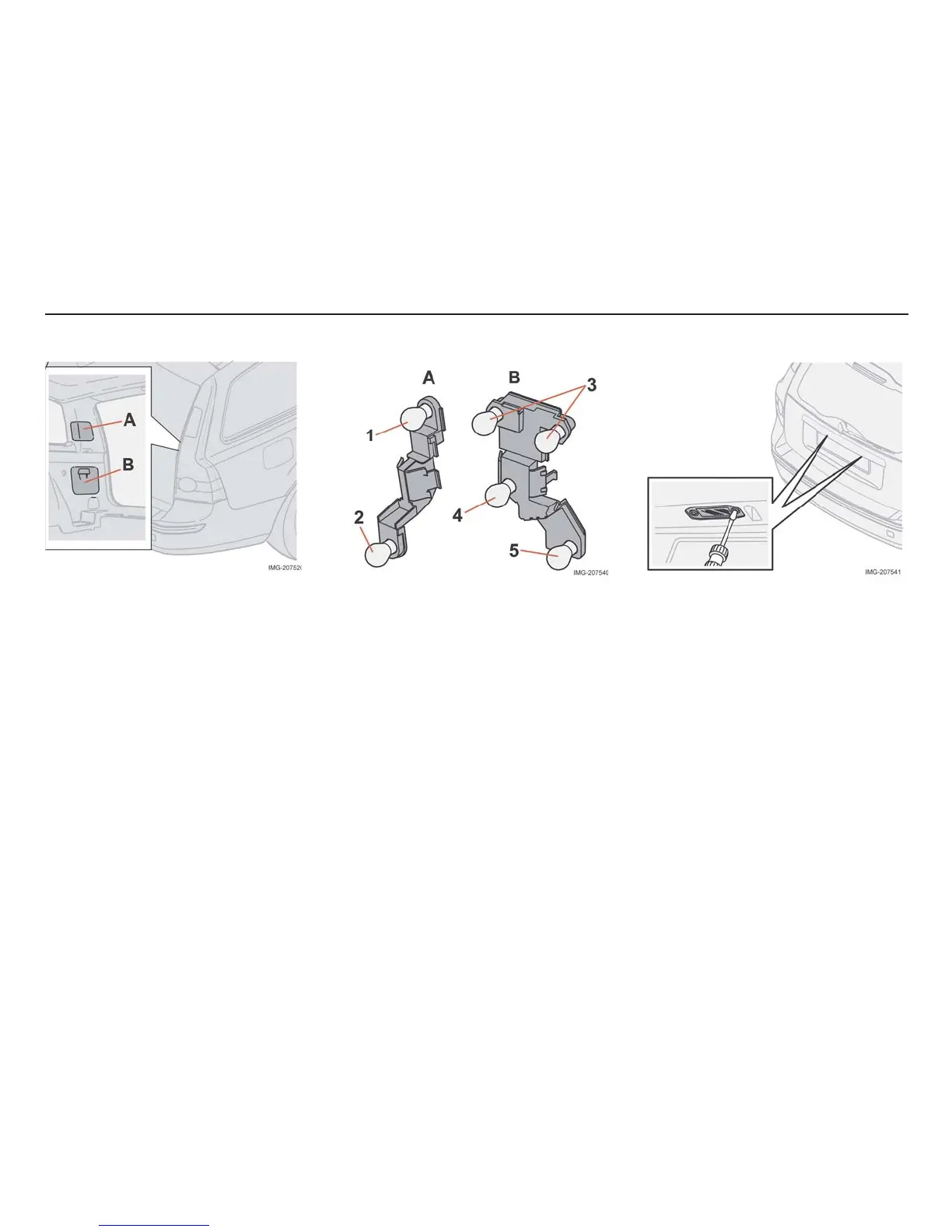

Location of bulbs in the rear
lamp cluster
1. Brake light P21W LL
BA15s
2. Position/parking lamps P5W LL
BAY15d
3. Direction indicator PY21W
LL
4. Rear fog lamp (one side) P21W LL
BA15s
5. Reversing lamp P21W LL
BA15s
High-level brake light
These bulbs are of a special type. It is
recommended that these are replaced by a
Volvo workshop.
Number plate lighting
Replacing bulb
1. Switch off all lights and turn the ignition
key to position 0.
2. Remove the screw using a screwdriver.
3. Carefully detach the entire lamp housing
and pull it out. Turn the connector
anticlockwise and pull out the bulb.
4. Replace the bulb.
5. Refit the contact and turn clockwise.
6. Refit the entire lamp housing and screw
it into place.
