34
Instruments and controls
1. Speedometer
2. Direction indicators, left
3. Warning symbol
4. Information display
The display presents information and
warning messages, outside temperature
and clock. When the temperature is
between +2 °C and –5 °C, a snowflake
symbol is shown in the display. This
symbol serves as a warning for slippery
road surfaces. When the car has been
stationary, the outside temperature
gauge may display a higher reading than
the actual temperature.

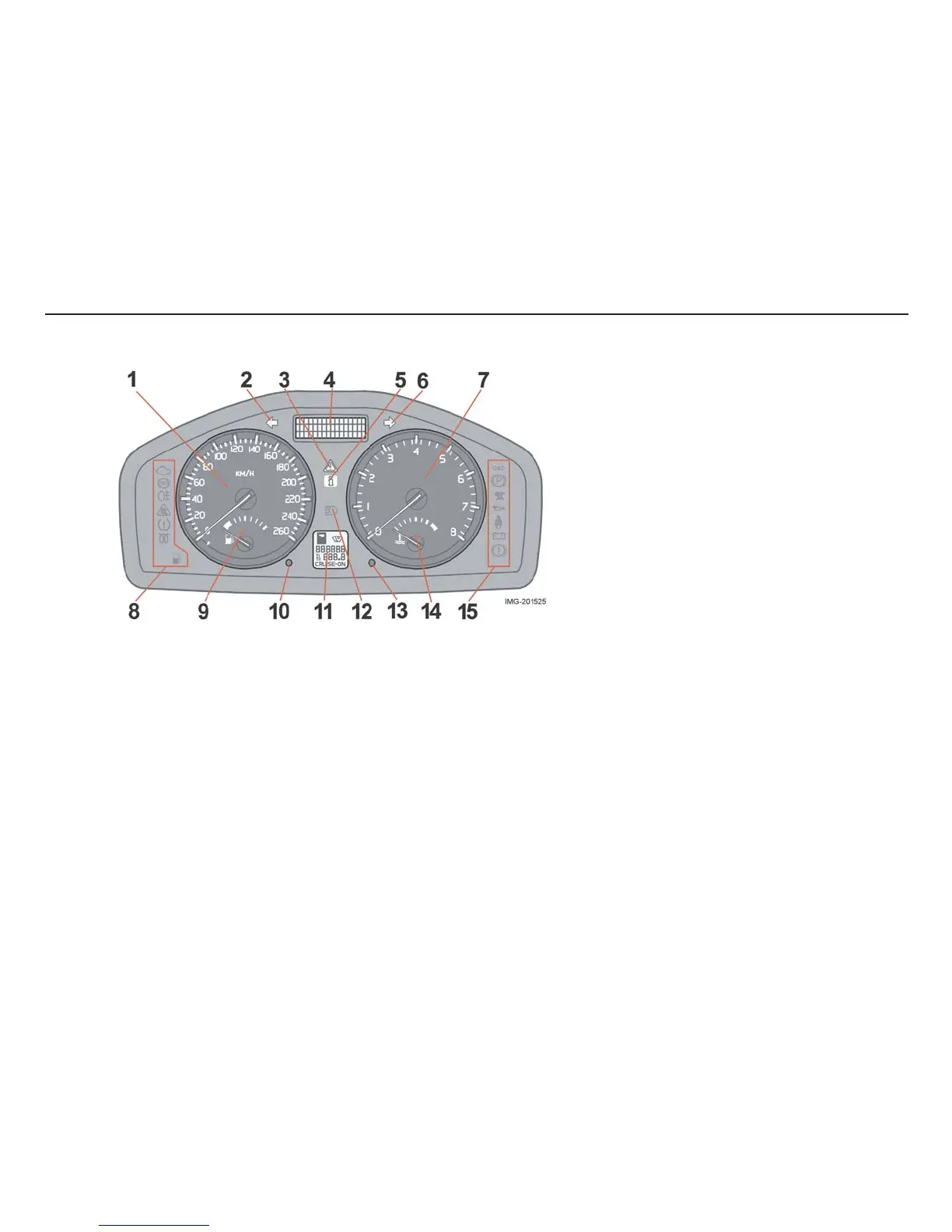

Combined instrument panel
5. Information symbol
6. Direction indicators, right
7. Tachometer
Indicates engine speed in thousands of
revolutions per minute (RPM). Do not
allow the needle of the tachometer to
enter the red field.
8. Check and warning symbols
9. Fuel gauge
10. Button for the trip odometer
Used to measure short distances. Briefly
pressing the button switches between
the two trip odometers T1 and T2. A long
press (more than 2 seconds) resets the
activated trip odometer.
11. Display
Displays the gear positions for automatic
gearbox, rain sensor, trip and odometer
and cruise control.
12. Main beam indication
13. Button for the clock
Turn the button to set the time.
14. Temperature gauge
The temperature of the engine cooling
system. If the temperature is abnormally
high and the needle enters the red zone,
a message is shown in the display. Bear
in mind that extra lamps in front of the air
intake reduce the cooling capacity at
high outside temperatures and high
engine loads.
15. Check and warning symbols
