WAGNER EPG-SPRINT XE User Manual

30
EPG-SPRINT XE
P_01745
I
O
OPERATING MANUAL
VERSION 09/2017 ORDER NUMBER DOC2354913

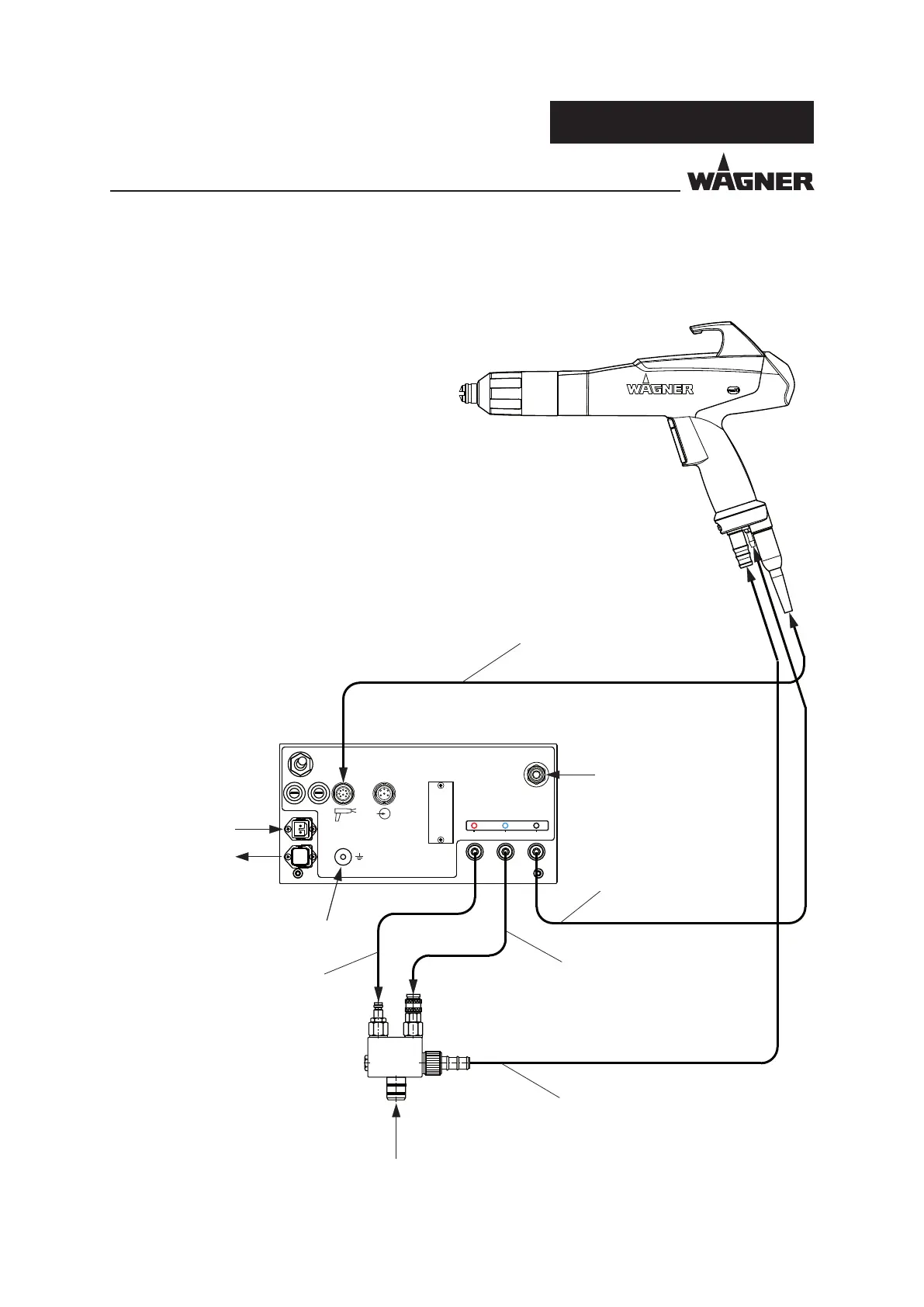

6.4 CONNECTING THE MANUAL GUN
Mains input
terminal
Grounding cable to the signal ground
e.g., from the powder tank
Compressed air main
supply
(0.6-0.8 MPa; 6-8 bar;
87-116 psi)
Hose diameter:
8 mm; 0.315 inch
Powder injector
Dosing air, blue
Feed air, red
Powder feed, transparent
Atomizing or Tribo air,
transparent
Electrical connection cable
Corona or Tribo spray gun
EPG-SPRINT XE
Mains output
terminal
Vibrator motor
