OPERATING MANUAL
VERSION 09/2017 ORDER NUMBER DOC2354913
7.7.4 SETTING THE HIGH VOLTAGE
Above the "High voltage" button 27 is the "High-voltage" bar graph display 1. When the
control unit is in the ready position, this display shows the set point as a dot and, when
high voltage is switched on, it shows the actual value as a bar.
The high voltage can be adjusted between 10-100 kV as described above. If this value is
further reduced from a value of 10 kV, the word "o" appears in the LED display 19 to signal
that the high voltage is deactivated. The high-voltage generation is not therefore activated
when the powder feed is switched on.
Procedure:

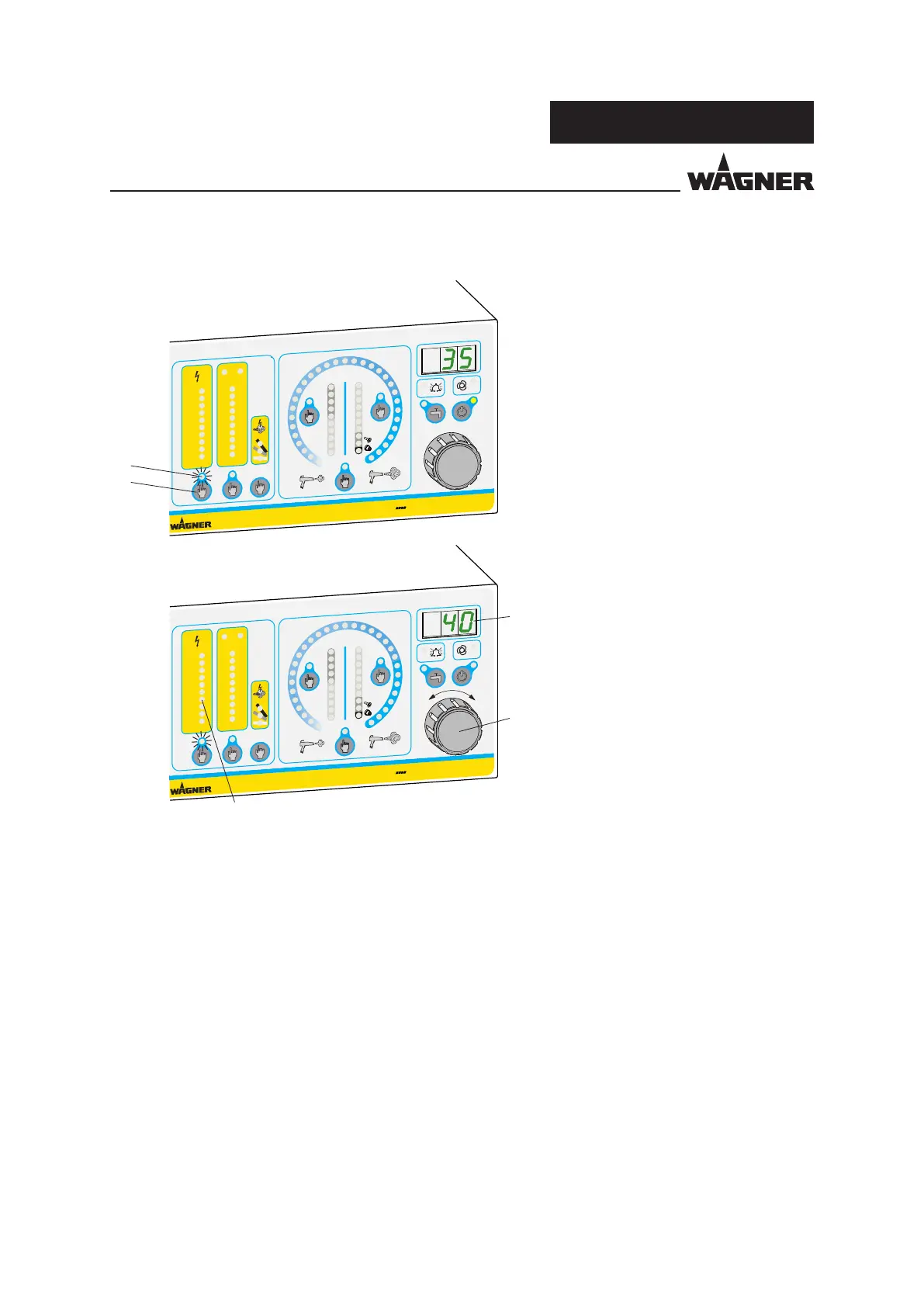

1. Press the "High-voltage" button 27
to adjust the high voltage.
The yellow LED 28 indicates that
high voltage is selected.
2. The high voltage can now be set
using the universal control dial
controller 24 between 10 kV and
100 kV with a resolution of 1 kV. The
value is shown in the LED display
19.
