WAGNER EPG-SPRINT XE User Manual

31
EPG-SPRINT XE
P_02658
I
O
OPERATING MANUAL
VERSION 09/2017 ORDER NUMBER DOC2354913

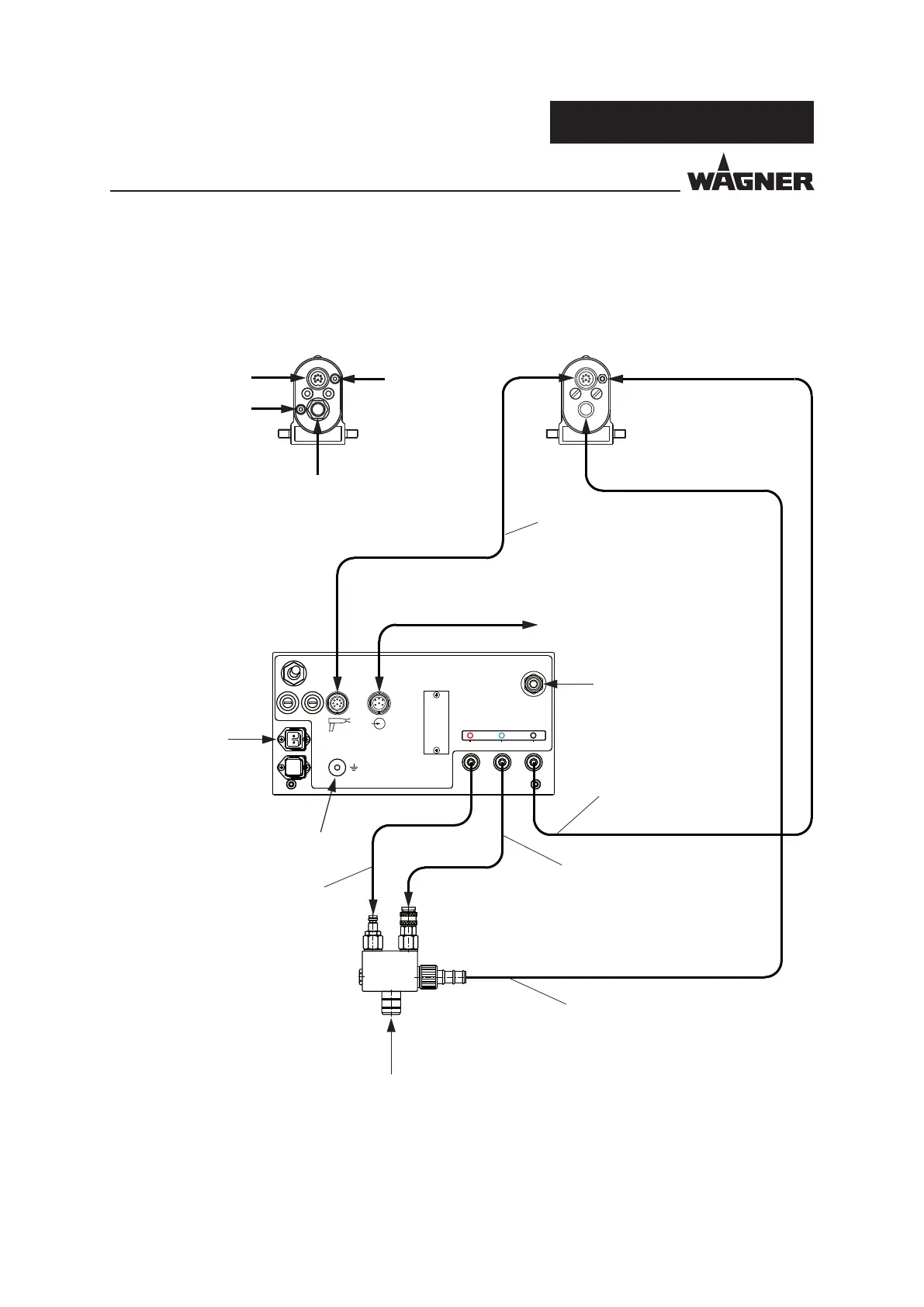

6.5 CONNECTING THE AUTOMATIC GUN
Tribo spray gun* Corona spray gun
Mains input
terminal
Grounding cable to the signal ground
e.g., from the powder
tank
Compressed air main supply
(0.6-0.8 MPa; 6-8 bar;
87-116 psi)
Hose diameter:
8 mm; 0.315 inch
Powder injector
Dosing air, blue
Feed air, red
Powder feed, transparent
Atomizing or Tribo air,
transparent
Electrical connection cable
EPG-SPRINT XE
Electrical connection
Tribo air
Atomizing air
Powder hose connection
Start/Stop input
* A Y distributor is needed to divide the dierent types of air (order No.: 9990149)
